Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL2230EEF140SWITCH PUSHBUTTON DPDT 0.1A 30V |
3,757 |
|
Datasheet | TL2230 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
TL2230OAF140SWITCH PUSHBUTTON DPDT 0.1A 30V |
1,969 |
|
Datasheet | TL2230 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
PBH4UOANAGXSWITCH PUSH 4PDT 0.1A 30V |
1,564 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
TL2201EEYASWITCH PUSH DPDT 0.1A 30V |
5,074 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
TL2201OAZASWITCH PUSH DPDT 0.1A 30V |
3,469 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

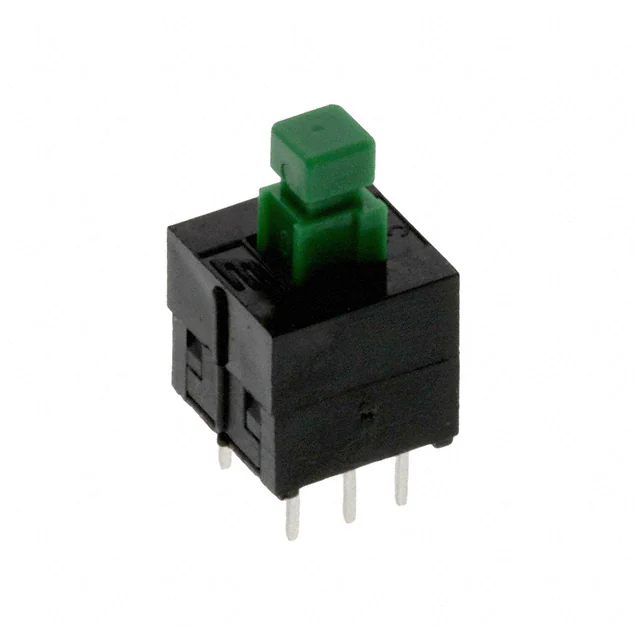

TL2201OAYASWITCH PUSH DPDT 0.1A 30V |
1,755 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
LC2255EENPTAGBLKSWITCH PUSHBUTTON DPDT 0.3A 30V |
3,816 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
TL2201EEYBSWITCH PUSH DPDT 0.1A 30V |
2,581 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

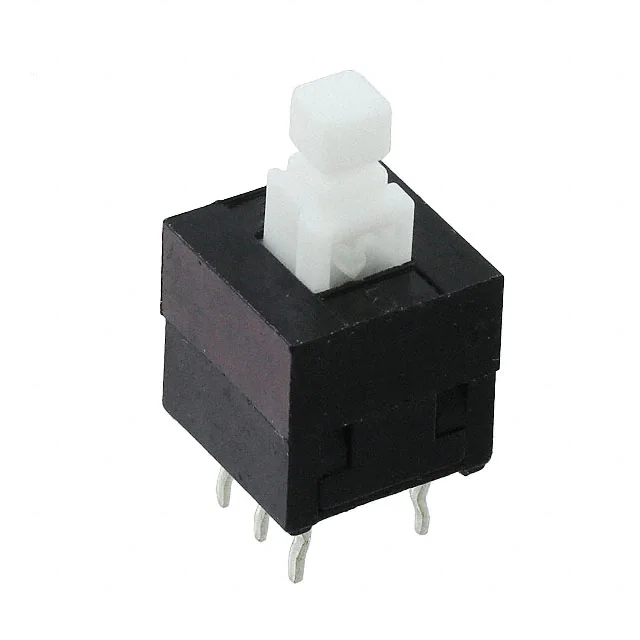

TL2201EEZBSWITCH PUSH DPDT 0.1A 30V |
2,124 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
LC1258EENPSWITCH PUSHBUTTON SPDT 0.3A 30V |
1,971 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
