Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PR142C1011-117SWITCH PUSHBUTTON DPST 16A 125V |
1,554 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Red | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|

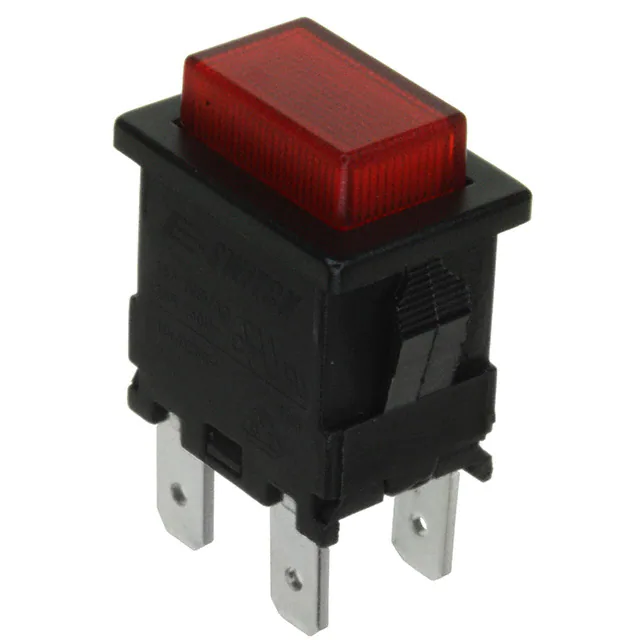

PB1973CBLKRILEF1SWITCH PUSH SPST 15A 250V |
684 |
|
Datasheet | PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
|
RP3502MAGRNSWITCH PUSH SPST-NO 3A 120V |
3,369 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
PB300DTQSWITCH PUSHBUTTON SPDT 0.3A 28V |
5,145 |
|
Datasheet | PB300 | Bulk | Active | Through Hole | Standard | SPDT | Off-Mom-Mom | 300mA (DC) | - | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 95°C |
|
LP4EE1PBATGSWITCH PUSH DPDT 0.1A 30V |
1,320 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
LP4OA1PBCTRSWITCH PUSH DPDT 0.1A 30V |
1,830 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
800AWSP9M7QESWITCH PUSH SPST-NO 1A 120V |
3,957 |
|
Datasheet | 800A | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
LP1OA1AGSWITCH PUSH SPST-NO 0.1A 30V |
856 |
|
Datasheet | LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.2 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|
800SP9B6M2RESWITCH PUSH SPST-NO 0.4VA 20V |
1,076 |
|
Datasheet | 800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
WBL2UOAGYQR05BLKPWRSWITCH PUSH DPDT 30V |
1,269 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | - | DPDT | On-Mom | 300mA (DC) | - | 30 V | Round, Button, Domed | No Marking | Silver | LED, Green/Yellow | - | PC Pin | - | - | - | -20°C ~ 70°C |
