Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JN2UOANAGXSWITCH PUSH DPDT 0.1A 30V |
781 |
|
Datasheet | JN | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
PR141C1100SWITCH PUSH SPST 16A 125V |
2,820 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PS1024ALBLKSWITCH PUSH SPST-NO 3A 125V |
1,455 |
|
Datasheet | PS1024 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|
PS1024ALREDSWITCH PUSH SPST-NO 3A 125V |
335 |
|
Datasheet | PS1024 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|

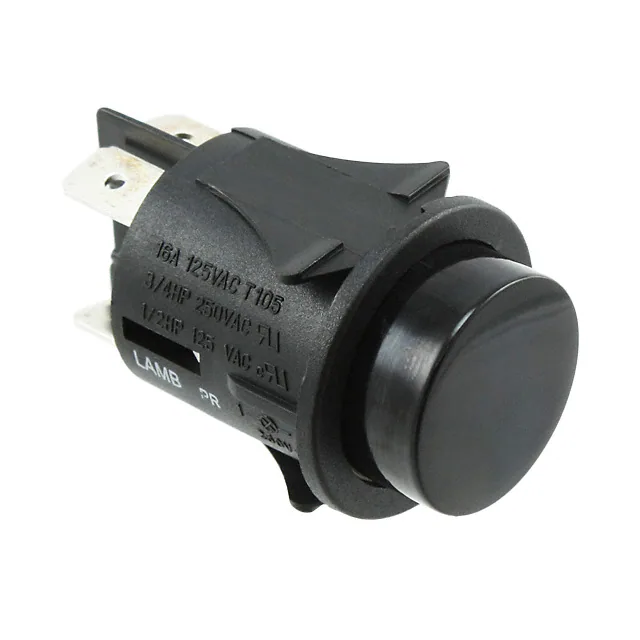

PR14EC1100SWITCH PUSH DPST-NO 16A 125V |
2,221 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PS1040ABLKSWITCH PUSH SPST-NO 3A 125V |
3,160 |
|
Datasheet | PS1040 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.40mm Dia | -20°C ~ 65°C |
|
PS1023BBLKSWITCH PUSHBUTTON SPST 3A 125V |
5,796 |
|
Datasheet | PS1023 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
PS1024AREDSWITCH PUSH SPST-NO 3A 125V |
5,200 |
|
Datasheet | PS1024 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|

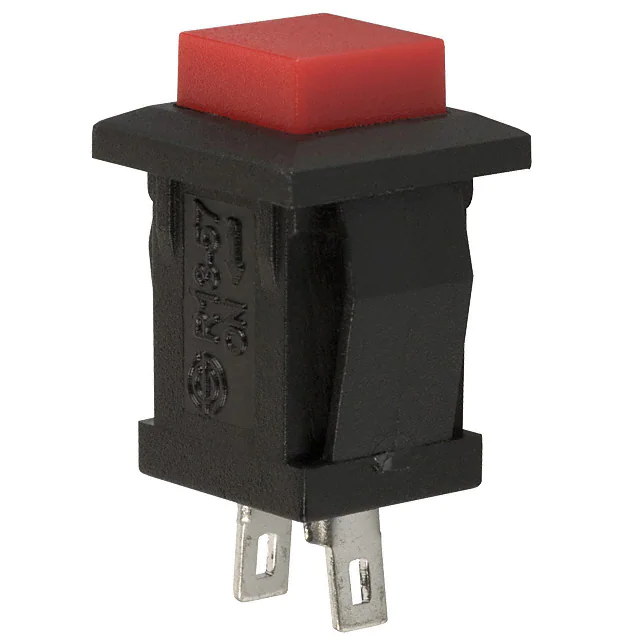

PS1057AREDSWITCH PUSH SPST-NO 1A 125V |
1,311 |
|
Datasheet | PS1057 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 12.60mm x 11.30mm | -20°C ~ 65°C |
|

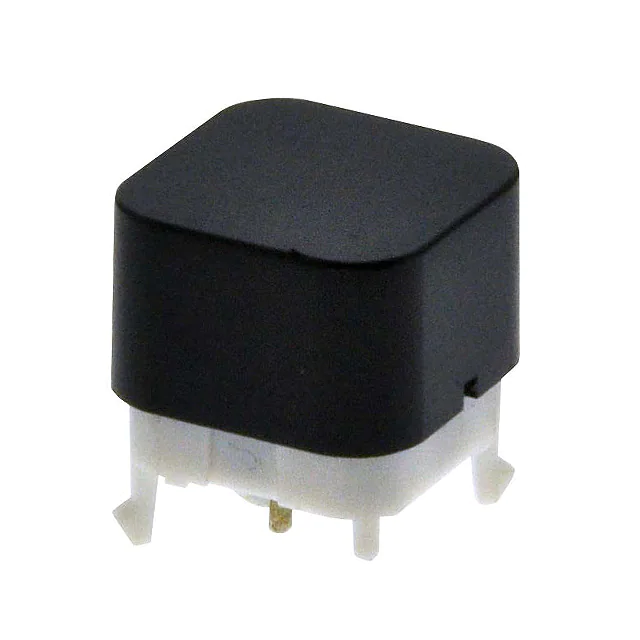

PB300STQSWITCH PUSH SPST-NO 30MA 28V |
8,944 |
|
Datasheet | PB300 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 30mA (DC) | - | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 95°C |
