Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC1258OANPSWITCH PUSHBUTTON SPDT 0.3A 30V |
1,771 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

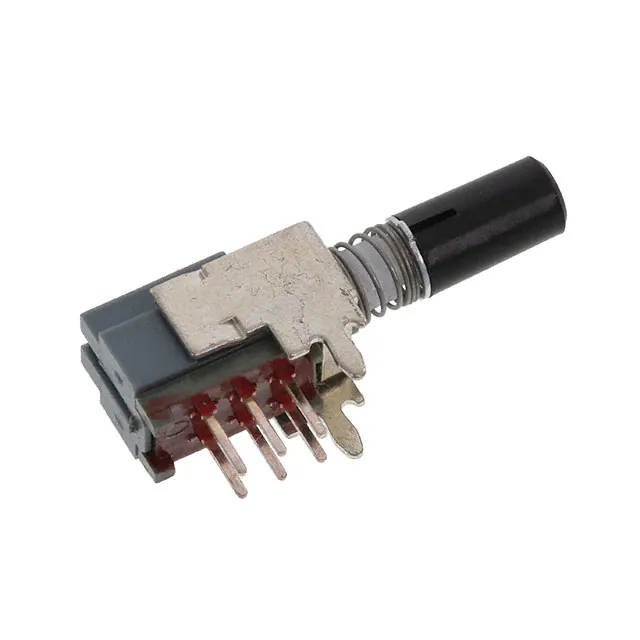

PBH2UEEKZXNAG1RBLKSWITCH PUSH DPDT 0.1A 30V |
961 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
LC2259EENPSWITCH PUSH DPDT 0.3A 30V |
2,561 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

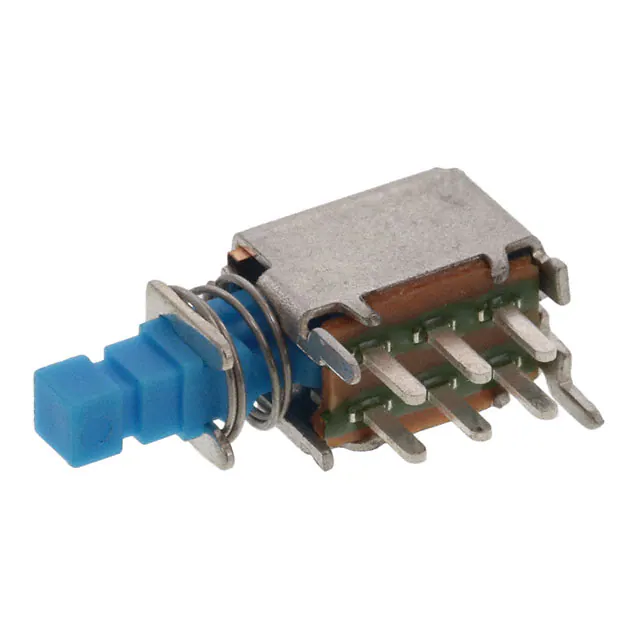

LC2255EENPNYLON6/6SWITCH PUSH DPDT 0.3A 30V |
1,757 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

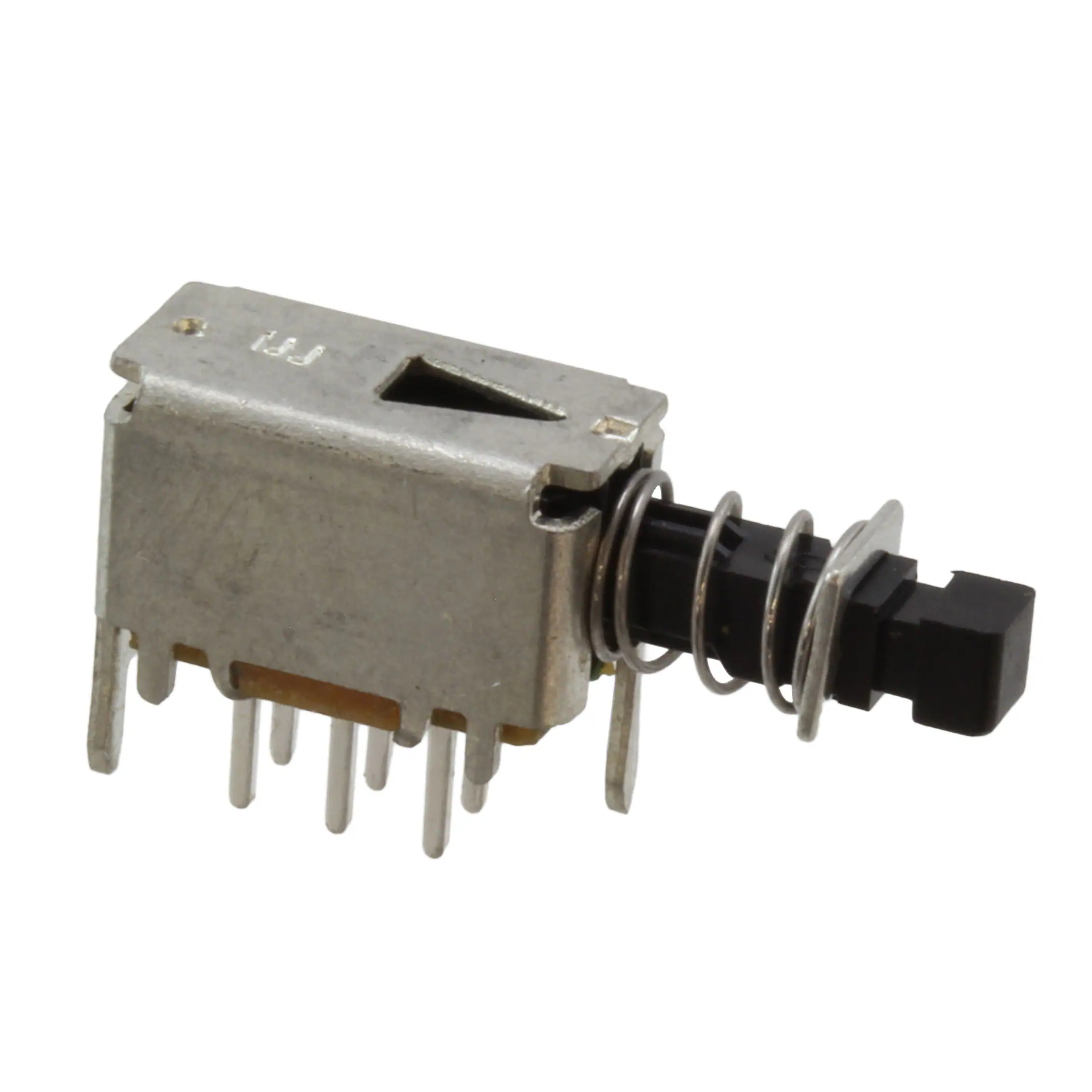

LC2259OANPSWITCH PUSH DPDT 0.3A 30V |
181 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
TL2285OASWITCH PUSH DPDT 0.1A 30V |
5,516 |
|
Datasheet | TL2285 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

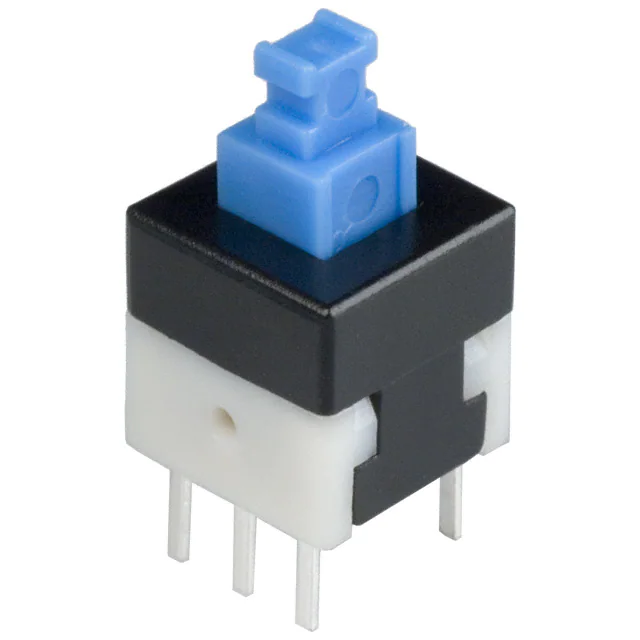

TL2285EESWITCH PUSH DPDT 0.1A 30V |
3,260 |
|
Datasheet | TL2285 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
LC2255EESPSWITCH PUSH DPDT 0.3A 30V |
760 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
PBH6UEENAG1DBLKSWITCH PUSH 6PDT 0.1A 30V |
1,604 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PBH4UEEKZXNAG1SBLKSWITCH PUSH 4PDT 0.1A 30V |
235 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
