Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP4OA1PBBTGSWITCH PUSH DPDT 0.1A 30V |
7,196 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
WBL2UEERGQR05CLRSWITCH PUSHBUTTON DPDT 300MA 30V |
1,060 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green/Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
RP3502MAREDSWITCH PUSH SPST-NO 3A 120V |
1,400 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
PB1973GBLKGILEF4SWITCH PUSHBUTTON DPST 15A 250V |
108 |
|
Datasheet | PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Green | Incandescent, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
|
PS1040BBLKSWITCH PUSHBUTTON SPST 3A 125V |
933 |
|
Datasheet | PS1040 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.40mm Dia | -20°C ~ 65°C |
|
800SP9B9M1QEHSWITCH PUSH SPST-NO 3A 120V |
738 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

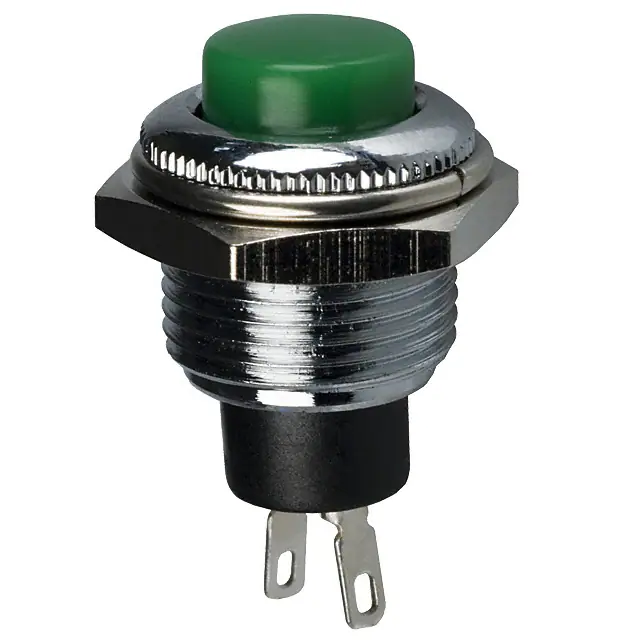

RP3502MBGRNSWITCH PUSH SPST-NC 3A 120V |
964 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|

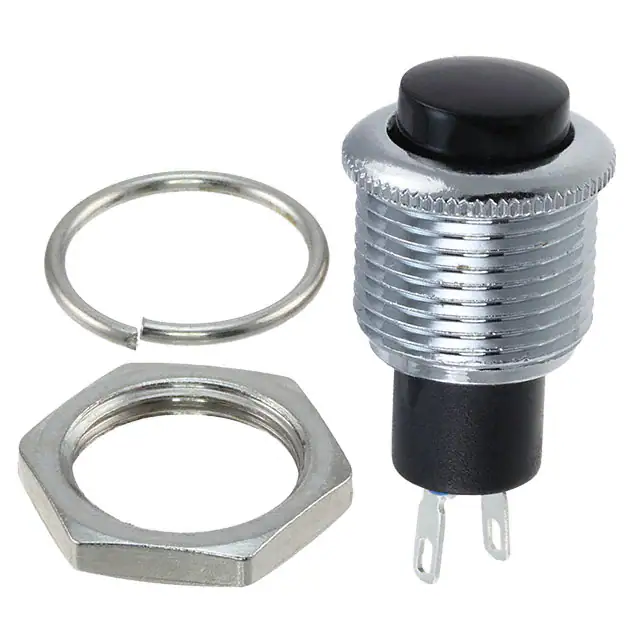

RP3502MBBLKSWITCH PUSH SPST-NC 3A 120V |
765 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
800AWSP9M2RESWITCH PUSH SPST-NO 0.4VA 20V |
142 |
|
Datasheet | 800A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
LP4OA1PBCTGSWITCH PUSH DPDT 0.1A 30V |
1,000 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
