DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V7812-500DC DC CONVERTER 12V 6W |
218 |
|
Datasheet | V78-500 | 3-SIP Module | Bulk | Obsolete | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
|
|
V7805-500DC DC CONVERTER 5V 2.5W |
1,903 |
|
Datasheet | V78-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - |
|

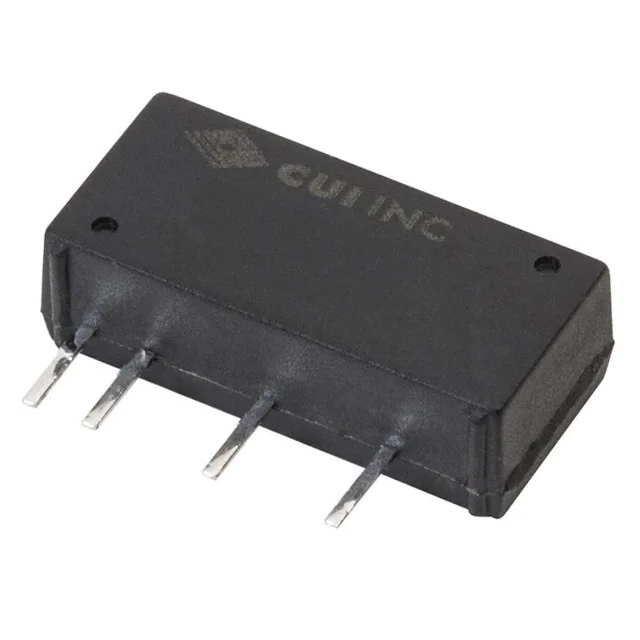

VIBLSD1-S5-S12-SIPDC DC CONVERTER 12V 1W |
415 |
|
Datasheet | VIBLSD1-SIP (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - |
|
VIBLSD1-S12-S12-SIPDC DC CONVERTER 12V 1W |
197 |
|
Datasheet | VIBLSD1-SIP (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 11.4V | 12.6V | 12V | - | - | - | 83mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - |
|
P7805-Q12-S1R5-SDC DC CONVERTER 1.5V 750MW |
3,907 |
|
Datasheet | P7805-S | 3-SIP Module | Bulk | Obsolete | Linear Regulator Replacement | 1 | 4.75V | 28V | 1.5V | - | - | - | 500mA | 750 mW | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | EN | 55024 |
|
|
PDM1-S3-S9-SDC DC CONVERTER 9V 1W |
1,446 |
|
Datasheet | PDM1-S (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 2.97V | 3.63V | 9V | - | - | - | 111mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 78% | - | - | Through Hole | - | - | - | - |
|
PEM1-S15-S15-SDC DC CONVERTER 15V 1W |
2,509 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A; 61000-3-2; 61000-3-3 |
|
PRD15-Q24-S15-N-DDC DC CONVERTER 15V 15W |
3,206 |
|
Datasheet | PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.1A | 15 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
VESD1-S12-D5-SIPDC DC CONVERTER +/-5V 1W |
3,504 |
|
Datasheet | VESD1-SIP (1W) | 7-SIP Module, 5 Leads | Bulk | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | - |
|
|
PEM1-S12-D5-SDC DC CONVERTER +/-5V 1W |
4,465 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
