DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEM1-S24-S12-SDC DC CONVERTER 12V 1W |
3,847 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 83mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
|
PHP1-S5-S5-M-TRDC DC CONVERTER 5V 1W |
4,358 |
|
Datasheet | PHP1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 75% | - | - | Surface Mount | - | - | - | - |
|
|
PHP1-S5-S15-M-TRDC DC CONVERTER 15V 1W |
1,251 |
|
Datasheet | PHP1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 76% | - | - | Surface Mount | - | - | - | - |
|

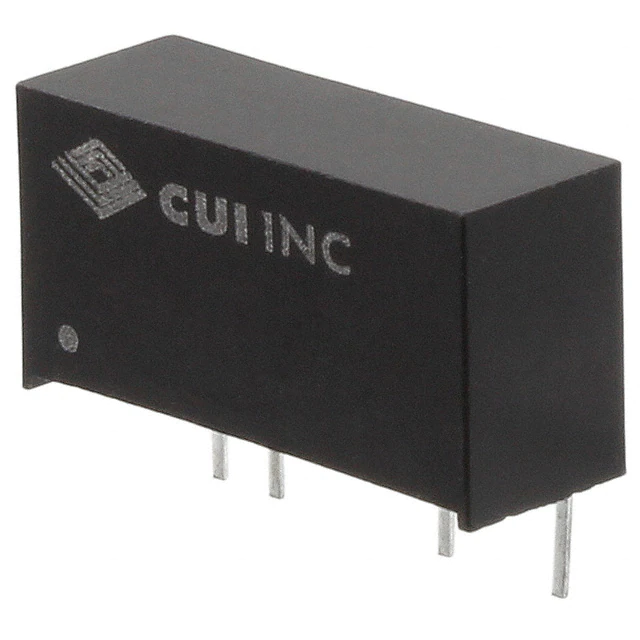

PEM2-S24-S24-SDC DC CONVERTER 24V 2W |
5,503 |
|
Datasheet | PEM2-S (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83.3mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 85% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PRD15-Q24-S12-N-DDC DC CONVERTER 12V 15W |
4,147 |
|
Datasheet | PRD15 (15W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 15 W | 2 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84.5% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
PDS1-S12-S15-DDC DC CONVERTER 15V 1W |
3,197 |
|
Datasheet | PDS1-D (1W) | 7-DIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
V7806-1500DC DC CONVERTER 6.5V 9.75W |
2,121 |
|
Datasheet | V78-1500 | 3-SIP Module | Bulk | Obsolete | Linear Regulator Replacement | 1 | 8V | 18V | 6.5V | - | - | - | 1.5A | 9.75 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
.jpg)
|
PDS1-S5-D15-MDC DC CONVERTER +/-15V 1W |
1,977 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Bulk | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 |
|
PDS2-S12-S5-MDC DC CONVERTER 5V 2W |
2,526 |
|
Datasheet | PDS2-M (2W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
PQP3-D12-S15-MDC DC CONVERTER 15V 3W |
220 |
|
Datasheet | PQP3-M | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE | - |
