DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gull Wing12.7mm.jpg)
|
PES1-S5-S24-M-TRDC DC CONVERTER 24V 1W |
460 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
PCN1-S12-D5-M-TRDC DC CONVERTER +/-5V 1W |
342 |
|
Datasheet | PCN1-M (1W) | 10-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 77% | - | - | Surface Mount | - | - | EN | 55032 Class A |
|
PESE2-S24-S24-M-TRDC-DC 3KV ISOLATED, 2 W, 21.6~26 |
197 |
|
Datasheet | PESE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 1.992 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | - | - | CE | 62368-1 |
|

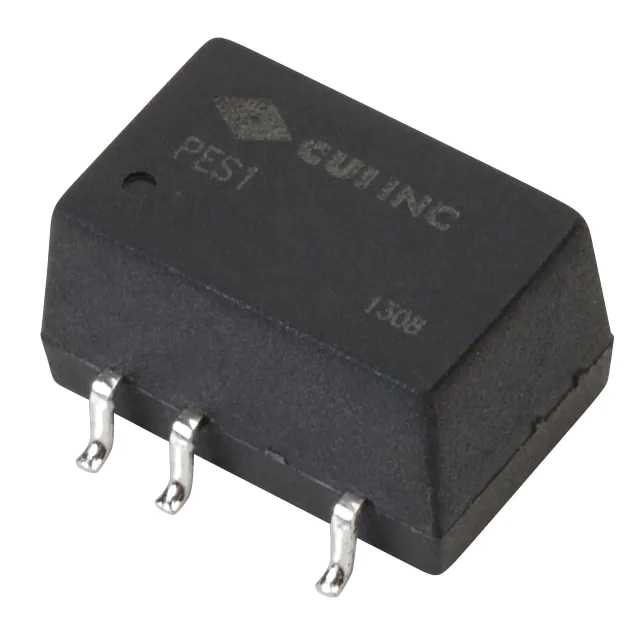

PES1-S12-S15-M-TRDC DC CONVERTER 15V 1W |
188 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PES1-S5-S12-M-TRDC DC CONVERTER 12V 1W |
1,294 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
PCN2-S5-S15-SDC DC CONVERTER 15V 2W |
4,726 |
|
Datasheet | PCN2-S (2W) | 6-SIP Module, 4 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 134mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 85% | - | - | Through Hole | - | - | EN | 55032 Class A |
|
PQQC3-D48-S24-OSDC-DC ISOLATED, 3 W, 36~75 VDC I |
193 |
|
Datasheet | PQQC3-OS (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 |
|
|
PQQC3-D48-S12-OSDC-DC ISOLATED, 3 W, 36~75 VDC I |
180 |
|
Datasheet | PQQC3-OS (3W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 |
|
|
PQQC6-D48-S12-OSDC-DC ISOLATED, 3 W, 36~75 VDC I |
266 |
|
Datasheet | PQQC6-OS (6W) | 8-SIP Module, 7 Leads | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | - | - | CE, EN, UKCA | 62368-1 |
|
PQP1-D12-S3-M-TRDC DC CONVERTER 3.3V 1W |
990 |
|
Datasheet | PQP1-M | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 75% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
