DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

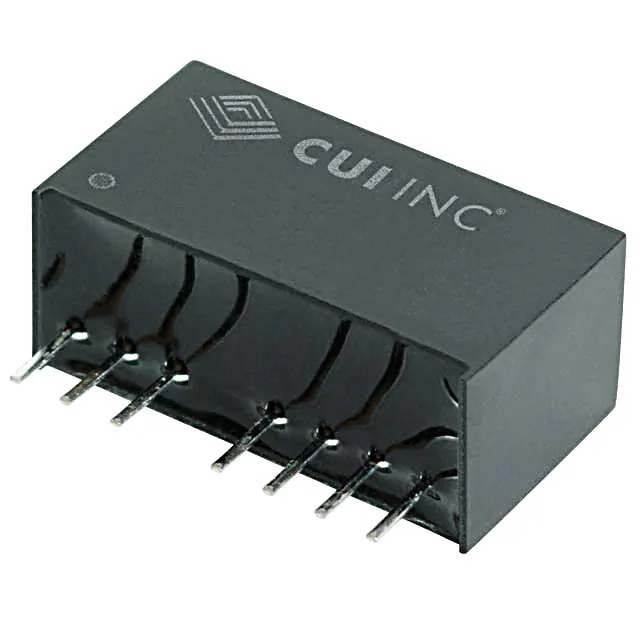

PQMC1-D12-D12-SDC DC CONVERTER +/-12V 1W |
3,455 |
|
Datasheet | PQMC1-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
|
PQMC1-D5-S5-SDC DC CONVERTER 5V 1W |
102 |
|
Datasheet | PQMC1-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 72% | - | - | Through Hole | - | Enable, Active Low | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 |
|
PDQ2-D48-S3-SDC DC CONVERTER 3.3V 2W |
4,697 |
|
Datasheet | PDQ2-S (2W) | 8-SIP Module, 7 Leads | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 500mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 100°C | 74% | - | - | Through Hole | - | Enable, Active Low | EN | 55032 Class A |
|

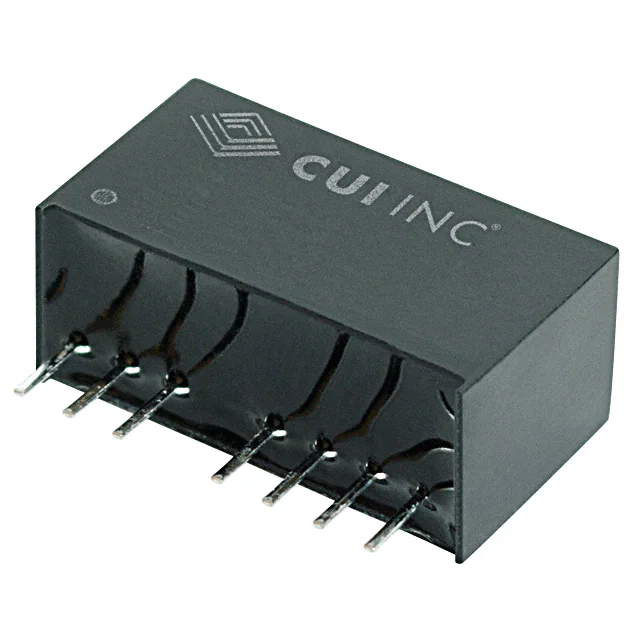

PRMC1-D12-S5-SDC DC CONVERTER 5V 1W |
3,098 |
|
Datasheet | PRMC1-S (1W) | 8-SIP Module, 7 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
P7805-Q24-S12-SDC DC CONVERTER 12V 6W |
2,619 |
|
Datasheet | P7805-S | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 15V | 32V | 12V | - | - | - | 500mA | 6 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
|
PQMC1-D12-D5-SDC DC CONVERTER +/-5V 1W |
199 |
|
Datasheet | PQMC1-S (1W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 77% | - | - | Through Hole | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
PQME3-D48-S5-M-TRDC DC CONVERTER 5V 3W |
394 |
|
Datasheet | PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - |
|
|
PQME3-D48-S24-M-TRDC DC CONVERTER 24V 3W |
255 |
|
Datasheet | PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | - | - | - | - |
|

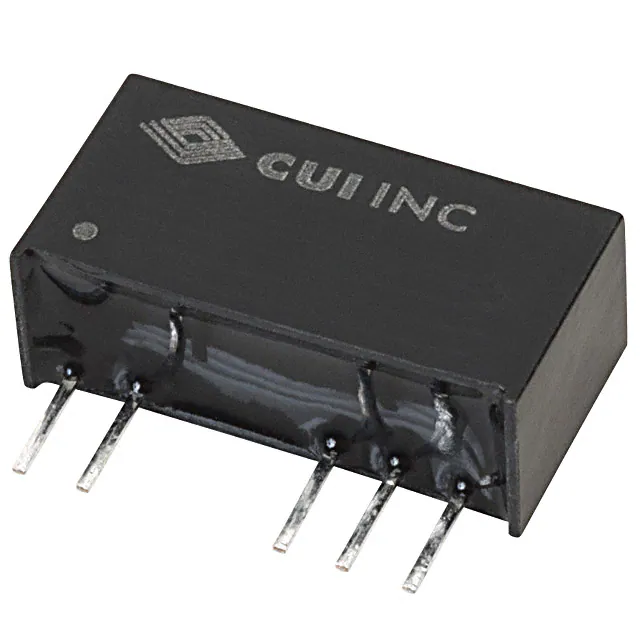

PEM2-S15-D15-SDC DC CONVERTER +/-15V 2W |
1,068 |
|
Datasheet | PEM2-S (2W) | 7-SIP Module, 5 Leads | Bulk | Not For New Designs | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 66.6mA, 66.6mA | 2 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 85% | - | - | Through Hole | - | - | - | - |
|
PQMC3-D12-S5-SDC DC CONVERTER 5V 3W |
1,351 |
|
Datasheet | PQMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 76% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
