DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VIBLSD1-S24-S5-DIPDC DC CONVERTER 5V 1W |
3,210 |
|
Datasheet | VIBLSD1-DIP (1W) | 14-DIP Module (300 mil, 5 Leads) | Bulk | Obsolete | Isolated Module | 1 | 22.8V | 25.2V | 5V | - | - | - | 150mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 70% | - | - | Through Hole | - | - | - | - |
|
VHS1-S12-S5-SIPDC DC CONVERTER 5V 1W |
1,376 |
|
Datasheet | VHS1-SIP (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | - | - | UL | 60950-1 |
|
|
VHS1-S5-S5-SIPDC DC CONVERTER 5V 1W |
1,073 |
|
Datasheet | VHS1-SIP (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6 kV | Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | CB Scheme, IEC, UL | 60950-1 |
|
V7805W-500RDC DC CONVERTER 5V 2.5W |
113 |
|
Datasheet | V78W-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 9V | 72V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole, Right Angle | - | - | - | - |
|
PRMC3-D24-D12-SDC DC CONVERTER +/-12V 3W |
278 |
|
Datasheet | PRMC3-S (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C | 83% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PQMC3-D48-S12-SDC DC CONVERTER 12V 3W |
1,533 |
|
Datasheet | PQMC3-S (3W) | 8-SIP Module, 7 Leads | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | Enable, Active Low | EN | 55024; 55032 Class A |
|
PQC20-48-S12-ODC-DC ISOLATED, 20 W, 36~75 VDC |
219 |
|
Datasheet | PQC20-O (20W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 60V | 12V | - | - | - | 1.667A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote Sense | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | Sixteenth Brick | - | - | 62368-1 |
|

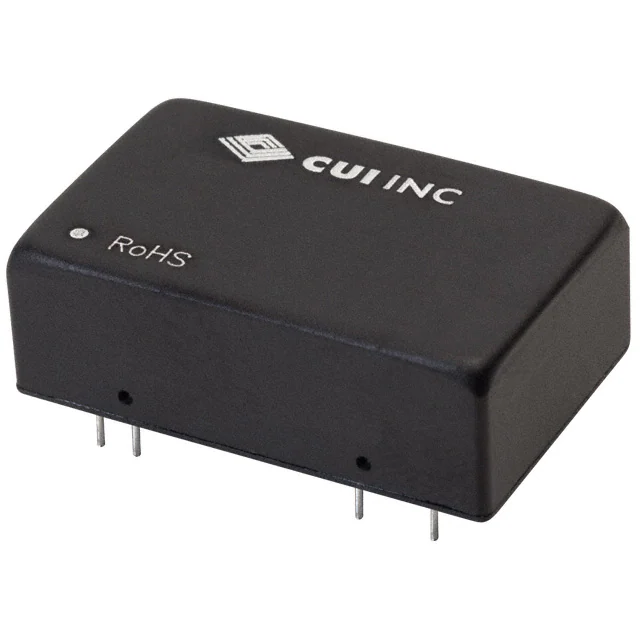

PUZ3-D12-D15-DDC DC CONVERTER +/-15V 3W |
244 |
|
Datasheet | PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PQME3-D48-S15-M-TRDC DC CONVERTER 15V 3W |
869 |
|
Datasheet | PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Surface Mount | - | - | - | - |
|
|
PQME3-D24-S5-M-TRDC DC CONVERTER 5V 3W |
424 |
|
Datasheet | PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
