DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDS1-S24-S3-DDC DC CONVERTER 3.3V 1W |
1,335 |
|
Datasheet | PDS1-D (1W) | 7-DIP Module, 4 Leads | Bulk | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 303mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | - | - |
|
PES1-S24-S9-M-TRDC DC CONVERTER 9V 1W |
1,045 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
PQP1-D24-S5-DDC DC CONVERTER 5V 1W |
510 |
|
Datasheet | PQP1-D | 8-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PQP1-D12-S24-M-TRDC DC CONVERTER 24V 1W |
330 |
|
Datasheet | PQP1-M | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
Gull Wing15.2mm.jpg)
|
PQM1-S5-S12-M-TRDC DC CONVERTER 12V 1W |
259 |
|
Datasheet | PQM1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.75V | 5.25V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 73% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
Gull Wing12.7mm.jpg)
|
PES1-S3-S3-M-TRDC DC CONVERTER 3.3V 1W |
351 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 73% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
PDQ10-Q48-D5-DDC DC CONVERTER +/-5V 10W |
2,845 |
|
Datasheet | PDQ10-D (10W) | 6-DIP Module | Bulk | Active | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 1A, 1A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84% | - | - | Through Hole | - | Enable, Active High | EN | 55032 Class A |
|
PDS2-S5-S3-M-TRDC DC CONVERTER 3.3V 2W |
378 |
|
Datasheet | PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 78% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
.jpg)
|
PDS1-S5-D24-M-TRDC DC CONVERTER +/-24V 1W |
1,959 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

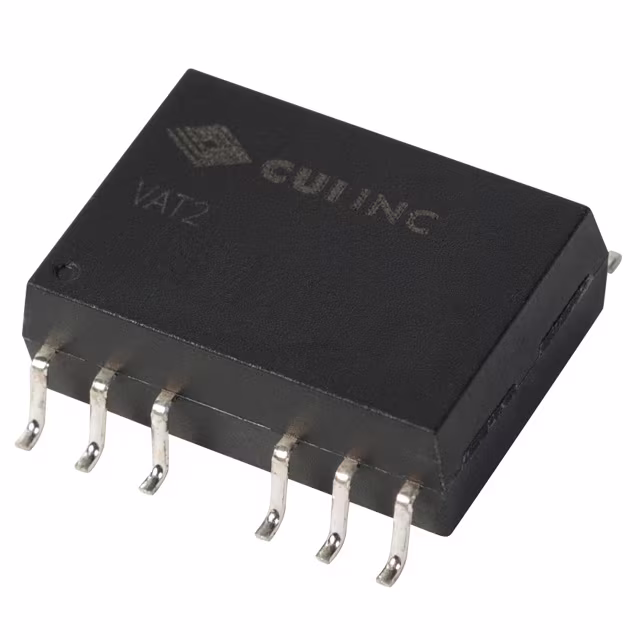

VAT2-S5-D12-SMT-TRDC DC CONVERTER +/-12V 2W |
269 |
|
Datasheet | VAT2-SMT (2W) | 14-SMD Module, 12 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 84% | - | - | Surface Mount | - | - | - | - |
