DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDSE2-S12-S9-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
255 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 1.998 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE | 62368-1 |
|
PESE1-S24-S5-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
285 |
|
Datasheet | PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S24-S24-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
252 |
|
Datasheet | PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1.008 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|

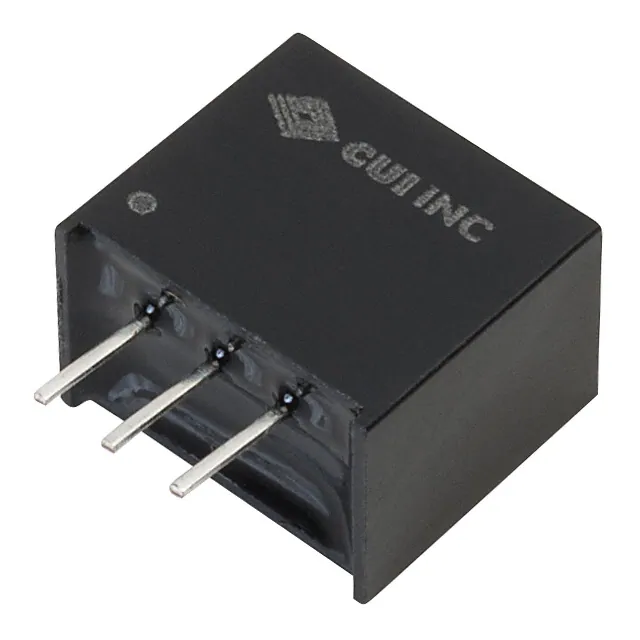

P7805-Q24-S5-SDC DC CONVERTER 5V 3W |
322 |
|
Datasheet | P7805-S | 3-SIP Module | Tube | Not For New Designs | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | EN | 55024; 55032 Class A |
|
PEM1-S24-D15-SDC DC CONVERTER +/-15V 1W |
115 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 79% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
Gull Wing15.2mm.jpg)
|
PES1-S5-D24-M-TRDC DC CONVERTER +/-24V 1W |
178 |
|
Datasheet | PES1-M (1W) | 8-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 24V | -24V | - | - | 21mA, 21mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PDS1-S24-S5-MDC DC CONVERTER 5V 1W |
333 |
|
Datasheet | PDS1-M (1W) | 8-SMD Module, 5 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
PRME1-S12-S5-M-TRDC-DC ISOLATED 3K, 1 W, 11.4~12. |
416 |
|
Datasheet | PRME1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | CE | 62368-1 |
|
VEFT1-S24-S5-SMT-TRDC DC CONVERTER 5V 1W |
2,915 |
|
Datasheet | VEFT1-SMT (1W) | 12-SMD Module, 10 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 79% | - | - | Surface Mount | - | - | - | - |
|
|
PDSE2-S24-S5-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
1,287 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE | 62368-1 |
