DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEM1-S5-D12-SDC DC CONVERTER +/-12V 1W |
994 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PRME1-S15-S5-MDC-DC ISOLATED 3K, 1 W, 14.25~15 |
135 |
|
Datasheet | PRME1-M (1W) | 10-SMD Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 1 | 14.25V | 15.75V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 85°C (With Derating) | 69% | - | - | Surface Mount | - | - | CE | 62368-1 |
|

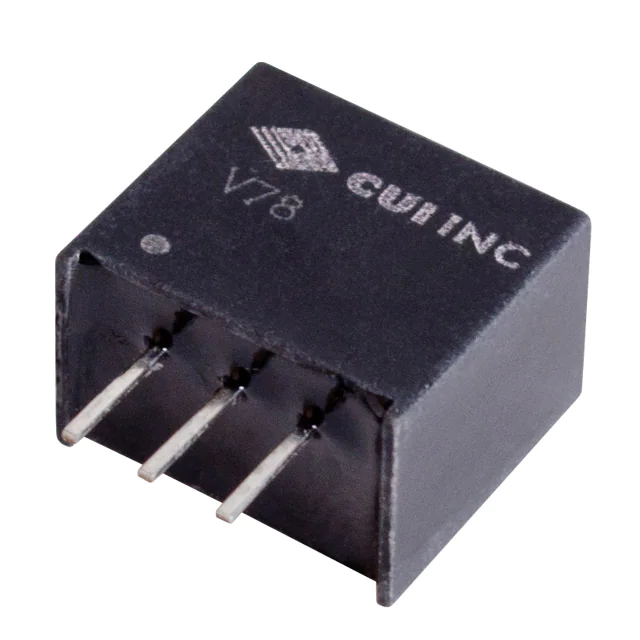

V7803-500DC DC CONVERTER 3.3V 1.65W |
708 |
|
Datasheet | V78-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 4.75V | 28V | 3.3V | - | - | - | 500mA | 1.65 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 90% | - | - | Through Hole | - | - | - | - |
|
PDSE2-S24-S12-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
328 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2.004 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | CE | 62368-1 |
|
|
PDSE2-S24-S9-M-TRDC-DC 1.5KV ISOLATED, 2 W, 21.6~ |
183 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 1.998 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE | 62368-1 |
.jpg)
|
PDS1-S12-D12-M-TRDC DC CONVERTER +/-12V 1W |
619 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S5-D12-M-TRDC DC CONVERTER +/-12V 1W |
270 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
|
PDSE2-S12-S12-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
755 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2.004 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | CE | 62368-1 |
|
|
PDSE2-S12-S15-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
530 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | CE | 62368-1 |
|
|
PDSE2-S12-S24-M-TRDC-DC 1.5KV ISOLATED, 2 W, 10.8~ |
423 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.992 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 85% | - | - | Surface Mount | - | - | CE | 62368-1 |
