Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

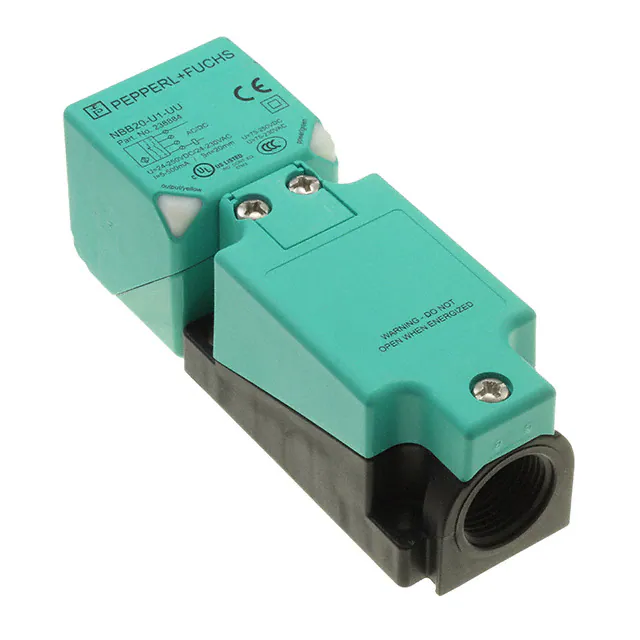

NBB20-U1-UUINDUCTIVE SEN 20MM NO/NC |
1,794 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | SCR-NC/NO, 2-Wire | - | Unshielded | Polyamide (PA) | 20 VAC ~ 253 VAC, 20 VDC ~ 300 VDC | - | -25°C ~ 85°C | IP67 | LED |
|
6GR6232-3AB00-PFULTRASONIC SEN 20-250MM PNP |
3,610 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Ultrasonic | 0.787" ~ 9.843" (20mm ~ 250mm) | PNP-NO, 4-Wire | 10Hz | Unshielded | Nickel-Plated Brass | 20V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
UB300-18GM40-E5-V1ULTRASONIC SEN 35-350MM ANALOG |
3,669 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Ultrasonic | 1.378" ~ 11.811" (35mm ~ 300mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NJ1.5-18GM-N-D-V1INDUCTIVE SEN 1.5MM NAMUR |
3,777 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.059" (1.5mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 85°C | IP67 | No Indicator |
|
UB500-30GM-E5-V15INDUCTIVE SEN 500.8MM PNP |
4,514 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Ultrasonic | 1.181" ~ 19.685" (30mm ~ 500mm) | PNP-NC/NO | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C (TA) | IP65 | LED |
|

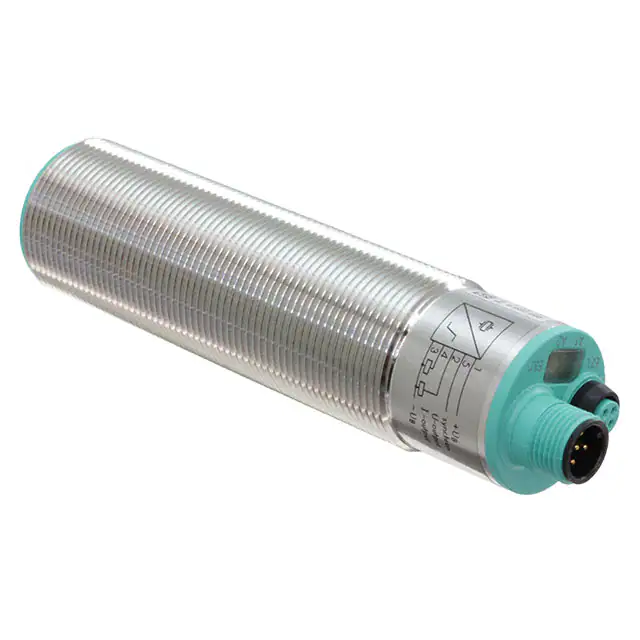

UCC1000-30GM-IUR2-V15ULTRASONIC SEN 80-1000MM ANALOG |
3,041 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Ultrasonic | 3.150" ~ 39.370" (80mm ~ 1000mm) | Analog Current and Voltage | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | 0°C ~ 70°C | IP65 | LED |
|
NBB5-18GM50-E0-V1INDUCTIVE SEN 5MM NPN |
3,968 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB2-6.5M30-E0INDUCTIVE SEN 2MM NPN |
4,139 |
|
Datasheet | - | Cylinder | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
NBB4-12GM50-E2-V1-MINDUCTIVE SEN 4MM NPN |
4,490 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Connector | -40°C ~ 85°C | IP68, IP69K | LED |
|
NBB2-8GM30-A2-V1INDUCTIVE SEN 2MM PNP |
1,850 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
