Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBN3-F31-E8-V1INDUCTIVE SEN 3MM PNP |
4,247 |
|
Datasheet | - | Flange Mount | Box | Active | Inductive | 0.118" (3mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP67 | LED |
|

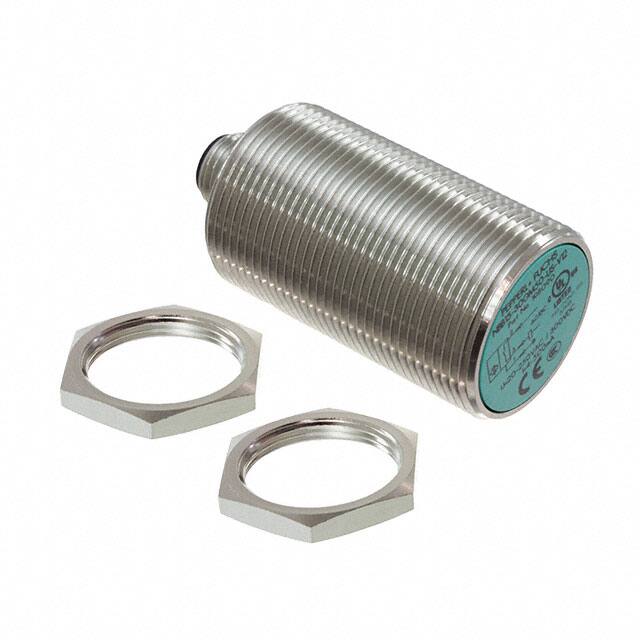

NBB15-30GM50-US-V12INDUCTIVE SEN 15MM NO |
1,616 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Connector | -25°C ~ 70°C | IP67 | LED |
|
NJ2-F-E02-1.025-V1INDUCTIVE SEN CYLINDER POSITION |
2,946 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | NPN/PNP-NO, 4-Wire | - | Unshielded | Zinc Die-Cast | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
3RX1550-PFULTRASONIC |
1,771 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
NBB1.5-8GM40-E0-V3INDUCTIVE SEN 1.5MM NPN |
2,994 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Obsolete | Inductive | 0.059" (1.5mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

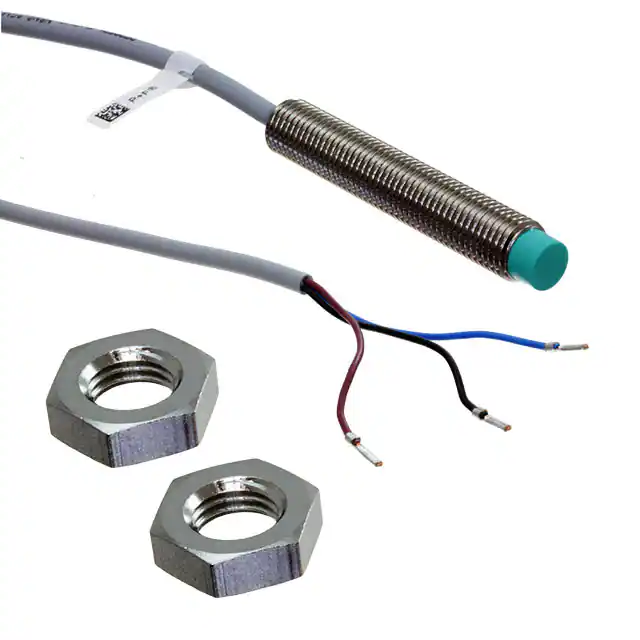

NBN2-8GM50-E0INDUCTIVE SEN 2MM NPN |
3,197 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Obsolete | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN5-F7-E2INDUCTIVE DC |
4,794 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN5-F7-E1INDUCTIVE DC |
2,934 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.197" (5mm) | NPN-NC, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

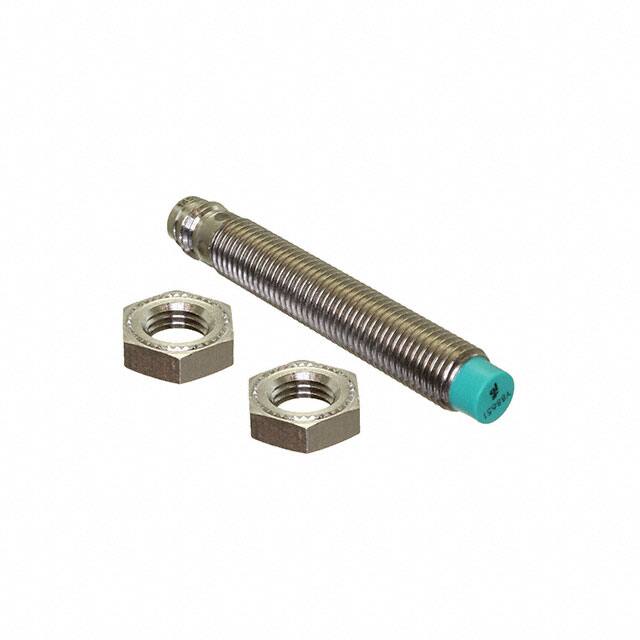

NBN3-8GM45-E2-V3INDUCTIVE SEN 3MM PNP |
1,133 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Obsolete | Inductive | 0.118" (3mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
|
SC3,5-G-N0INDUCTIVE NAMUR |
3,362 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.181" ~ 15.748" (30mm ~ 400mm) | NAMUR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 5V ~ 25V | Cable | -25°C ~ 100°C | IP67 | LED |
