Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

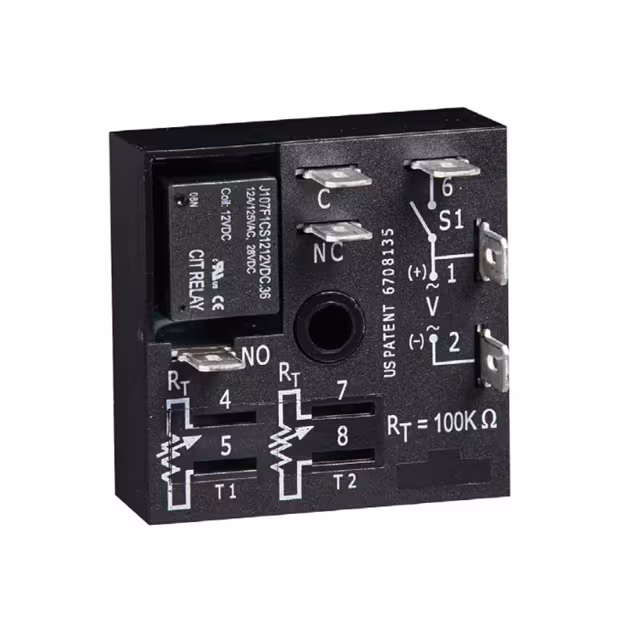

KRPD215S190SMBRELAY TIME DELAY 90SEC 10A 125V |
4,360 |
|
Datasheet | KRPD | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay, On-Delay | SPDT (1 Form C) | Fixed, 5 Sec, 90 Sec | 10A @ 125VAC | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

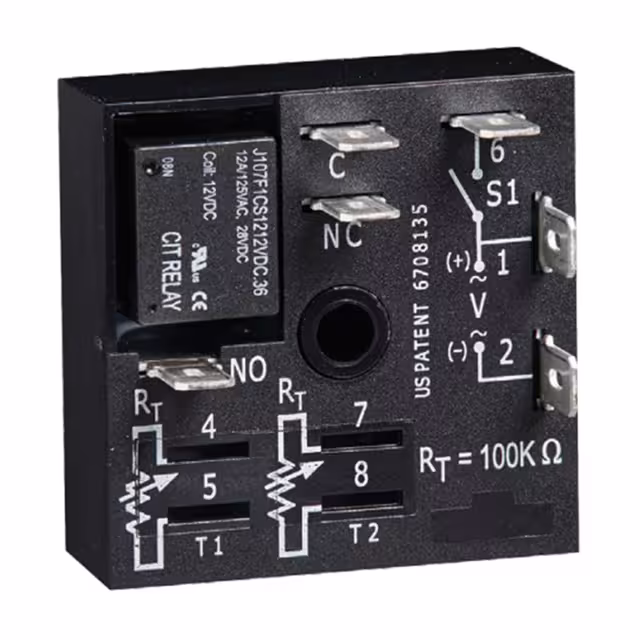

KRPD417M113MRXDRELAY TIME DELAY 13MIN 10A 125V |
3,045 |
|
Datasheet | KRPD | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | Fixed, 7 Min, 13 Min | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

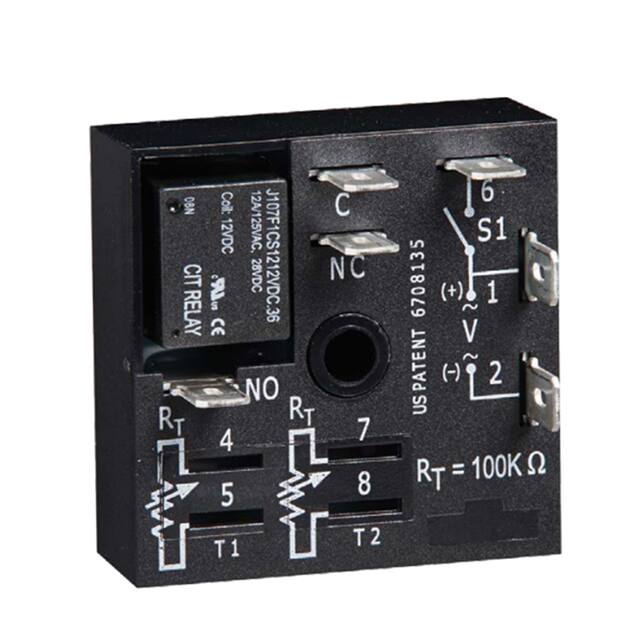

KRPDA175S130SMIRELAY TIME DELAY 75SEC 10A 125V |
1,142 |
|
Datasheet | KRPD | Bulk | Active | Chassis Mount | Mechanical Relay | Interval, On-Delay | SPDT (1 Form C) | Fixed, 75 Sec, 30 Sec | 10A @ 125VAC | 24 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
THD7421ARELAY TIME DELAY 100SEC CHAS MT |
3,579 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
THD7621CRELAY TIME DELAY 100SEC CHAS MT |
1,467 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TRB120A3X600RELAY TIME DELAY 600SEC 10A 120V |
1,004 |
|
Datasheet | TRB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 7 Sec ~ 600 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
|
TRB120A2Y30RELAY TIME DELAY 30SEC 10A 120V |
3,884 |
|
Datasheet | TRB | Bulk | Active | Socketable | Mechanical Relay | On-Delay | SPDT (1 Form C) | 1 Sec ~ 30 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
ESDR125A5PRELAY TIME DELAY 1000MIN CHAS MT |
3,337 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 10 Min ~ 1000 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR423A3RELAY TIME DELAY 10MIN CHAS MT |
3,592 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

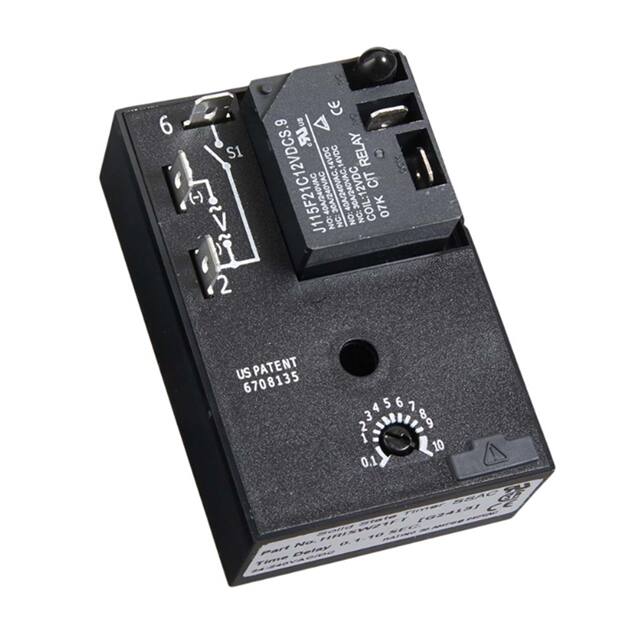

HRISW21FTRELAY TIME DELAY 10SEC 30A 125V |
2,948 |
|
Datasheet | HRIS | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay, On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 30A @ 125/240VAC | 24 ~ 240VAC, 24 ~ 110VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
