Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TH1C415RELAY TIME DELAY 5SEC CHAS MT |
4,176 |
|
Datasheet | TH1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 5 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TRS24D7Z10RELAY TIME DELAY 10SEC 10A 120V |
4,894 |
|
Datasheet | TRS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 120/240VAC | 24VDC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
THD2C420RELAY TIME DELAY 10SEC CHAS MT |
3,658 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
THD2C423RELAY TIME DELAY 10MIN CHAS MT |
3,678 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
THD2C433RELAY TIME DELAY 10MIN CHAS MT |
2,415 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
THD2C620RELAY TIME DELAY 10SEC CHAS MT |
4,043 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
THD2C633RELAY TIME DELAY 10MIN CHAS MT |
3,971 |
|
Datasheet | THD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
THC421CRELAY TIME DELAY 3SEC CHAS MT |
2,724 |
|
Datasheet | THC | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 3 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
THS422CRELAY TIME DELAY 60SEC CHAS MT |
4,710 |
|
Datasheet | THS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

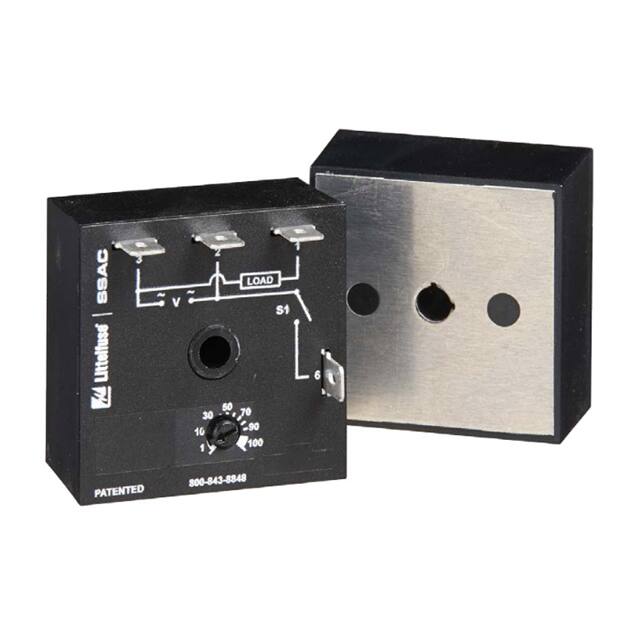

THDB434CRELAY TIME DELAY 100MIN CHAS MT |
2,376 |
|
Datasheet | THDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Min ~ 100 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
