Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERDM4130SRELAY TIME DELAY 30SEC 10A 120V |
2,563 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | Fixed, 30 Sec | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
ERDM422RELAY TIME DELAY 5SEC 10A 120V |
3,148 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 5 Sec | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
|
ERDM425RELAY TIME DELAY 30SEC 10A 120V |
3,052 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.3 Sec ~ 30 Sec | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
|
ERDM427RELAY TIME DELAY 5MIN 10A 120V |
4,818 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Min ~ 5 Min | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
ERDI436RELAY TIME DELAY 60SEC 10A 120V |
1,932 |
|
Datasheet | ERDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | DPDT (2 Form C) | 0.6 Sec ~ 60 Sec | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
|
ERDM4210RELAY TIME DELAY 100MIN 10A 120V |
2,207 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Min ~ 100 Min | 10A @ 120/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
TH1B633RELAY TIME DELAY 180SEC CHAS MT |
4,240 |
|
Datasheet | TH1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 2 Sec ~ 180 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

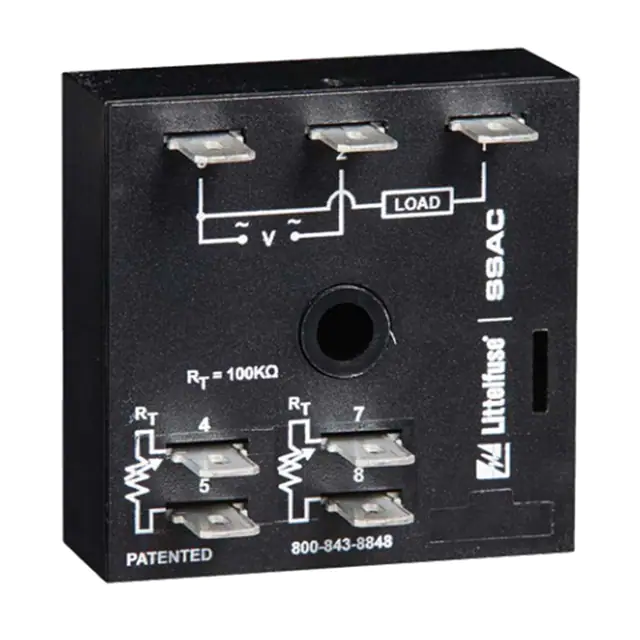

KSDR42A4RELAY TIME DELAY 1000SEC CHAS MT |
1,580 |
|
Datasheet | KSDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 10 Sec ~ 1000 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
TRS120A2Y10RELAY TIME DELAY 10SEC 10A 120V |
4,203 |
|
Datasheet | TRS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|

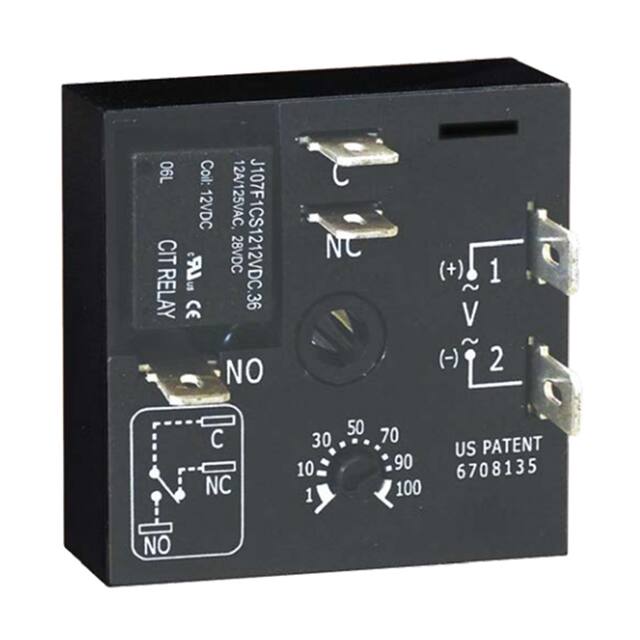

KRD3421ARELAY TIME DELAY 100SEC 10A 125V |
4,366 |
|
Datasheet | KRD3 | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
