Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDUBH3002ARELAY TIME DELAY 102.3MIN CHAS |
2,370 |
|
Datasheet | TDUB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.1 Min ~ 102.3 Min | - | 12 ~ 24VDC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
TDUIL3001ARELAY TIME DELAY 102.3SEC CHAS |
1,463 |
|
Datasheet | TDUIL | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Sec ~ 102.3 Sec | - | 100 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TDUIL3002ARELAY TIME DELAY 102.3SEC CHAS |
3,206 |
|
Datasheet | TDUI | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Sec ~ 102.3 Sec | - | 12 ~ 24VDC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

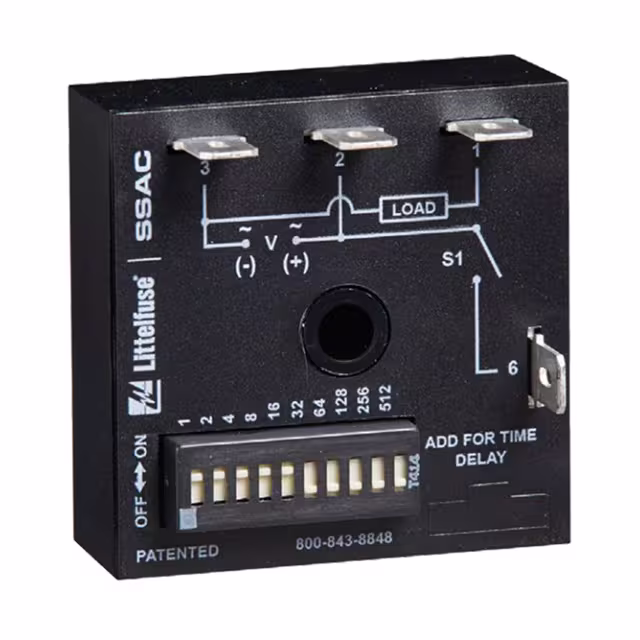

TDUS3001ARELAY TIME DELAY 1023SEC CHAS MT |
2,643 |
|
Datasheet | TDUS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 1 Sec ~ 1023 Sec | - | 100 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TDUSH3001ARELAY TIME DELAY 102.3MIN CHAS |
2,595 |
|
Datasheet | TDUS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Min ~ 102.3 Min | - | 100 ~ 240VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|
|
TDUSL3000ARELAY TIME DELAY 102.3SEC CHAS |
4,049 |
|
Datasheet | TDUS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 102.3 Sec | - | 24 ~ 120VAC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

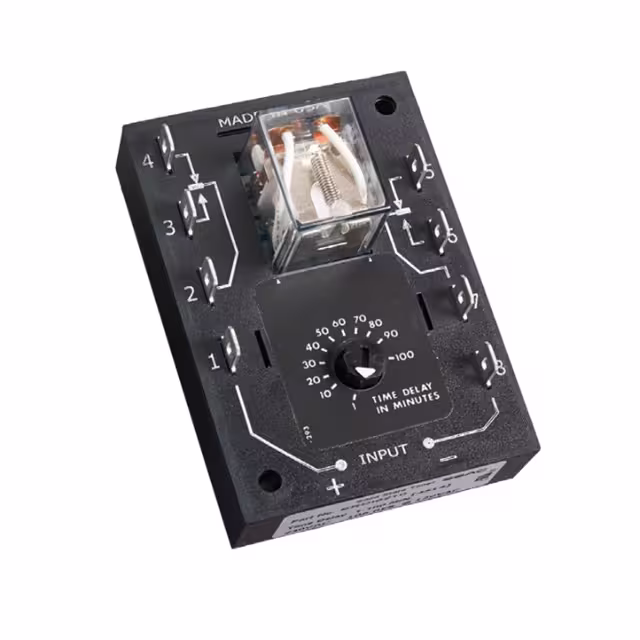

ERDI6210RELAY TIME DELAY 180SEC 10A 240V |
3,461 |
|
Datasheet | ERDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | DPDT (2 Form C) | 2 Sec ~ 180 Sec | 10A @ 240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
ERDM123RELAY TIME DELAY 10SEC 10A 120V |
4,158 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 120/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
|
ERDM126RELAY TIME DELAY 60SEC 10A 120V |
1,406 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.6 Sec ~ 60 Sec | 10A @ 120/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
|
|
ERDM128RELAY TIME DELAY 10MIN 10A 120V |
1,556 |
|
Datasheet | ERDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Min ~ 10 Min | 10A @ 120/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Hand Dial | Input Voltage | - | - |
