Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HRDM415MRELAY TIME DELAY 5MIN 30A 125V |
2,026 |
|
Datasheet | HRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | Fixed, 5 Min | 30A @ 125/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
HRDR322B2RRELAY TIME DEL 1000SEC 30A 125V |
3,679 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 10 Sec ~ 1000 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
HRDR330A0RRELAY TIME DELAY 10SEC 30A 125V |
3,320 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
|
HRDR411SB30MRRELAY TIME DELAY 30MIN 30A 125V |
4,560 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | Fixed, 30 Min | 30A @ 125/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
HRDS421RELAY TIME DELAY 100SEC 30A 125V |
3,843 |
|
Datasheet | HRDS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
TRB120A4Y120RELAY TIME DELAY 120SEC 10A 120V |
2,140 |
|
Datasheet | TRB | Bulk | Obsolete | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 2 Sec ~ 120 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
TRM120A2Y180RELAY TIME DELAY 180SEC 10A 120V |
2,236 |
|
Datasheet | TRM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 2 Sec ~ 180 Sec | 10A @ 120/240VAC | 120VAC | - | Hand Dial | Input Voltage | - | - |
|
TRM120A2Y120RELAY TIME DELAY 120SEC 10A 120V |
3,381 |
|
Datasheet | TRM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 2 Sec ~ 120 Sec | 10A @ 120/240VAC | 120VAC | - | Hand Dial | Input Voltage | - | - |
|

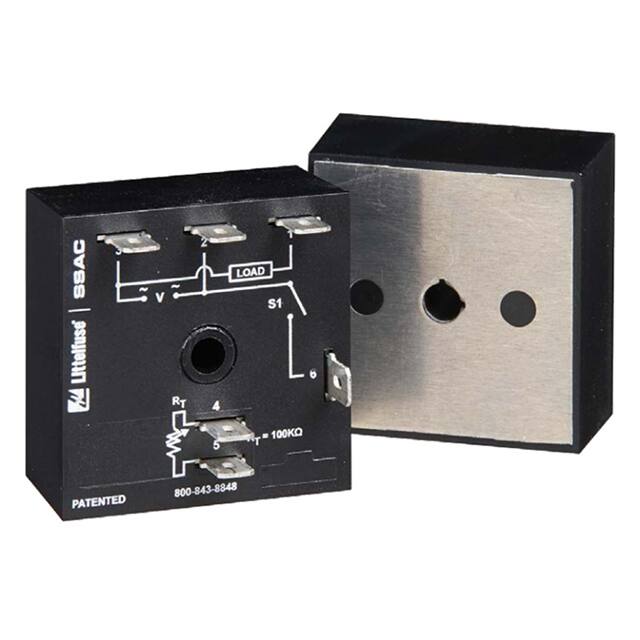

THS422BRELAY TIME DELAY 60SEC CHAS MT |
2,836 |
|
Datasheet | THS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TRS120A2X300RELAY TIME DELAY 300SEC 10A 120V |
1,919 |
|
Datasheet | TRS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 7 Sec ~ 300 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
