Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

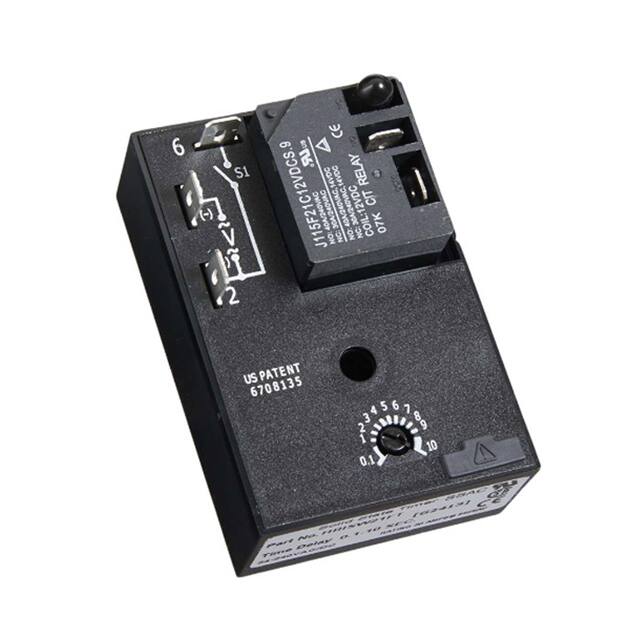

HRISW25BRELAY TIME DELAY 100MIN 30A 125V |
2,968 |
|
Datasheet | HRIS | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 30A @ 125/240VAC | 24 ~ 240VAC, 24 ~ 110VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
HRISW27IRELAY TIME DELAY 10HR 30A 125V |
4,996 |
|
Datasheet | HRIS | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Hrs ~ 10 Hrs | 30A @ 125/240VAC | 24 ~ 240VAC, 24 ~ 110VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
TDMH120ALRELAY TIME DEL 10230SEC 10A 120V |
1,238 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

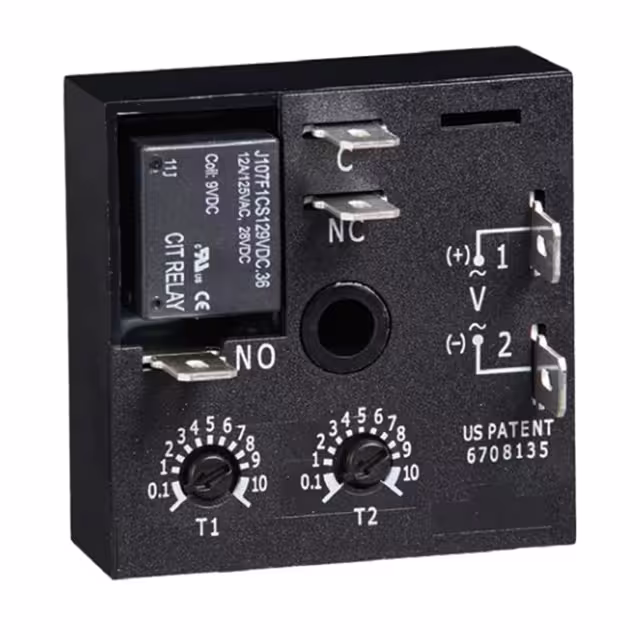

KRDR420A3RELAY TIME DELAY 10SEC 10A 125V |
1,778 |
|
Datasheet | KRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

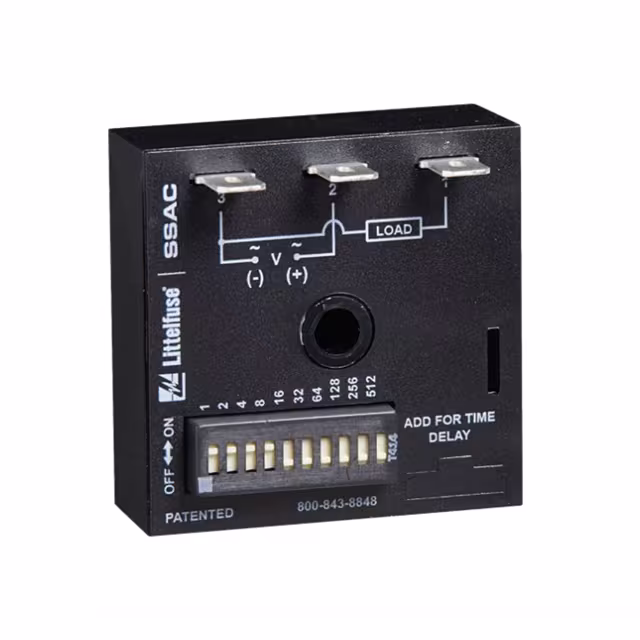

TDUIH3002ARELAY TIME DELAY 102.3MIN CHAS |
2,614 |
|
Datasheet | TDUIH | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Min ~ 102.3 Min | - | 12 ~ 24VDC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TDMH24ALRELAY TIME DEL 10230SEC 10A 120V |
3,760 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 10 Sec ~ 10230 Sec | 10A @ 120/240VAC | 24VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDML110DLRELAY TIME DEL 102.3SEC 10A 120V |
4,857 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 110VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
|
TDML24DLRELAY TIME DEL 102.3SEC 10A 120V |
4,006 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 24 ~ 28VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

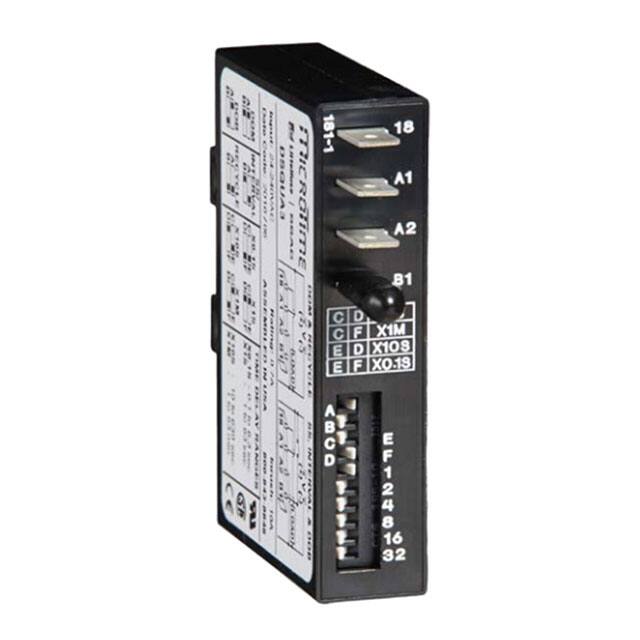

DSQUD3RELAY TIME DELAY 63MIN CHAS MT |
1,618 |
|
Datasheet | DSQU | Bulk | Active | Chassis Mount | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | 0.1 Sec ~ 63 Min | - | 9 ~ 110VDC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

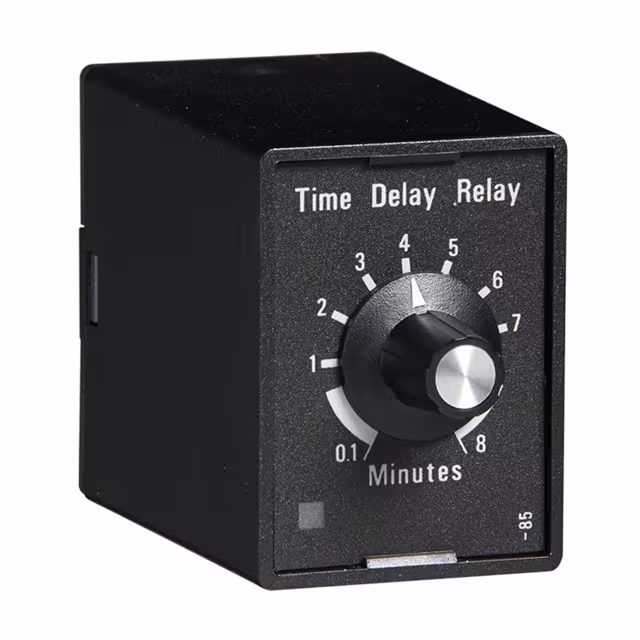

PRS65RELAY TIME DELAY 480SEC 10A 400V |
1,091 |
|
Datasheet | PRS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 7 Sec ~ 480 Sec | 10A @ 400VAC | 230VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
