Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

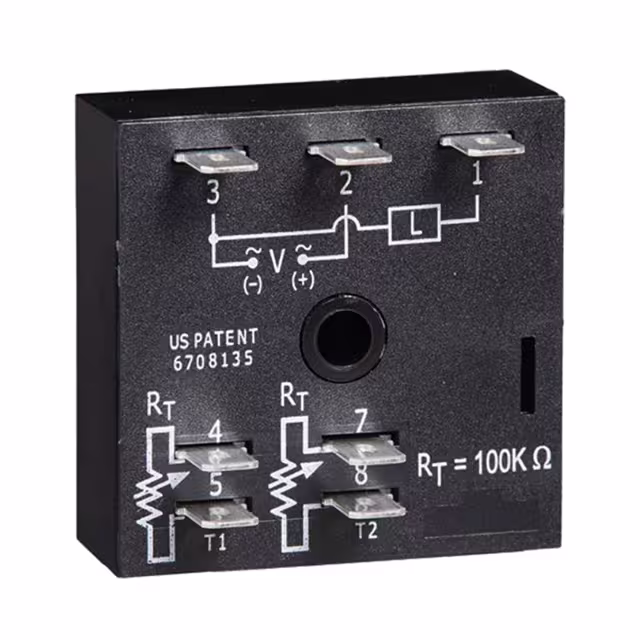

ESD52233RELAY TIME DELAY 1000MIN CHAS MT |
1,678 |
|
Datasheet | ESD | Bulk | Active | Chassis Mount | Solid State Relay | Interval, On-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 1000 Min | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
ESDR120B3PRELAY TIME DELAY 10MIN CHAS MT |
2,669 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR123B4PRELAY TIME DELAY 100MIN CHAS MT |
3,311 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Min ~ 100 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR221A2RELAY TIME DELAY 100SEC CHAS MT |
3,546 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR320A0PRELAY TIME DELAY 10SEC CHAS MT |
2,800 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR320A3PRELAY TIME DELAY 10SEC CHAS MT |
2,362 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR420A0RELAY TIME DELAY 10SEC CHAS MT |
2,411 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR420A1RELAY TIME DELAY 10SEC CHAS MT |
3,969 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR420A4RELAY TIME DELAY 10SEC CHAS MT |
3,611 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR420B1RELAY TIME DELAY 100SEC CHAS MT |
1,150 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
