Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDR420B4RELAY TIME DELAY 100MIN CHAS MT |
1,915 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Min ~ 100 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR421A1RELAY TIME DELAY 100SEC CHAS MT |
1,129 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR421A4RELAY TIME DELAY 100SEC CHAS MT |
2,898 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR423A4RELAY TIME DELAY 10MIN CHAS MT |
2,104 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR424A1RELAY TIME DELAY 100MIN CHAS MT |
4,825 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 1 Min ~ 100 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
ESDR450A1RELAY TIME DELAY 10SEC CHAS MT |
4,813 |
|
Datasheet | ESDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TRM120A2X30RELAY TIME DELAY 30SEC 10A 120V |
4,592 |
|
Datasheet | TRM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Sec ~ 30 Sec | 10A @ 120/240VAC | 120VAC | - | Hand Dial | Input Voltage | - | - |
|

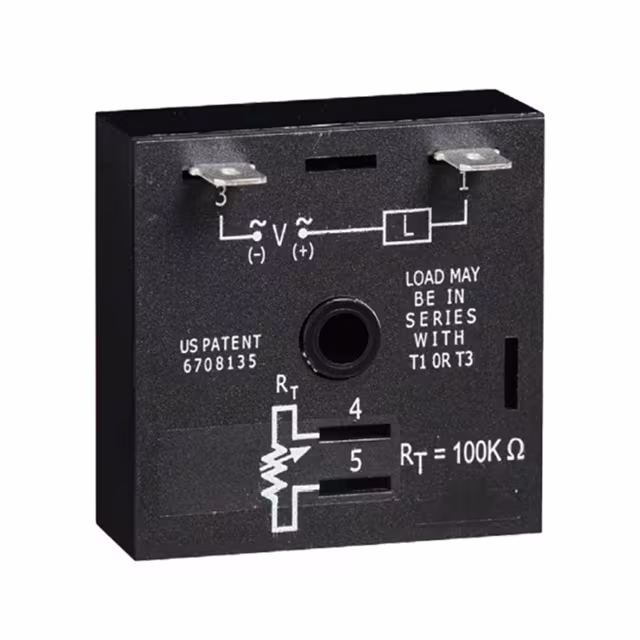

TSD1311.2SRELAY TIME DELAY 1.2 SEC CHAS MT |
3,521 |
|
Datasheet | TSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 1.2 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
SC4120ARELAY TIME DELAY CHAS MT |
2,593 |
|
Datasheet | SC4 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | - | - | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

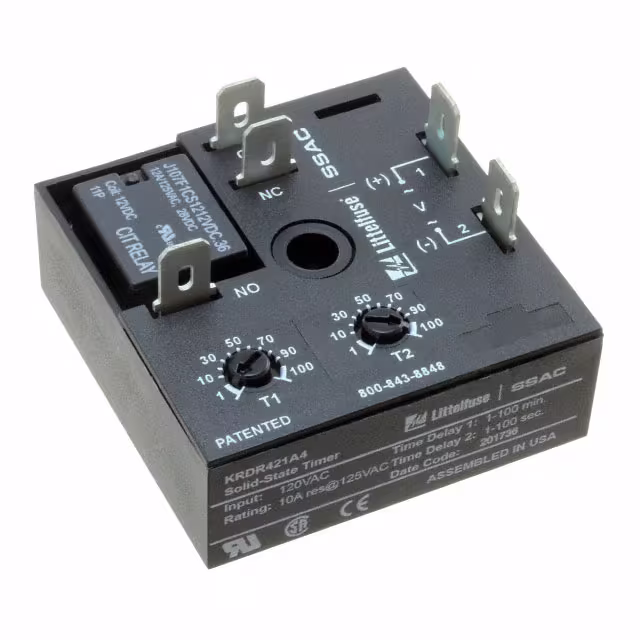

KRDR421A4RELAY TIME DELAY 100SEC 10A 125V |
3,471 |
|
Datasheet | KRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
