Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

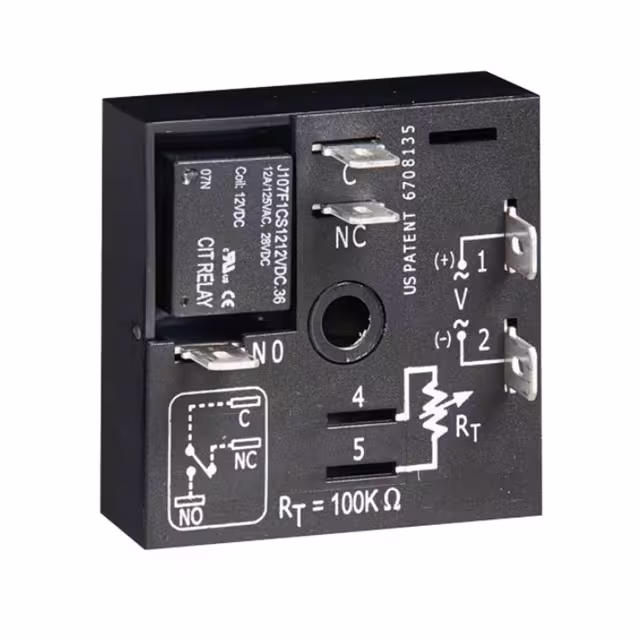

KRPSD21BRELAY TIME DELAY 10SEC 10A 125V |
3,046 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

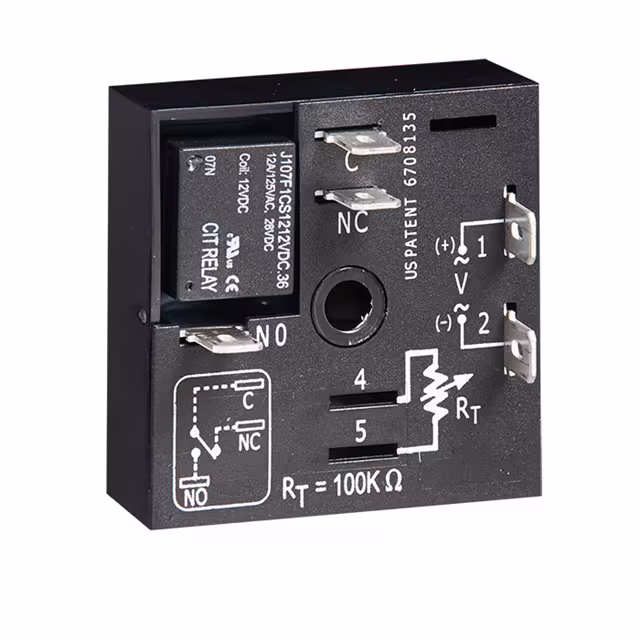

KRPSD21MRELAY TIME DELAY 10SEC 10A 125V |
3,084 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
KRPSD22MRELAY TIME DELAY 100SEC 10A 125V |
1,281 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

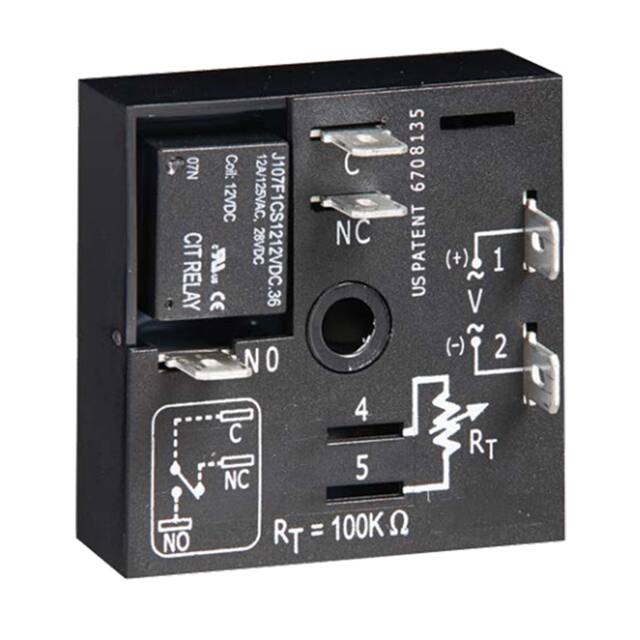

KRPSD22SRELAY TIME DELAY 100SEC 10A 125V |
4,154 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
|
KRPSD25SRELAY TIME DELAY 100MIN 10A 125V |
3,926 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Min ~ 100 Min | 10A @ 125VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
FS512RELAY TIME DELAY 100FPM 10A 120V |
4,267 |
|
Datasheet | FS500 | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 10 FPM ~ 100 FPM | 10A @ 120/240VAC | 12VDC | Plug In, 8 Pin (Octal) | Screwdriver Slot | Input Voltage | - | - |
|
|
FS524RELAY TIME DELAY 100FPM 10A 120V |
2,494 |
|
Datasheet | FS500 | Bulk | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 10 FPM ~ 100 FPM | 10A @ 120/240VAC | 24VAC/DC | Plug In, 8 Pin (Octal) | Screwdriver Slot | Input Voltage | - | - |
|

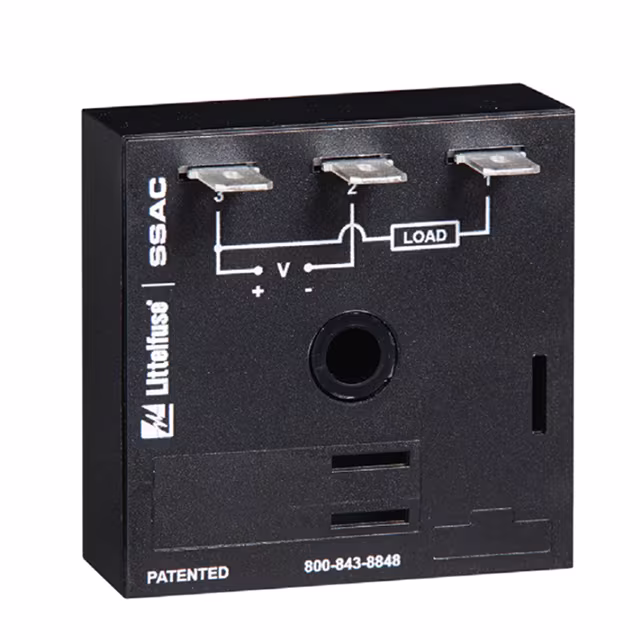

TSD6113SPRELAY TIME DELAY 3SEC CHAS MT |
2,669 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 3 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

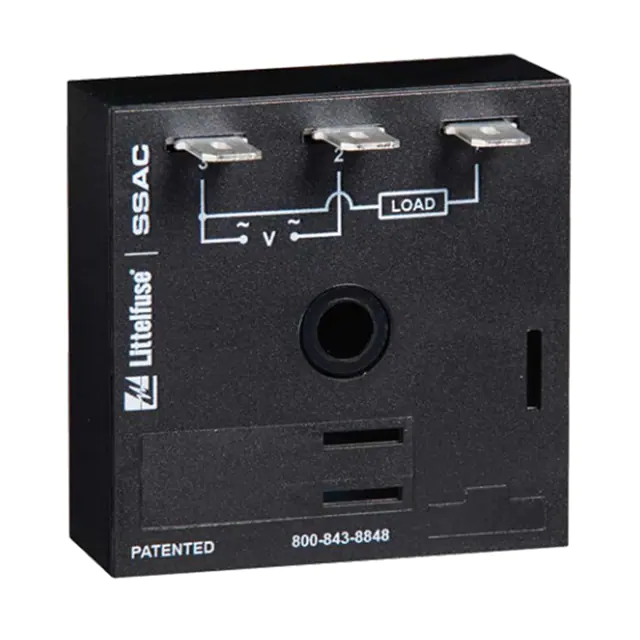

TSDR6110SA30SRELAY TIME DELAY 10SEC 30SEC |
3,308 |
|
Datasheet | TSDR | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 10 Sec, 30 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

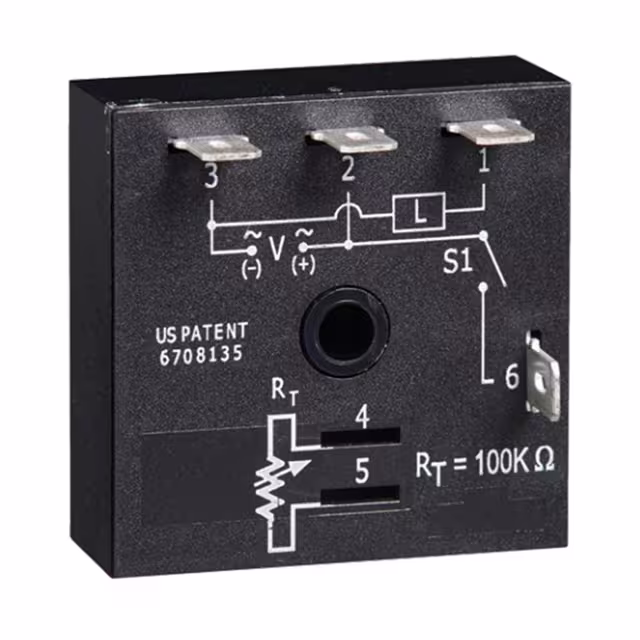

TSDS2110SRELAY TIME DELAY 10 SEC CHAS MT |
4,950 |
|
Datasheet | TSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | Fixed, 10 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
