Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1100F260Q5JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
504 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL6215VF450GNNSWITCH TACTILE SPST-NO 0.05A 12V |
2,646 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
320.21E11BLKSWITCH TACT SPST-NO 0.025A 50V |
1,153 |
|
Datasheet | 320 | Tray | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Black Cap | -20°C ~ 70°C |
|
TL6215VF450RNNSWITCH TACTILE SPST-NO 0.05A 12V |
4,087 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL3265GQTCLRSWITCH TACTILE SPST-NO 0.05A 12V |
3,320 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 12.70mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Green | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3265BQNNSWITCH TACTILE SPST-NO 0.05A 12V |
4,520 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Blue | - | 160gf | - | - | -40°C ~ 85°C |
|
TL6215VF450BNNSWITCH TACTILE SPST-NO 0.05A 12V |
2,319 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 5.35mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Blue | 3.3 VDC | 450gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL3701AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
554 |
|
Datasheet | TL3701 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3700AF160QGSWITCH TACTILE SPST-NO 0.02A 15V |
4,096 |
|
Datasheet | TL3700 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

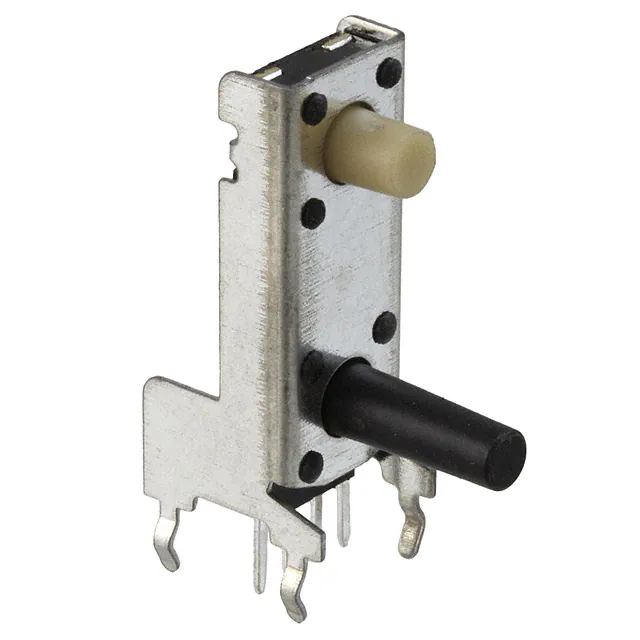

TL53HCF160QSWITCH TACT SPSTX2 0.05A 12V |
2,047 |
|
Datasheet | TL53 | Tray | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 8.40mm x 10.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
