Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1100DF260QSWITCH TACTILE SPST-NO 0.05A 12V |
1,204 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL6150AF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,084 |
|
Datasheet | TL6150 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TSJW-5.2-260-TRSWITCH TACTILE SPST-NO 0.05A 12V |
3,432 |
|
Datasheet | TSJW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -20°C ~ 70°C |
|
GS6.90F300QPSWITCH TACTILE SPST-NO 0.05A 50V |
1,909 |
|
Datasheet | GS | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 6.90mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
320.04E11GRYVERTSWITCH TACT SPST-NO 0.025A 50V |
2,820 |
|
Datasheet | 320 | Tray | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.70mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|

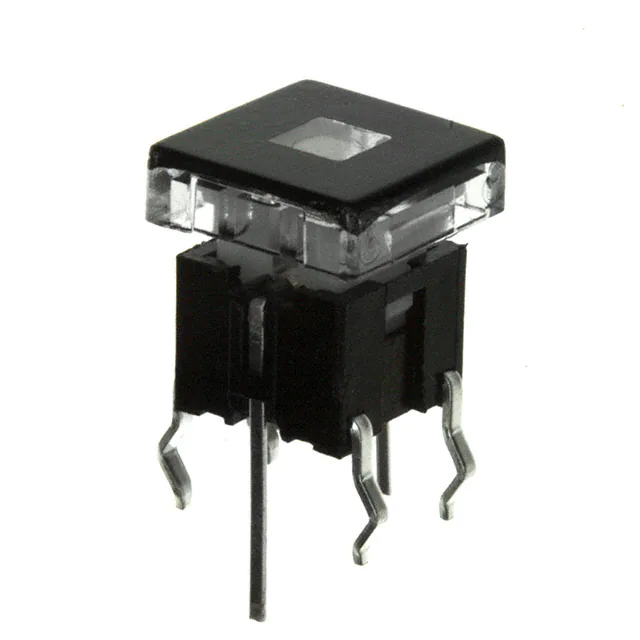

TL1240RQ2JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,192 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
320.09E11WHTSWITCH TACT SPST-NO 0.025A 50V |
3,157 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
|
TL6105DF160QPSWITCH TACTILE SPST-NO 0.05A 50V |
3,903 |
|
Datasheet | TL6105 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin, Sealed - Fully | -40°C ~ 85°C |
|

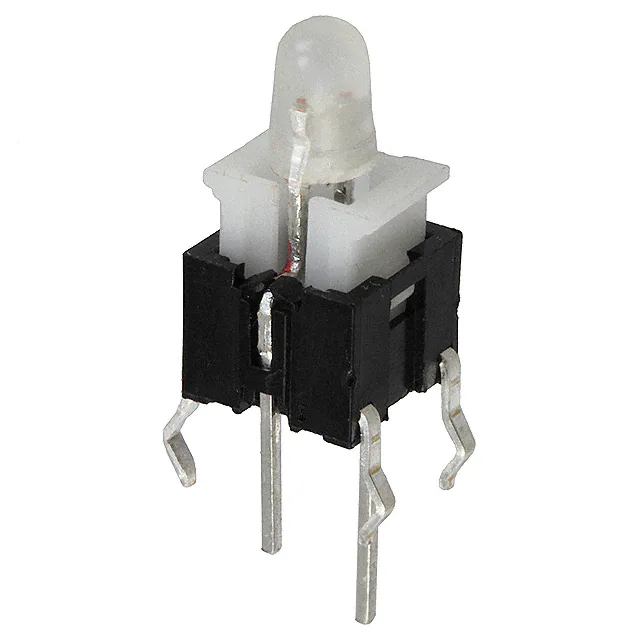

TL1240BICOLORGREENYELLOWSWITCH TACTILE SPST-NO 0.05A 12V |
1,801 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | - | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green/Yellow | 2.2, 2.1 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1260GQNOCAPSWITCH TACTILE SPST-NO 0.05A 12V |
2,055 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
