Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6150BF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
506 |
|
Datasheet | TL6150 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TSM9W-5.2-260-TRSWITCH TACTILE SPST-NO 0.05A 12V |
1,714 |
|
Datasheet | TSM9W | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -20°C ~ 70°C |
|
TL1100SF260QSWITCH TACTILE SPST-NO 0.05A 12V |
137 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | - | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3303F160QGSWITCH TACTILE SPST-NO 0.05A 12V |
928 |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
LL3301DF065QJSWITCH TACTILE SPST-NO 0.05A 12V |
848 |
|
Datasheet | LL3301 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -30°C ~ 85°C |
|
TL9100AF350QSWITCH TACTILE SPST-NO 0.05A 12V |
453 |
|
Datasheet | TL9100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|

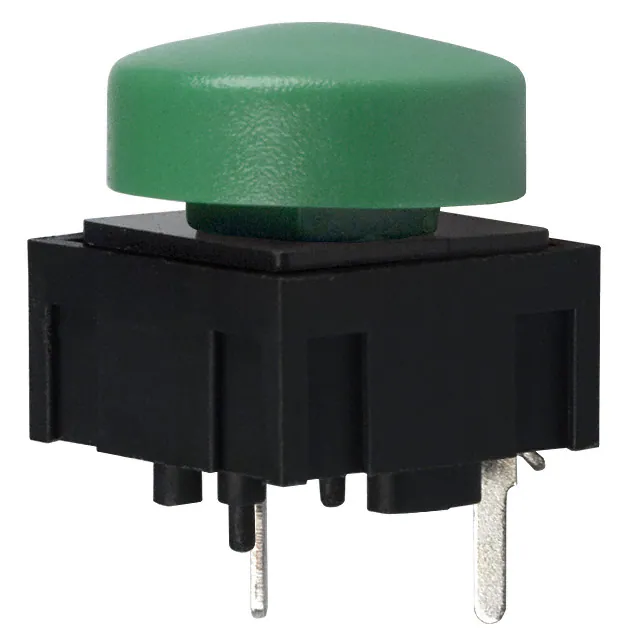

320.02E11.08GRNSWITCH TACT SPST-NO 0.025A 50V |
3,951 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
TL1265GQRGRNSWITCH TACTILE SPST-NO 0.05A 12V |
1,440 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | Green Cap | -20°C ~ 70°C |
|
TL3301EF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
1,115 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TSJW-3.8-260-TRSWITCH TACTILE SPST-NO 0.05A 12V |
487 |
|
Datasheet | TSJW | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.80mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -20°C ~ 70°C |
