Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3302AF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
1,552 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3360AF185KRSWITCH TACTILE SPST-NO 0.05A 12V |
4,370 |
|
Datasheet | TL3360 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 6.67mm | Side Actuated | Gull Wing | 7.77mm x 6.40mm | Non-Illuminated | - | - | 185gf | - | - | -25°C ~ 70°C |
|

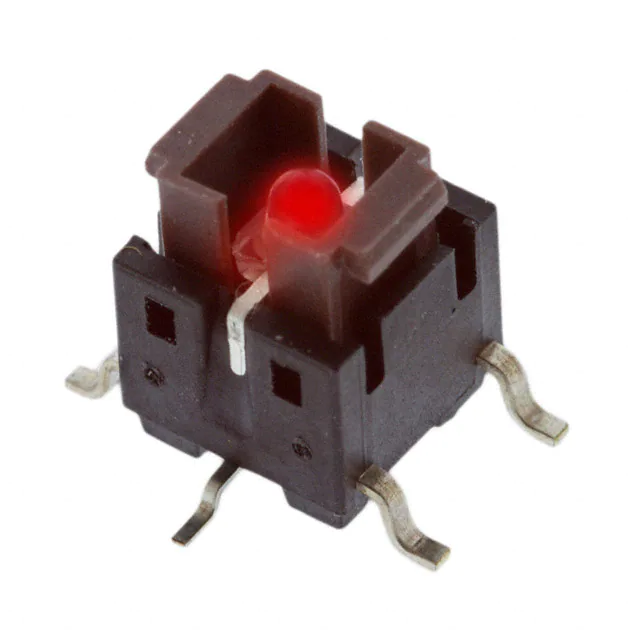

TL3240F100RSWITCH TACTILE SPST-NO 0.05A 12V |
413 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Red | 1.8 VDC | 100gf | - | Board Guide | -25°C ~ 70°C |
|
|
TL3240F260RSWITCH TACTILE SPST-NO 0.05A 12V |
668 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Red | 1.8 VDC | 260gf | - | Board Guide | -25°C ~ 70°C |
|
|
TL3240F160RSWITCH TACTILE SPST-NO 0.05A 12V |
1,106 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Red | 1.8 VDC | 160gf | - | Board Guide | -25°C ~ 70°C |
|
|
TL3240F260RTSWITCH TACTILE SPST-NO 0.05A 12V |
1,198 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Red | 1.8 VDC | 260gf | - | - | -25°C ~ 70°C |
|
|
TL3240F100RTSWITCH TACTILE SPST-NO 0.05A 12V |
1,060 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Red | 1.8 VDC | 100gf | - | - | -25°C ~ 70°C |
|
|
TL3240F260GSWITCH TACTILE SPST-NO 0.05A 12V |
1,543 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Green | 2 VDC | 260gf | - | Board Guide | -25°C ~ 70°C |
|
|
TL3240F160RTSWITCH TACTILE SPST-NO 0.05A 12V |
1,308 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Red | 2 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
TL3240F100GSWITCH TACTILE SPST-NO 0.05A 12V |
283 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Green | 2 VDC | 100gf | - | Board Guide | -25°C ~ 70°C |
