Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3240F260YSWITCH TACTILE SPST-NO 0.05A 12V |
590 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Yellow | 2 VDC | 260gf | - | Board Guide | -25°C ~ 70°C |
|
TL3265WQNNSWITCH TACTILE |
450 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, White | - | 160gf | - | - | -40°C ~ 85°C |
|
|
TL3240F100BTSWITCH TACTILE SPST-NO 0.05A 12V |
1,350 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Blue | 3.2 VDC | 100gf | - | - | -25°C ~ 70°C |
|
TL1270F160REQATSWITCH TACTILE SPST-NO 0.05A 12V |
1,165 |
|
Datasheet | TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | LED, Red | 3.6 VDC | 160gf | - | - | -40°C ~ 85°C |
|
TL59FF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,926 |
|
Datasheet | TL59 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TLE1105AF160QSWITCH TACTILE SPST-NO 0.05A 12V |
128 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
TL59BF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,556 |
|
Datasheet | TL59 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL6170AF250QGSWITCH TACTILE SPST-NO 0.05A 12V |
966 |
|
Datasheet | TL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.20mm | - | Top Actuated | Gull Wing | 6.30mm x 6.30mm | Non-Illuminated | - | - | 250gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

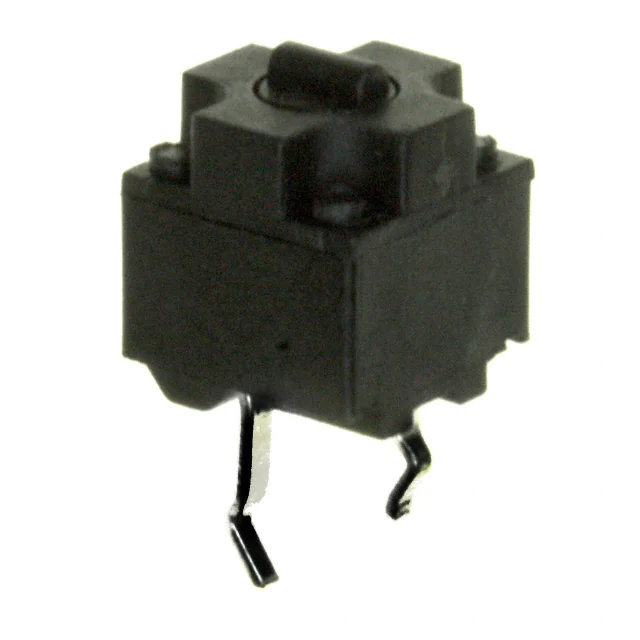

TL1140AF070QSWITCH TACTILE SPST-NO 0.05A 30V |
277 |
|
Datasheet | TL1140 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 30VDC | - | Through Hole | 7.35mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 70gf | - | - | -25°C ~ 85°C |
|
TL6155AF350QSWITCH TACTILE SPST-NO 0.05A 32V |
907 |
|
Datasheet | TL6155 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole, Right Angle | - | 3.90mm | Side Actuated | PC Pin | 6.55mm x 6.40mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
