Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3210AF160RQSWITCH TACTILE SPST-NO 0.05A 12V |
3,132 |
|
Datasheet | TL3210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.12mm | - | Top Actuated | Gull Wing | 5.60mm x 3.40mm | Illuminated | LED, Red | 1.95 VDC | 160gf | - | - | -20°C ~ 70°C |
|

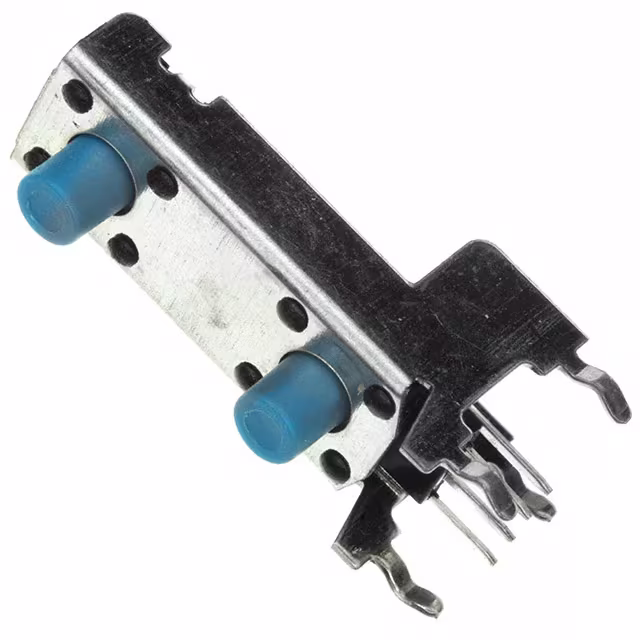

TL53BF160QSWITCH TACT SPSTX2 0.05A 12V |
3,746 |
|
Datasheet | TL53 | Tray | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1265GQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
2,509 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green | 2.3 VDC | 160gf | - | Clear Cap | -20°C ~ 70°C |
|

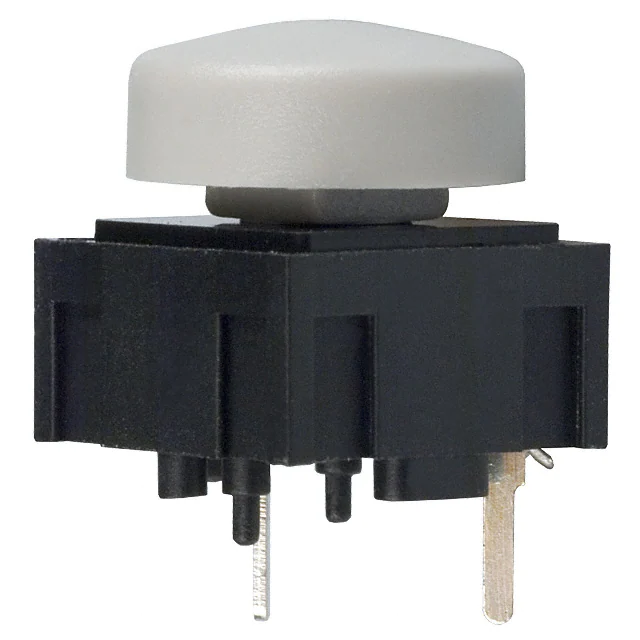

320.02E11.08GRYSWITCH TACT SPST-NO 0.025A 50V |
4,308 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
RT3301AF260QSWITCH TACTILE SPST-NC 0.05A 12V |
2,911 |
|
Datasheet | RT3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL6110CF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
1,879 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.70mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
TL3215AF160GQSWITCH TACTILE SPST-NO 0.05A 12V |
3,361 |
|
Datasheet | TL3215 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.00mm | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.90mm | Illuminated | LED, Green | 2.05 VDC | 160gf | - | - | -40°C ~ 85°C |
|
320.01E11WHTSWITCH TACT SPST-NO 0.025A 50V |
3,088 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
|
TL1275CA2WA500QPGSWITCH TACTILE SPST-NO 0.05A 12V |
1,561 |
|
Datasheet | TL1275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Panel Mount | 1.60mm | - | Top Actuated | Wire Leads with Connector | 19.00mm Dia | Illuminated | LED, Green | - | 350gf | - | - | -25°C ~ 70°C |
|
TL1105GF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,840 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
