Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6800AF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,395 |
|
Datasheet | TL6800 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
TL1100AF260QSWITCH TACTILE SPST-NO 0.05A 12V |
22,099 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL4115AF160QSWITCH TACTILE SPST-NO 0.05A 12V |
2,299 |
|
Datasheet | TL4115 | Tape & Reel (TR) | Active | SPST-NO | On-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.60mm | - | Top Actuated | SMD (SMT) Tab | 4.50mm x 2.20mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 85°C |
|
TL6400BF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
3,312 |
|
Datasheet | TL6400 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
TL6800AF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
4,953 |
|
Datasheet | TL6800 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 90°C |
|
TL3301TF160QJTUBESWITCH TACTILE SPST-NO 0.05A 12V |
1,856 |
|
Datasheet | TL3301 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL52AF260QSWITCH TACTILE SPST-NO 0.05A 12V |
1,449 |
|
Datasheet | TL52 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 85°C |
|
TL3301NF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
15,309 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3301DF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
6,670 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

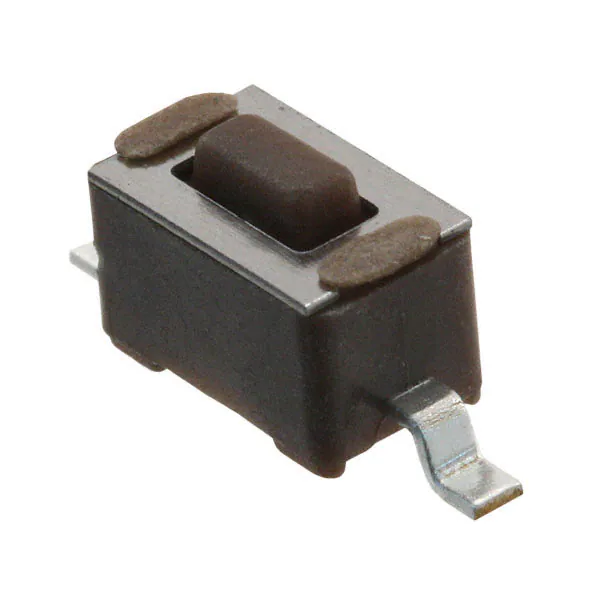

TL3302AF130QGSWITCH TACTILE SPST-NO 0.05A 12V |
3,881 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | Tactile Feedback | -20°C ~ 70°C |
