Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700SP7B20M7QESWITCH PUSHBUTTON SPDT 3A 120V |
756 |
|
Datasheet | 700 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

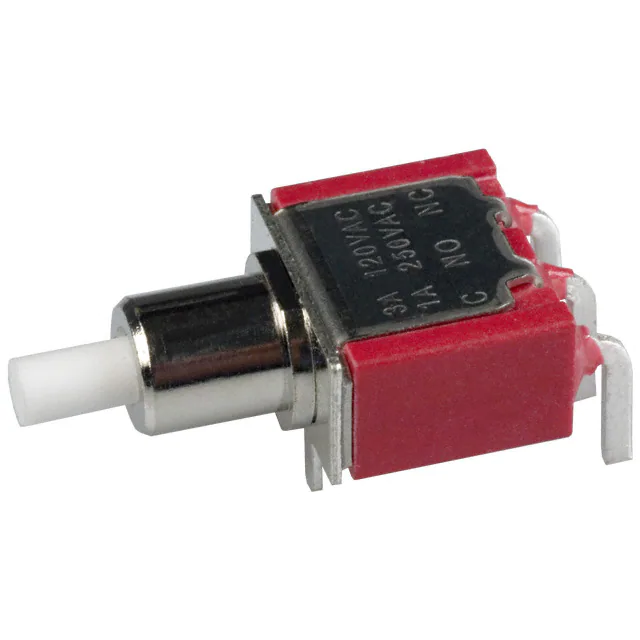

700SP7B20M6QESWITCH PUSHBUTTON SPDT 3A 120V |
1,484 |
|
Datasheet | 700 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
PV2F240NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
4,736 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV5S24018SWITCH PUSH SPST-NO 2A 36V |
200 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
PV5S24019SWITCH PUSH SPST-NO 2A 36V |
210 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|

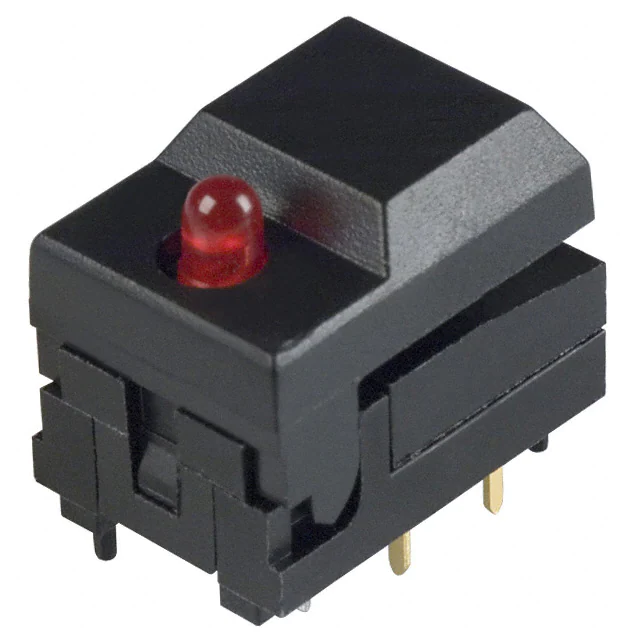

5501MBLKREDSWITCH PUSH SPDT 0.3A 12V |
266 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5501MWHTGRNSWITCH PUSH SPDT 0.3A 12V |
383 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
RP3508BBLKREDREDNSSWITCH PUSHBUTTON SPST 3A 125V |
2,655 |
|
Datasheet | RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | LED, Red | 1.8 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
RP8100B2M1CEBLKGRNGRNSWITCH PUSH SPST-NO 0.125A 125V |
313 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2M1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
466 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
