Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP8300B2M1CEBLKREDNILSWITCH PB SPST-NO 200MA 250V |
1,299 |
|
Datasheet | RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

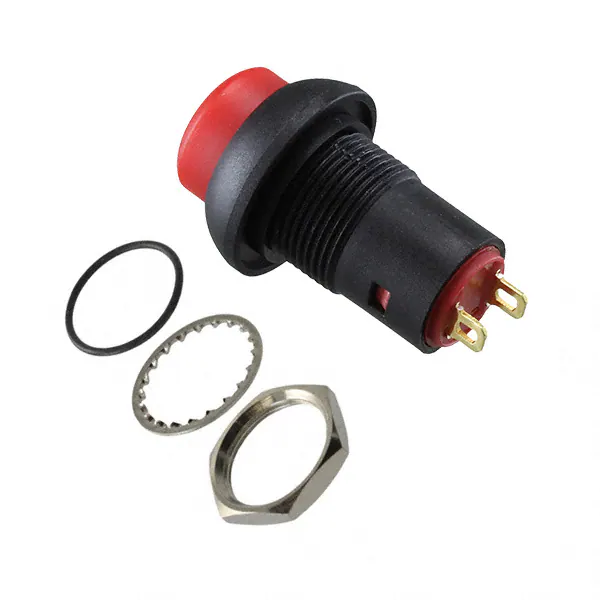

RP8201B2M1CEBLKREDNILSWITCH PUSH SPST 0.1A 24V |
200 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
ULP12OAP1RSSCL1REDGRNSWITCH PUSHBUTTON SPDT 0.4VA 28V |
351 |
|
Datasheet | ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
PV5H24019SWITCH PUSHBUTTON SPST-NO 2A 36V |
232 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
FS5700DPLT2B2M2QESWITCH PUSHBUTTON DPDT 1A 9V |
183 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
RP8200B2M1CEBLKBLKGRNSWITCH PUSH SPST 0.1A 24V |
577 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8300B2M1CEBLKBLKREDSWITCH PB SPST-NO 200MA 250V |
439 |
|
Datasheet | RP8300 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
700DP7B10M6QEHSWITCH PUSHBUTTON DPDT 3A 120V |
800 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
FS57003PLT2B2M2QESWITCH PUSHBUTTON 3PDT 1A 9V |
175 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
|
RP8100B2W1CEBLKBLKNILSWITCH PB SPST-NO 0.125A 125V |
211 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
