Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV2F240NNM01SWITCH PUSHBUTTON SPST-NO 2A 48V |
267 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | Power Symbol | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
RP8200B2M1CEBLKBLKBLUSWITCH PUSH SPST 0.1A 24V |
112 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

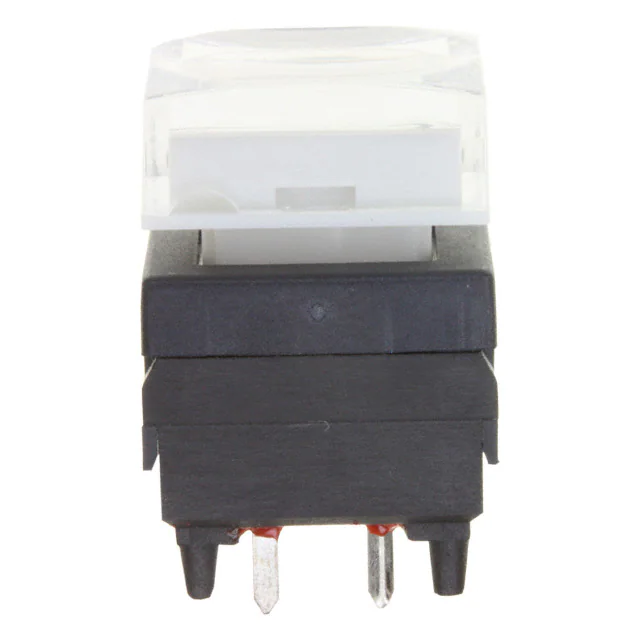

LP6OA2ASRGSWITCH PUSH DPST-NO 12MA 12V |
1,755 |
|
Datasheet | LP6 | Bulk | Active | Through Hole | Standard, Illuminated | DPST-NO | Off-Mom | 12mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Green/Red | 1.95, 2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|

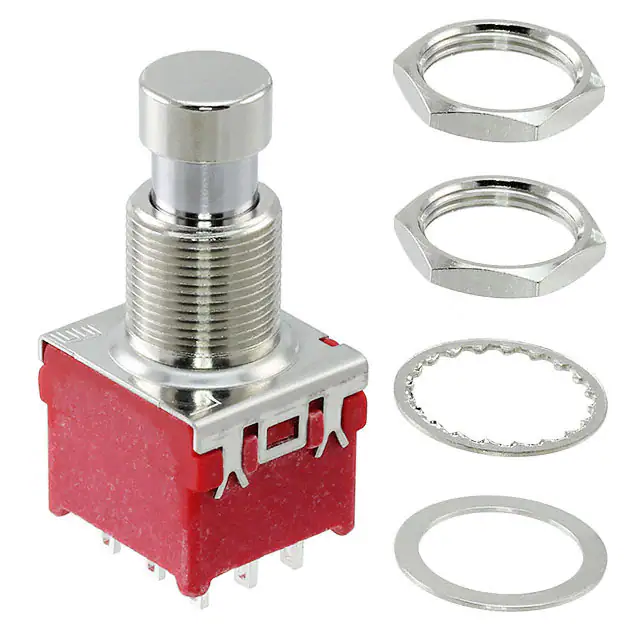

FS57003PLT2B2M1QEHSWITCH PUSHBUTTON 3PDT 1A 9V |
511 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|

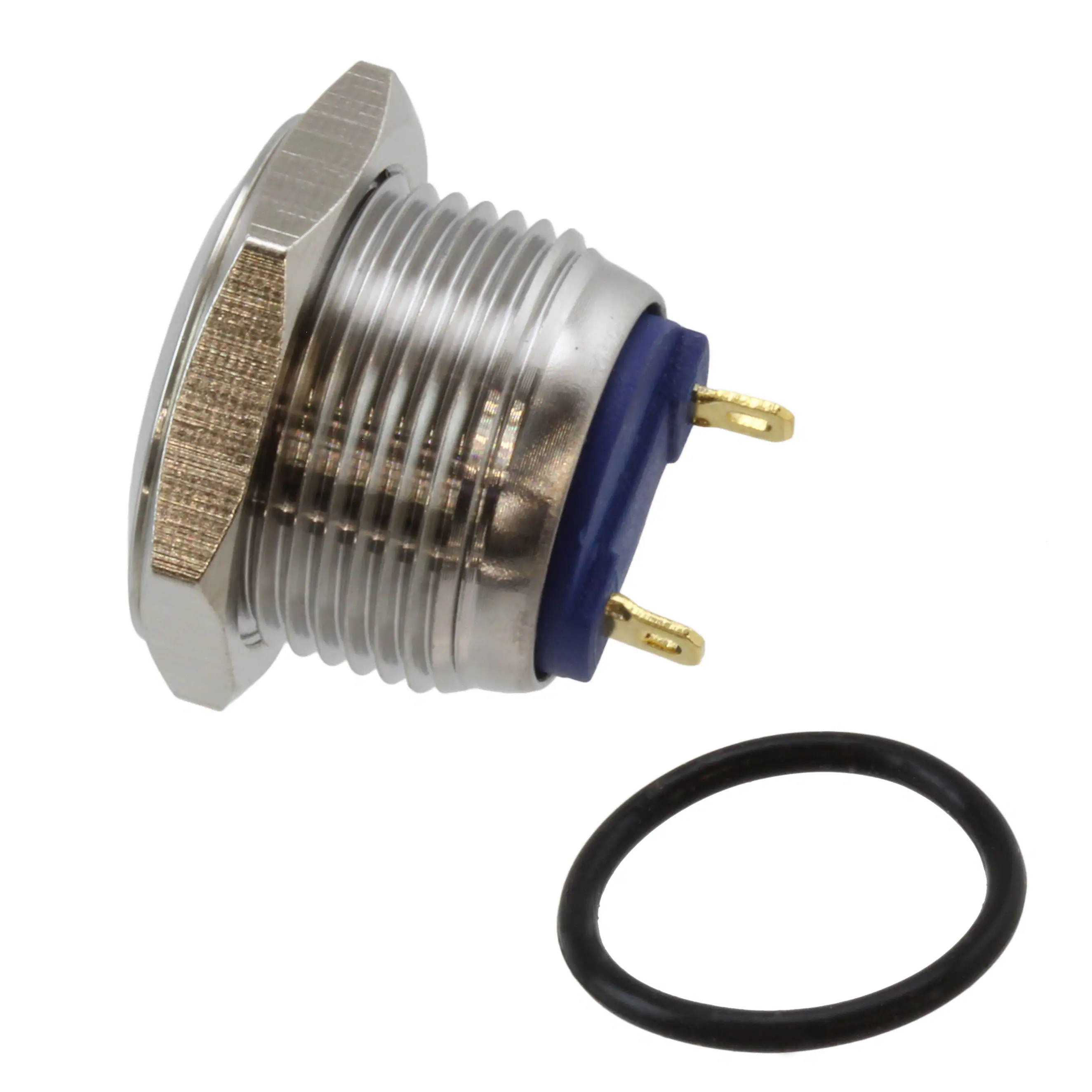

PV2F240SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
1,336 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV2S640SSSWITCH PUSH SPST-NO 2A 48V |
627 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Domed | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV1F640SSSWITCH PUSH SPST-NO 2A 48V |
593 |
|
Datasheet | PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

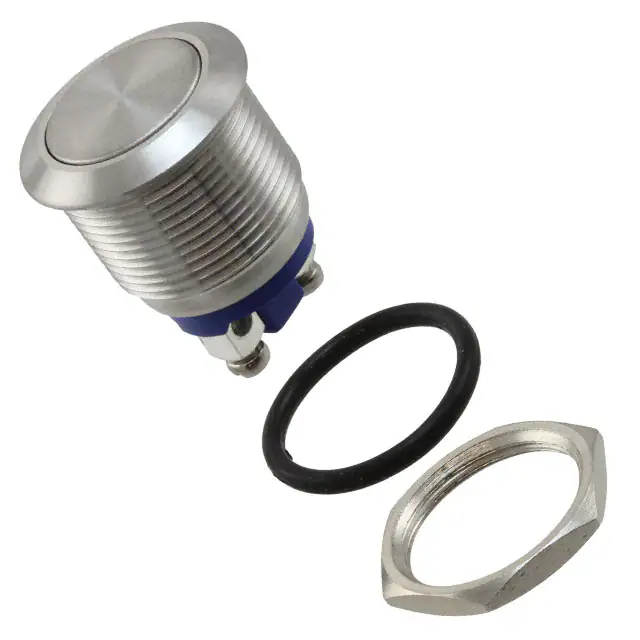

PV1F640BBGSWITCH PUSHBUTTON SPST-NO 2A 48V |
213 |
|
Datasheet | PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV6F240DD-311-RSWITCH PUSH SPST-NO 2A 48V |
445 |
|
Datasheet | PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
KJD17-22213-112SWITCH PUSH DPST 16A 120V |
1,421 |
|
Datasheet | KJD17, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 120 V | - | Square, Button, Dual | No Marking | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 46.00mm x 22.00mm | -25°C ~ 55°C |
