Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP8100B2M1CEBLKREDREDSWITCH PB SPST-NO 0.125A 125V |
274 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB66EE2CR6NPUSHBUTTON SWITCH DPDT OFF-ON (1 |
979 |
|
Datasheet | PB66 | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPST | Off-On | 16A (AC) | 127 V | - | Round, Button | - | Silver | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | 0°C ~ 55°C |
|
FS5700SPMT2B2M2QESWITCH PUSHBUTTON SPDT 1A 9V |
264 |
|
Datasheet | FS5700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
PV5S64012SWITCH PUSH SPST-NO 2A 36V |
165 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
PB66EE2CR6P31PUSHBUTTON SWITCH DPST 16A |
477 |
|
Datasheet | PB66 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC) | 127 V | - | Round, Button | - | Silver | LED, Green | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | 0°C ~ 55°C |
|
RP3508BBLKGRNGRNNSSWITCH PUSHBUTTON SPST 3A 125V |
2,928 |
|
Datasheet | RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | LED, Green | 2.2 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|

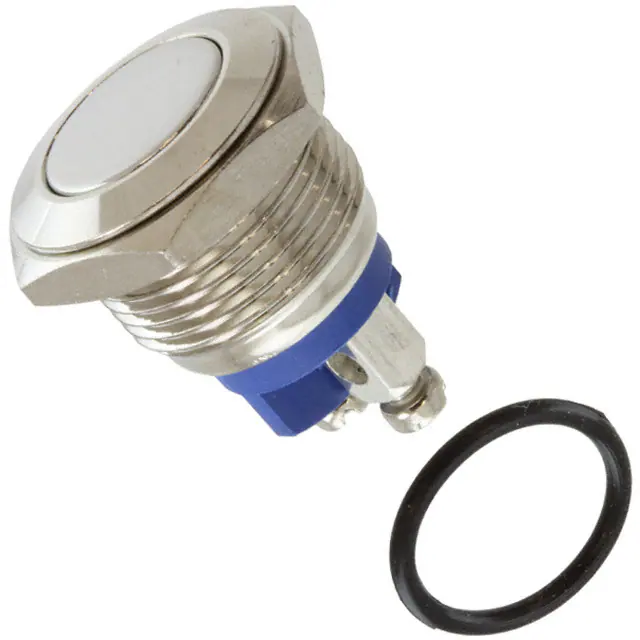

PV2F640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
129 |
|
Datasheet | PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
RP8200B2M1CEBLKBLKNILSWITCH PUSH SPST 0.1A 24V |
395 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8200B2M1CEBLKREDNILSWITCH PUSH SPST 0.1A 24V |
384 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8300B2M1CEBLKBLUNILSWITCH PB SPST-NO 200MA 250V |
1,358 |
|
Datasheet | RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
