DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V78E12-1000-SMT-TRDC DC CONVERTER 12V 12W |
2,599 |
|
Datasheet | V78E-1000-SMT | 10-SMD Module, 8 Leads | Tape & Reel (TR) | Not For New Designs | Non-Isolated PoL Module | 1 | 16V | 36V | 12V | - | - | - | 1A | 12 W | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Surface Mount | - | - | - | - |
|
PEME2-S12-S24-SDC-DC 3KV ISOLATED, 2 W, 10.8~13 |
547 |
|
Datasheet | PEME2-S (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 83mA | 1.992 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 86% | - | - | Through Hole | - | - | CE, cURus | 62368-1 |
|
PEM1-S5-S15-SDC DC CONVERTER 15V 1W |
107 |
|
Datasheet | PEM1-S (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1; 61000-3-2; 61000-3-3 |
.jpg)
|
PDS1-S12-D5-M-TRDC DC CONVERTER +/-5V 1W |
326 |
|
Datasheet | PDS1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PDSE2-S15-S15-M-TRDC-DC 1.5KV ISOLATED, 2 W, 13.5~ |
414 |
|
Datasheet | PDSE2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 15V | - | - | - | 133mA | 1.995 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | CE | 62368-1 |
|
PESE1-S24-S9-M-TRDC-DC ISOLATED 3KV, 1 W, 21.6~26 |
523 |
|
Datasheet | PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
PQME1-S12-S15-M-TRDC-DC ISOLATED 1.5KV, 0.75 W, 11 |
313 |
|
Datasheet | PQME1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 50mA | 750 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 74% | - | - | Surface Mount | - | - | CE | 62368-1 |
Gull Wing15.2mm.jpg)
|
PES1-S5-D5-M-TRDC DC CONVERTER +/-5V 1W |
118 |
|
Datasheet | PES1-M (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

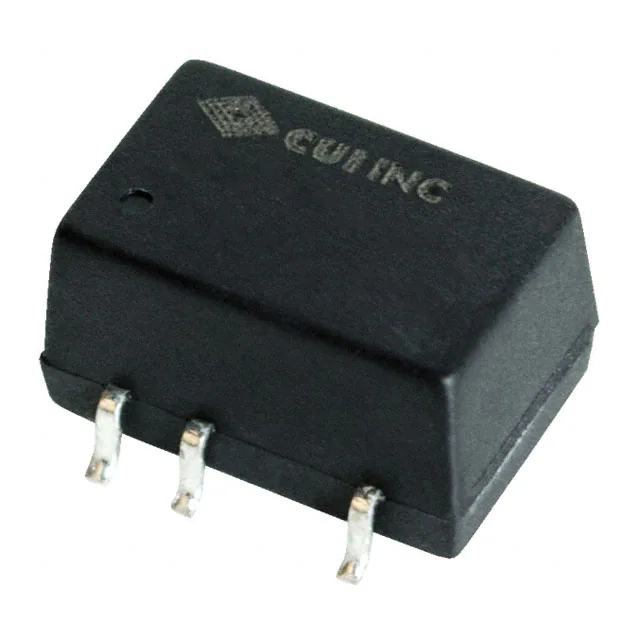

PDS2-S12-S9-M-TRDC DC CONVERTER 9V 2W |
411 |
|
Datasheet | PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
|
|
PDS2-S24-S5-M-TRDC DC CONVERTER 5V 2W |
360 |
|
Datasheet | PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | - | - | EN | 55024; 55032 Class A |
