DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEP1-S5-S12-MDC DC CONVERTER 12V 1W |
149 |
|
Datasheet | PEP1-M (1W) | 12-SMD Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 62368-1 |
|
PDSE1-S3-S24-MDC-DC ISOLATED, 1 W, 2.97~3.63 V |
348 |
|
Datasheet | PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Surface Mount | - | - | cURus | 62368-1 |
|
|
PDSE1-S3-D3-MDC-DC ISOLATED, 1 W, 2.97~3.63 V |
154 |
|
Datasheet | PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 2.97V | 3.63V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 77% | - | - | Surface Mount | - | - | cURus | 62368-1 |
|
PDS1-S12-S12-SDC DC CONVERTER 12V 1W |
2,709 |
|
Datasheet | PDS1-S (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PDS1-S5-S5-DDC DC CONVERTER 5V 1W |
105 |
|
Datasheet | PDS1-D (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C | 80% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PESE1-S12-S5-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
2,876 |
|
Datasheet | PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S12-S9-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
861 |
|
Datasheet | PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 111mA | 999 mW | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
|
PESE1-S12-S15-M-TRDC-DC ISOLATED 3KV, 1 W, 10.8~13 |
760 |
|
Datasheet | PESE1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1.005 W | 3 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 83% | - | - | Surface Mount | - | - | CE, cURus | 62368-1 |
|
|
PDS1-S24-S24-SDC DC CONVERTER 24V 1W |
3,106 |
|
Datasheet | PDS1-S (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|

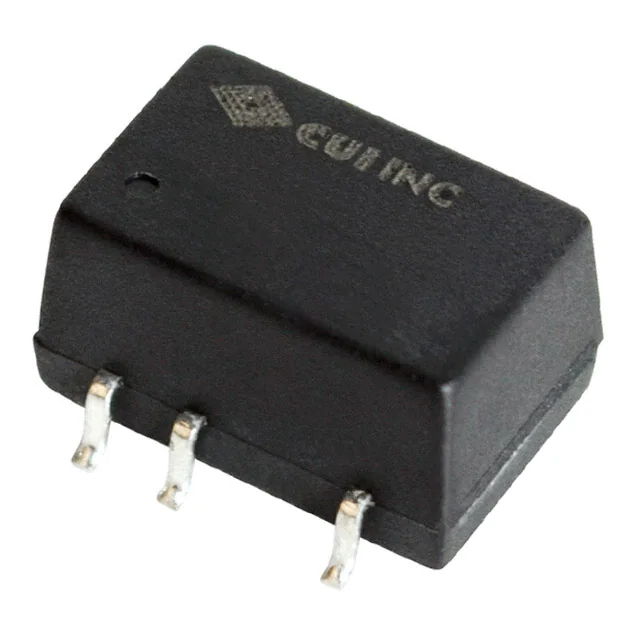

PDS1-S5-S24-M-TRDC DC CONVERTER 24V 1W |
2,602 |
|
Datasheet | PDS1-M (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
