Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

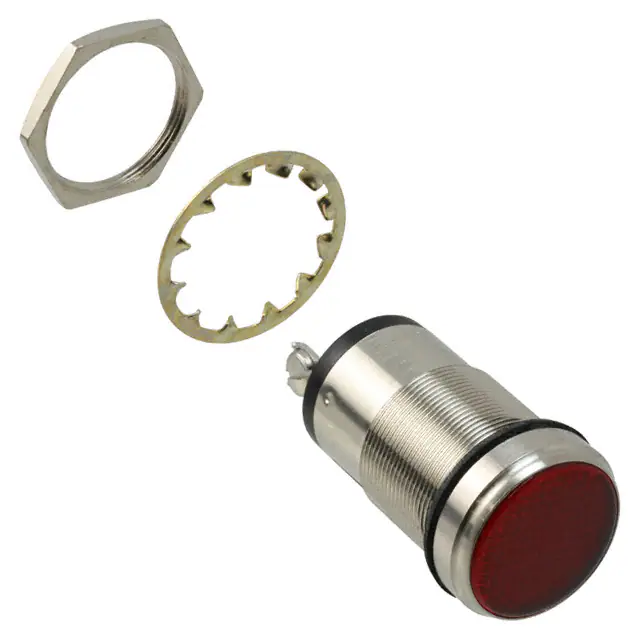

5561905304FLED PNL MT 1" 24V FLAT ORANGE |
3,812 |
|
Datasheet | 556 | Bulk | Active | LED | Orange | - | - | AC | 125V | 10.5mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5561607304FLED 1" FLAT GREEN PMI 125VDC |
1,979 |
|
Datasheet | 556 | Bulk | Active | LED | Green | - | - | AC | 125V | 10mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
|
556-15B4-304F1" FLAT R LED 24VDC, UV RATED |
2,751 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.12" (28.40mm) | - | Round with Flat Top | 22000mcd | - | - | Wire Leads - 8" (203.20mm) | IP66, NEMA 4X | - |
|
5561005304FLED PNL MT 1" 125VAC WT FLAT WHT |
3,161 |
|
Datasheet | 556 | Bulk | Active | LED | White | - | - | AC | 125V | 9mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
80110300331504INDICATOR PRESS TO TEST |
3,276 |
|
Datasheet | 801 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
80010300331504INDICATOR PRESS TO TEST |
1,141 |
|
Datasheet | 800 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
80317100331504INDICATOR PRESS TO TEST |
1,848 |
|
Datasheet | 803 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5580301027FLED PMI SNAP-IN YELLOW PVC FREE |
1,221 |
|
Datasheet | 558 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 585nm | 40° | Wire Leads - 14" (355.60mm) | - | - |
|
5580301023FLED PMI SNAP-IN YELLOW PVC FREE |
2,369 |
|
Datasheet | 558 | Bulk | Active | LED | Yellow | Yellow | Diffused | Vf (Typ), If (Max) | 2.1V | 20mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 585nm | 40° | Wire Leads - 6" (152.40mm) | - | - |
|

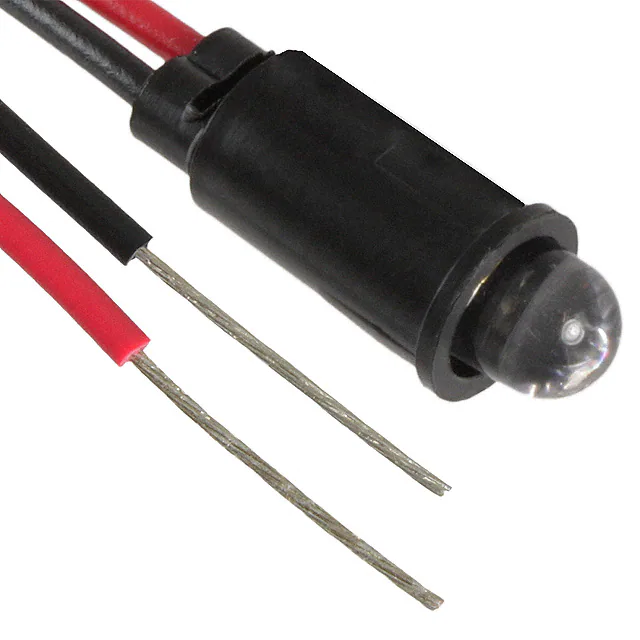

5595901007FLED PANEL DAYLT YLW SNAP-IN 14"L |
4,691 |
|
Datasheet | 559 | Bulk | Active | LED | Yellow | Colorless | Clear | Vf (Typ), If (Max) | 2V | 50mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 3100mcd | 592nm | 15° | Wire Leads - 14" (355.60mm) | - | - |
