Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5590103003FLED PANEL RED DIFF 12V SNAP 6"LD |
2,773 |
|
Datasheet | 559 | Bulk | Active | LED | Red | Red | Diffused | DC | 12V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 635nm | 60° | Wire Leads - 6" (152.40mm) | - | - |
|
5590203007FLED SNAP-IN PANEL 5MM 12V GREEN |
2,379 |
|
Datasheet | 559 | Bulk | Active | LED | Green | - | Diffused | DC | 12V | 15mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 8mcd | 565nm | 60° | Wire Leads - 14" (355.60mm) | - | - |
|
5596104003FLED PMI SNAP-IN 24V RED 6" |
204 |
|
Datasheet | 559 | Bulk | Active | LED | Red | - | - | DC | 24V | 20mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 2100mcd | 635nm | 15° | Wire Leads - 6" (152.40mm) | - | - |
|

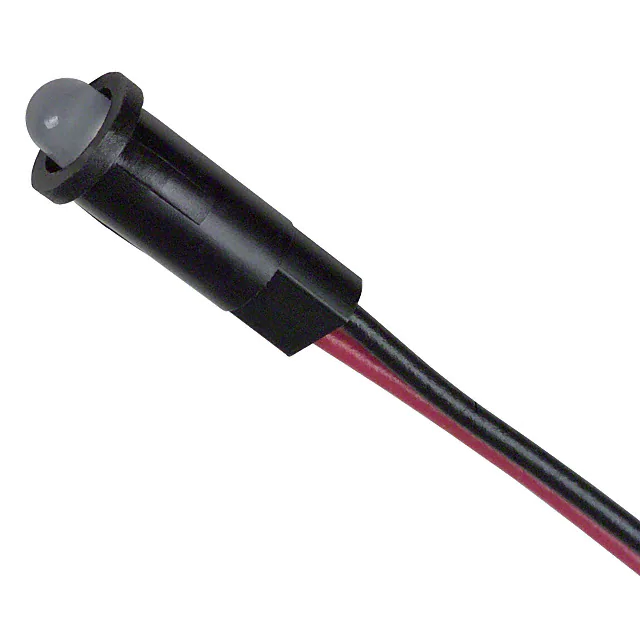

5580803007FLED 3MM BLUE WHT DIFF PANEL MOUN |
111 |
|
Datasheet | 558 | Bulk | Active | LED | Blue | - | Diffused | Vf (Typ), If (Max) | 3.2V | 30mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 57mcd | 468nm | 100° | Wire Leads - 14" (355.60mm) | - | - |
|
5571505203FLED PNL MT 11/16" 24V WT RED |
101 |
|
Datasheet | 557 | Bulk | Active | LED | Red | - | - | DC | 24V | 20mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
5571605203FLED PNL MT 11/16" 24V WT GREEN |
126 |
|
Datasheet | 557 | Bulk | Active | LED | Green | - | - | DC | 24V | 16mA | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|

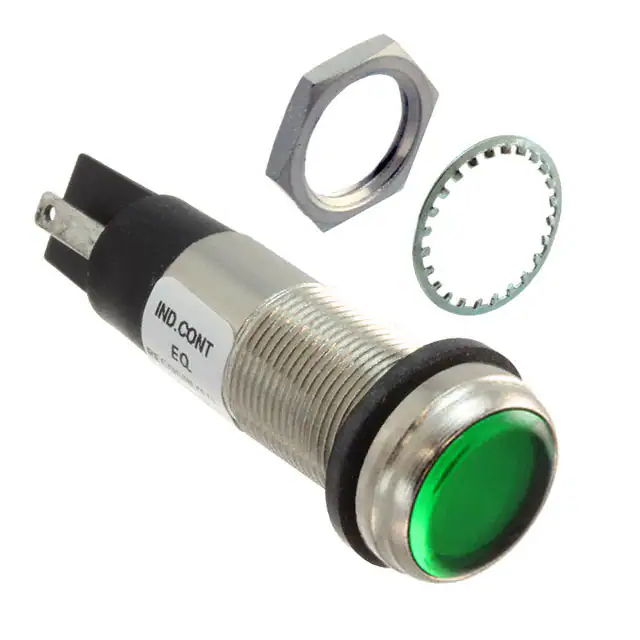

6561205304FLED 1/2" FLAT GRN 120AC/DC TERM |
252 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | AC/DC | 120V | 5mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 450mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|
5571442203FLED MINI PANEL YELLOW/BLUE 5V |
199 |
|
Datasheet | 557 | Bulk | Active | LED | Blue, Yellow | - | - | DC | 5V Blue, 5V Yellow | 16mA Blue, 16mA Yellow | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | Water Resistant | - |
|
5580201001FLED PANEL IND GRN DIFF SNAP-IN |
1,964 |
|
Datasheet | 558 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.16" (4.06mm) | 3mm, T-1 | Round with Domed Top | 16mcd | 563nm | - | - | - | - |
|
5592201001FLED PANEL GRN DIFF 2.1V SNAP-IN |
1,607 |
|
Datasheet | 559 | Bulk | Active | LED | Green | Green | Diffused | Vf (Typ), If (Max) | 2.1V | 25mA | Round | 0.25" (6.35mm) | 5mm, T-1 3/4 | Round with Domed Top | 10mcd | 563nm | 65° | PC Pin | - | - |
