Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6301504304F30MM FLT RD 24VDC W/TERM |
1,937 |
|
Datasheet | 630 | Bag | Active | LED | Red | - | - | DC | 24V | 46mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 3000mcd | - | - | Screw Terminal | - | - |
|
125041011103INDICATOR PANEL MOUNT BASE |
1,641 |
|
Datasheet | 125 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
658-2465-303FPMI, DOME, GB, 8-30VDC |
4,528 |
|
Datasheet | 658 | Bulk | Active | LED | Green, Blue | White | Diffused | DC | 12V ~ 30V | 20mA | Round | 1.26" (32.00mm) | 24.90mm Dia | Round with Domed Top | 1000mcd Red, 2100mcd Green, 400mcd Blue | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|
|
658-2495-303FPMI, DOME, RGY, 8-30VDC |
3,714 |
|
Datasheet | 658 | Bulk | Active | LED | Green, Yellow | White | Diffused | DC | 12V ~ 30V | 20mA | Round | 1.26" (32.00mm) | 24.90mm Dia | Round with Domed Top | 2100mcd Green, 1000mcd Yellow | - | - | Wire Leads - 6" (152.40mm) | IP67, NEMA 4X | - |
|

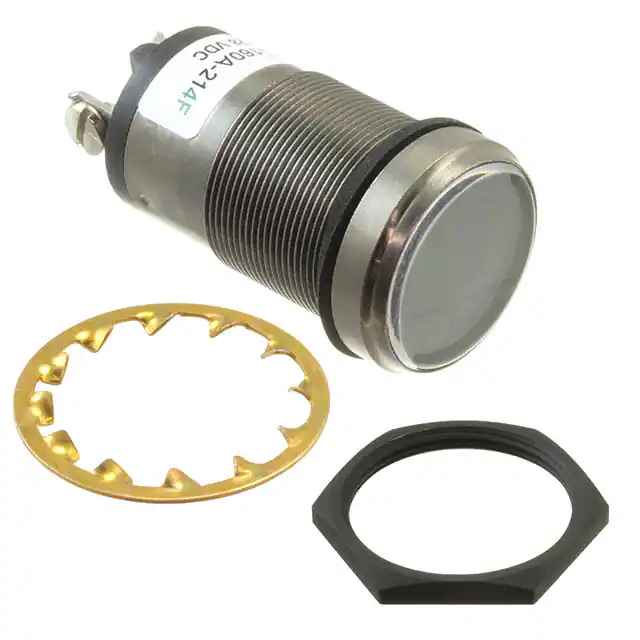

556160A214F1"FLAT GRN LED PMI CONST INT |
4,083 |
|
Datasheet | 556 | Bag | Active | LED | Green | Green | Clear | DC | 18V ~ 48V | 7.4mA | Round | 1.00" (25.4mm) | - | Round with Flat Top | 170mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
6301003304F30MM FLT WHITE 12VDC W/TERM |
2,139 |
|
Datasheet | 630 | Bag | Active | LED | White | - | - | DC | 12V | 60mA | Round | 1.18" (30.00mm) | - | Round with Flat Top | 4000mcd | - | - | Screw Terminal | - | - |
|
5561504314FLED 1" RED PMI 24V CLR FLAT LEN |
3,573 |
|
Datasheet | 556 | Bulk | Active | LED | Red | Colorless | Clear | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Flat Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563704304FLED PNL MT 1" 24V WT DOME YEL |
2,765 |
|
Datasheet | 556 | Bulk | Active | LED | Yellow | - | - | DC | 24V | 46mA | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|
5563507304FLED 1" DOME RED PMI 125VCD |
2,565 |
|
Datasheet | 556 | Bulk | Active | LED | Red | - | - | AC | 125V | - | Round | 1.12" (28.45mm) | - | Round with Domed Top | - | - | - | Screw Terminal | IP66, NEMA 4X | - |
|

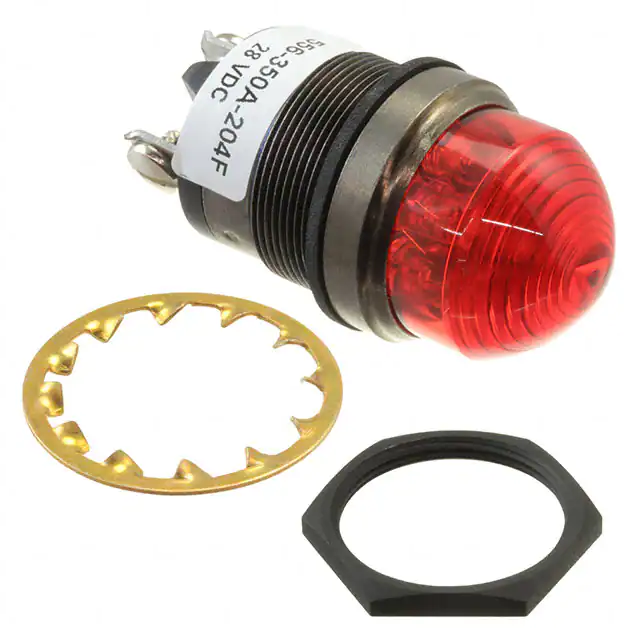

556350A204F1"DOME RED LED PMI CONST INT |
2,892 |
|
Datasheet | 556 | Bag | Active | LED | Red | Red | Clear | DC | 18V ~ 48V | 8.2mA | Round | 1.00" (25.4mm) | - | Round with Domed Top | 400mcd | - | - | Screw Terminal | IP66, NEMA 4X | - |
