Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6563206303FLED 1/2" DOME GRN 28VDC LEAD |
1,278 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | DC | 28V | 18mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 2110mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
6561209303FLED 1/2" FLAT GRN 230VAC LEAD |
4,281 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | AC | 230V | 3mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 450mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|

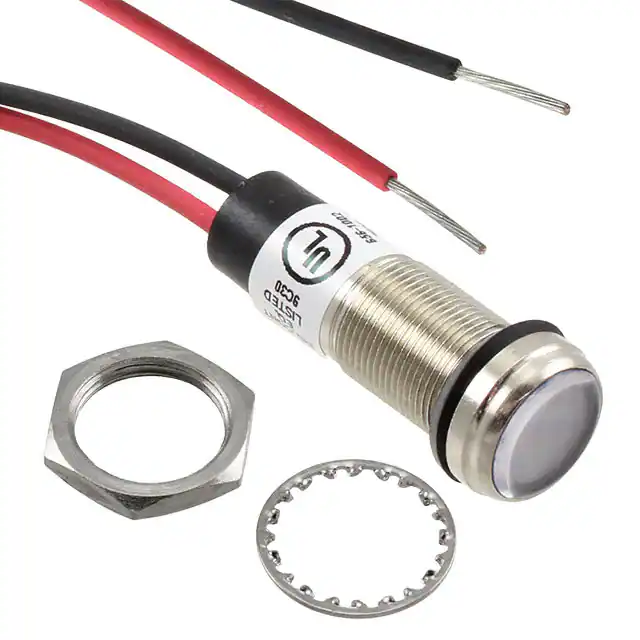

6561002303F1/2" FLT WHT 5VDC W/LEAD |
2,846 |
|
Datasheet | 656 | Bag | Active | LED | White | White | Clear | DC | 5V | 15mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 1510mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
6561107303F1/2" FLT RD 72VDC W/LEAD |
1,584 |
|
Datasheet | 656 | Bag | Active | LED | Red | Red | Clear | DC | 72V | 8.5mA | Round | 0.50" (12.70mm) | - | Round with Flat Top | 230mcd | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
6211143304F22MM FLTPMI RGY 12VDC W/TERM |
2,002 |
|
Datasheet | 621 | Bag | Active | LED | Red, Green, Yellow | - | Diffused | DC | 12V | 15mA Red, 15mA Green, 15mA Yellow | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 115mcd Red, 110mcd Green, 435mcd Yellow | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
6221103304F22MM FLTPMI RED 12VDC W/TERM |
4,836 |
|
Datasheet | 622 | Bag | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
|
6221104304F22MM FLTPMI RED 3VDC W/TERM |
2,758 |
|
Datasheet | 622 | Bag | Active | LED | Red | - | - | DC | 24V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
6221203304F22MM FLTPMI GRN 6VDC W/TERM |
3,700 |
|
Datasheet | 622 | Bag | Active | LED | Green | - | - | DC | 12V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 250mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
6221401304F22MM FLTPMI BL 24VDC W/TERM |
4,514 |
|
Datasheet | 622 | Bag | Active | LED | Blue | - | - | DC | 3V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 300mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
|
6221304304F22MM FLTPMI YLW 12VDC W/TERM |
3,730 |
|
Datasheet | 622 | Bag | Active | LED | Yellow | - | - | DC | 24V | 15mA | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 350mcd | - | - | Screw Terminal | IP66/IP67, NEMA 4X | - |
