Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6541403103F1/2" FLT SNAP BL 12VDC W/LEADS |
3,425 |
|
Datasheet | 654 | Bag | Active | LED | Blue | - | - | DC | 12V | 20mA | Round | 0.66" (16.70mm) | 16.35mm Dia | Round with Domed Top | 390mcd | - | - | Wire Leads - 4.8" (121.92mm) | - | - |
|

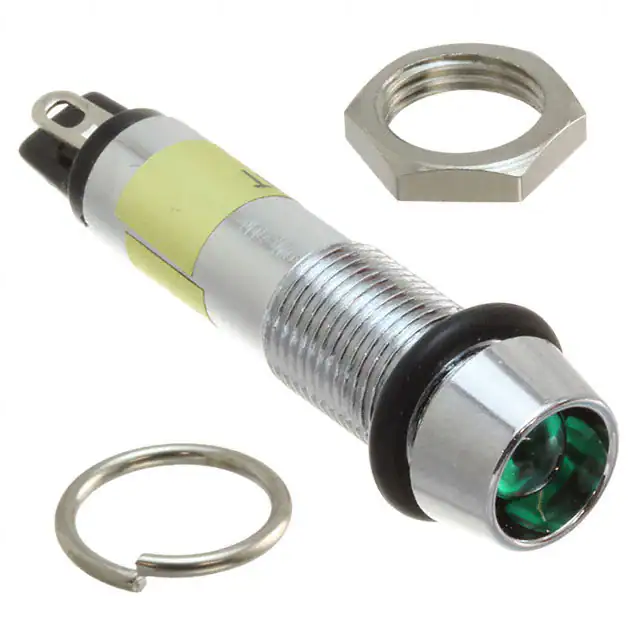

6792212332F9MM HG/G PMI-12VDC W/O-RING |
1,263 |
|
Datasheet | 679 | Bag | Active | LED | Green | - | - | DC | 12V | 30mA | Round | 0.37" (9.40mm) | - | - | 5870mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
6792412334F9MM HB/B PMI-12VDC W/O-RING |
3,076 |
|
Datasheet | 679 | Bag | Active | LED | Blue | - | - | DC | 12V | 30mA | Round | 0.37" (9.40mm) | - | - | 270mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
6091322130FLED PNL MT 9MM 12V BLACK YELLOW |
1,277 |
|
Datasheet | 609 | Bag | Active | LED | Yellow | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | 6.10mm Dia | Round with Domed Top | 90mcd | - | - | - | IP66, NEMA 4X | - |
|
6781431114F8MM HB/B PMI 3.3VFTYP W/ORES |
4,316 |
|
Datasheet | 678 | Bag | Active | LED | Blue | - | - | DC | 3.3V | 30mA | Round | 0.32" (8.13mm) | - | - | 7100mcd | - | 4° | Solder Lug | - | - |
|

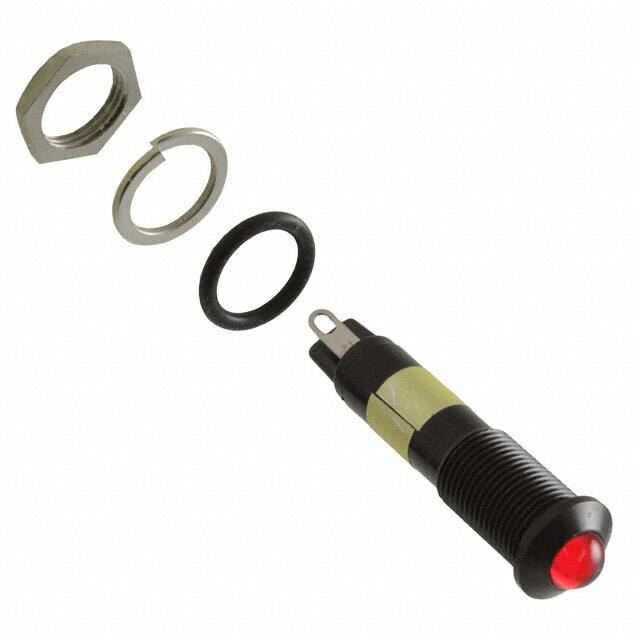

6091122330FLED 9MM PMI R 12V BLK HS W GASKT |
1,856 |
|
Datasheet | 609 | Bulk | Active | LED | Red | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | 6.00mm Dia | Round with Domed Top | 60mcd | - | - | - | IP66, NEMA 4X | - |
|
6772112321F7MM HR/R PMI-6VDC W/O-RING |
4,749 |
|
Datasheet | 677 | Bag | Active | LED | Red | - | - | DC | 6V | 30mA | Round | 0.28" (7.11mm) | - | - | 925mcd | - | - | Solder Lug | IP66, NEMA 4X | - |
|
6092222330FLED 9MM PMI G 12V BLK HS W GASKT |
2,281 |
|
Datasheet | 609 | Bulk | Active | LED | Green | - | - | DC | 12V | 15mA | Round | 0.37" (9.40mm) | - | Round with Flat Top | 110mcd | - | - | - | IP66, NEMA 4X | - |
|
24980713333504FLED PANEL IND YLW 14V CYLINDER |
3,127 |
|
Datasheet | 249 | Bulk | Active | LED | Yellow | - | - | Vf (Typ), If (Max) | 14V | 20mA | Round | 0.38" (9.65mm) | 7.10mm Dia | Round with Flat Top | 75mcd | - | - | Wire Wrap | - | - |
|
6563207304F1/2" DOM GN 72VDC W/TERM |
4,400 |
|
Datasheet | 656 | Bag | Active | LED | Green | Green | Clear | DC | 72V | 8.5mA | Round | 0.50" (12.70mm) | - | Round with Domed Top | 800mcd | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
