Panel Indicators, Pilot Lights
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Lamp Color | Lens Color | Lens Transparency | Ratings | Voltage | Current | Panel Cutout Shape | Panel Cutout Dimensions | Lens Size | Lens Style | Millicandela Rating | Wavelength - Peak | Viewing Angle | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6211141314F22MM FLTPMI RGY CLRLN 3VDC |
2,832 |
|
Datasheet | 621 | Bag | Active | LED | Red, Green, Yellow | - | Clear | DC | 3V | 15mA Red, 15mA Green, 15mA Yellow | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 115mcd Red, 110mcd Green, 435mcd Yellow | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
6561122304F1/2" FLT R/G 5VDC W/TERM |
1,409 |
|
Datasheet | 656 | Bag | Active | LED | Green, Red | - | Clear | DC | 5V | 8mA Green, 11mA Red | Round | 0.50" (12.70mm) | - | Round with Flat Top | 910mcd Green, 330mcd Red | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|

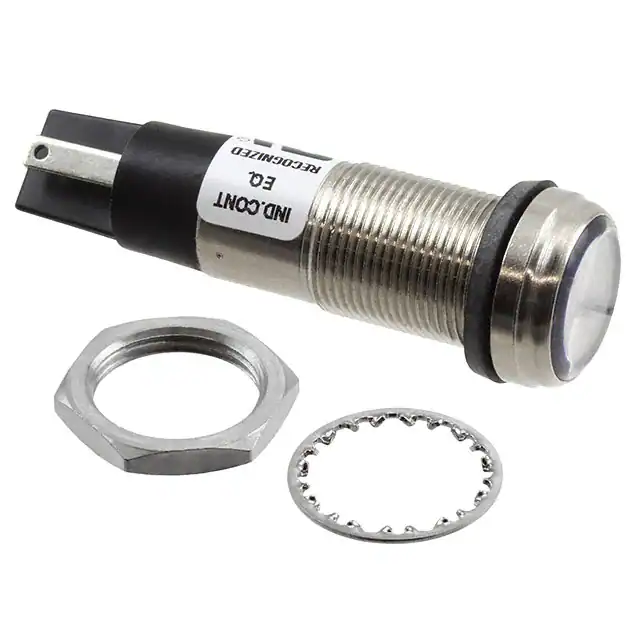

6561124304F1/2" FLT R/G 24VDC W/TERM |
2,283 |
|
Datasheet | 656 | Bag | Active | LED | Green, Red | - | Clear | DC | 24V | 10mA Green, 11mA Red | Round | 0.50" (12.70mm) | - | Round with Flat Top | 910mcd Green, 330mcd Red | - | - | Quick Connect | IP66/IP67, NEMA 4X | - |
|
6561322303F1/2" FLT Y/G 5VDC W/LEAD |
1,799 |
|
Datasheet | 656 | Bag | Active | LED | Green, Yellow | - | Clear | DC | 5V | 8mA Green, 11mA Yellow | Round | 0.50" (12.70mm) | - | Round with Flat Top | 864mcd Green, 320mcd Yellow | - | - | Wire Leads - 5.84" (148.21mm) | IP66/IP67, NEMA 4X | - |
|
5087545504HOLDER W/COLLAR SOLDER CUPS |
1,980 |
|
Datasheet | 508 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5571422203FLED PNL MT BI-COLOR RED/BLUE 5V |
1,927 |
|
Datasheet | 557 | Bulk | Active | LED | Blue, Red | - | - | DC | 5V Blue, 5V Red | 16mA Blue, 16mA Red | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | - | - |
|
5571432203FLED PNL MT BI-COLOR YLW/GRN 5V |
1,519 |
|
Datasheet | 557 | Bulk | Active | LED | Green, Yellow | - | - | DC | 5V Green, 5V Yellow | 16mA Green, 16mA Yellow | Round | 0.69" (17.53mm) | 17.80mm Dia | Round with Flat Top | - | - | - | Wire Leads - 0.50" (12.70mm) | - | - |
|

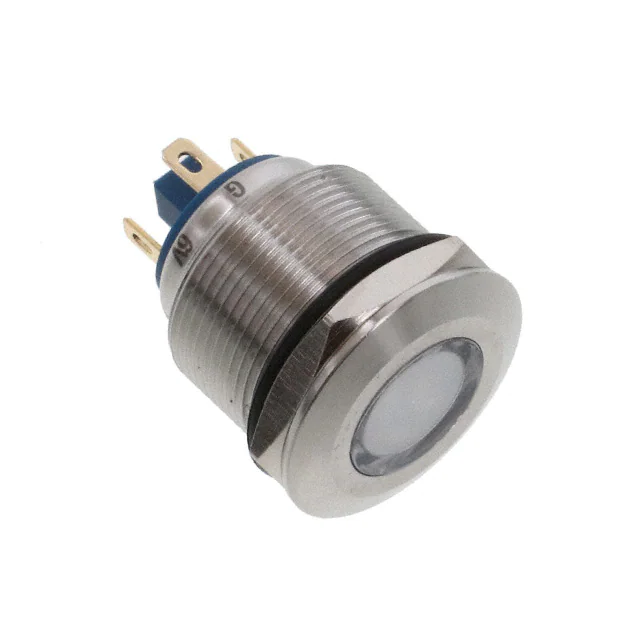

6211122304F22MM FLTPMI RGB 6VDC W/TERM |
4,197 |
|
Datasheet | 621 | Bag | Active | LED | Red, Green, Blue (RGB) | - | Diffused | DC | 6V | 15mA Red, 15mA Green, 15mA Blue | Round | 0.87" (22.00mm) | 13.80mm Dia | Round with Flat Top | 200mcd Red, 250mcd Green, 300mcd Blue | - | - | Solder Lug | IP66/IP67, NEMA 4X | - |
|
101843009203LED BASE SUBMINI PANEL INDICATOR |
2,987 |
|
Datasheet | 101 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
24978411433574PMI NEON DATALITE RED 100K CYL |
2,397 |
|
Datasheet | 249 | Bulk | Active | Neon | - | Amber | - | AC/DC | 105V ~ 125V | - | Round | 0.38" (9.65mm) | 7.11mm Dia | Round with Flat Top | - | - | - | - | - | - |
