Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB2-F76-E2-0.5MINDUCTIVE DC |
3,705 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Polycarbonate (PC) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB2-F76-E3-0.5MINDUCTIVE DC |
2,884 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | PNP-NC, 3-Wire | - | Unshielded | Polycarbonate (PC) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB2-F76-E0-0.5MINDUCTIVE DC |
2,309 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Polycarbonate (PC) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

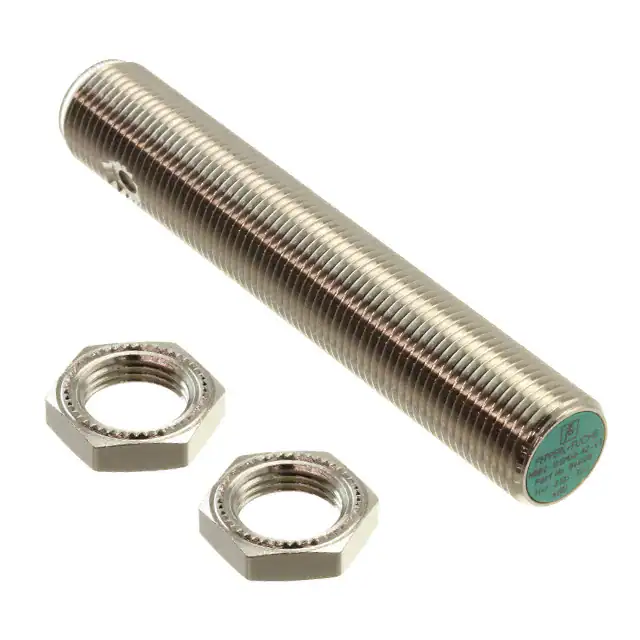

NBB2-12GM60-A2-V1INDUCTIVE SEN 2MM PNP |
4,681 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Obsolete | Inductive | 0.079" (2mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

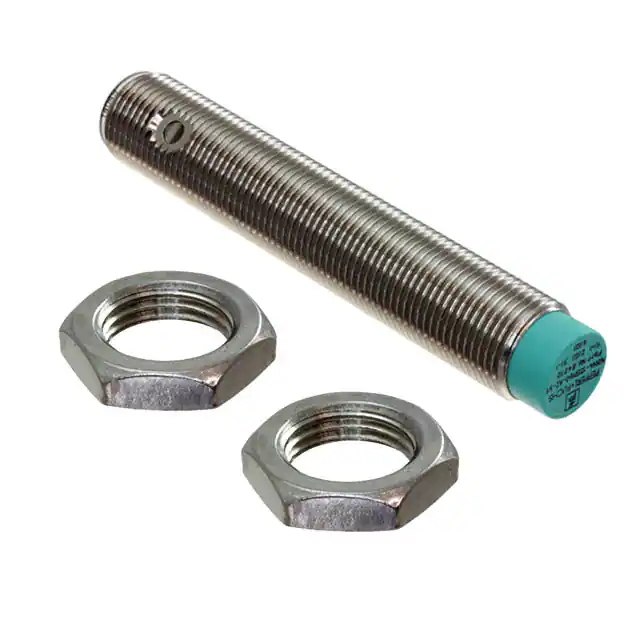

NBN4-12GM60-A2-V1INDUCTIVE SEN 4MM PNP |
3,246 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Obsolete | Inductive | 0.157" (4mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
|
NBB5-18GM50-A2SENSOR PROX INDUCTIVE 5MM CYLIND |
4,906 |
|
Datasheet | - | Cylinder, Threaded - M18 | Bulk | Active | Inductive | 0.197" (5mm) | PNP, 4-Wire | - | Unshielded | Brass | 5V ~ 36V | Cable Leads | -40°C ~ 85°C | IP68 | LED |
|
|
NJ2-V3-N-V5INDUCTIVE NAMUR |
3,480 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | NAMUR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Connector | -25°C ~ 100°C | IP67 | No Indicator |
|
|
NBB1.5-F79-E1INDUCTIVE DC |
3,018 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.059" (1.5mm) | NPN-NC, 3-Wire | - | Unshielded | Polyamide (PA) | 5V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBB1.5-F79-E3INDUCTIVE DC |
4,618 |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
NBB1.5-F79-E2INDUCTIVE DC |
1,036 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.059" (1.5mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 5V ~ 30V | Cable | -25°C ~ 70°C | IP67 | No Indicator |
