DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAL5F24LHFAN BLOWER 76X28MM 24VDC WIRE |
1,689 |
|
Datasheet | FAL-5F | - | Obsolete | 24VDC | Square/Rounded - 76mm L x 76mm H | 28.00mm | 10.6 CFM (0.297m³/min) | 0.382 in H2O (95.1 Pa) | Hydro-wave (HWB) | Blower | - | 36.0dB | 2.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.22 lb (99.79 g) |
|

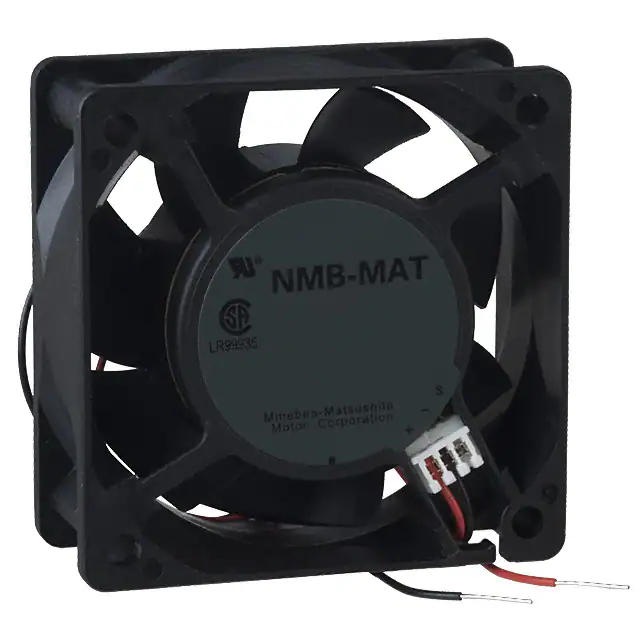

FBA06A12M1AFAN AXIAL 60X25.5MM 12VDC WIRE |
4,745 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 16.6 CFM (0.465m³/min) | 0.155 in H2O (38.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.44 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
FBA06A24M1AFAN AXIAL 60X25.5MM 24VDC WIRE |
1,657 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 16.6 CFM (0.465m³/min) | 0.155 in H2O (38.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.68 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

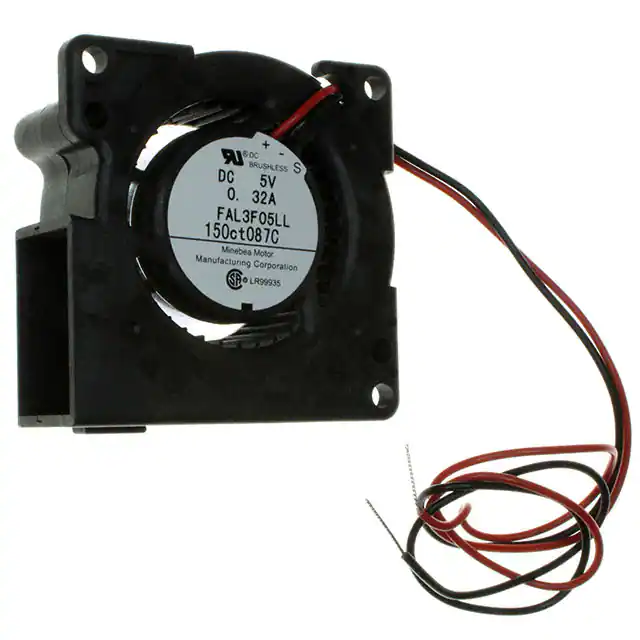

FAL3F05LLFAN BLOWER 50X20MM 5VDC WIRE |
1,049 |
|
Datasheet | FAL-3F | - | Obsolete | 5VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 3.9 CFM (0.109m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Blower | - | 28.5dB | 1.64 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|

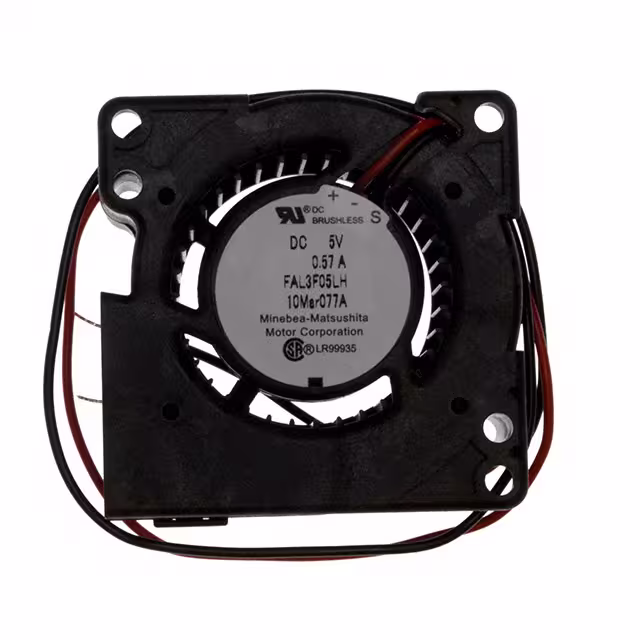

FAL3F05LHFAN BLOWER 50X20MM 5VDC WIRE |
3,274 |
|
Datasheet | FAL-3F | - | Obsolete | 5VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Blower | - | 36.0dB | 1.9 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|
FAL3F12LLFAN BLOWER 50X20MM 12VDC WIRE |
4,227 |
|
Datasheet | FAL-3F | - | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 3.9 CFM (0.109m³/min) | 0.319 in H2O (79.5 Pa) | Ball | Blower | - | 28.5dB | 1.33 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|
FAL3F12LHFAN BLOWER 50X20MM 12VDC WIRE |
2,311 |
|
Datasheet | FAL-3F | - | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Blower | - | 35.0dB | 2.22 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|

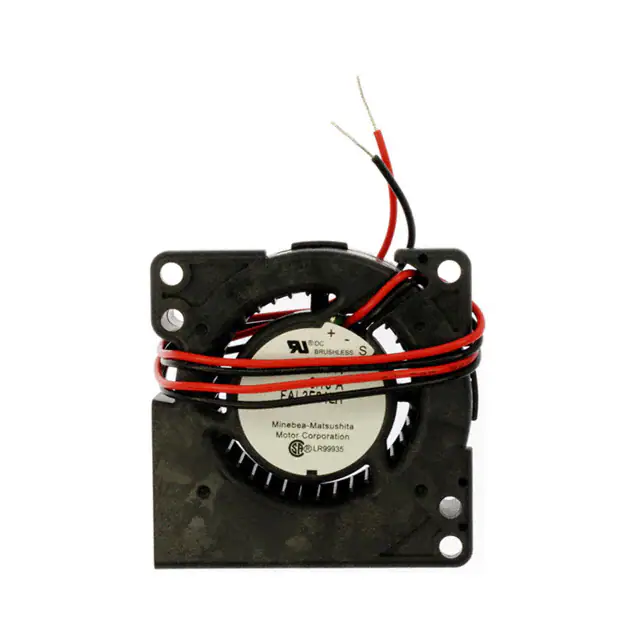

FAL3F24LHFAN BLOWER 50X20MM 24VDC WIRE |
1,875 |
|
Datasheet | FAL-3F | - | Obsolete | 24VDC | Square/Rounded - 50mm L x 50mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.606 in H2O (151.0 Pa) | Ball | Blower | - | 35.0dB | 2.52 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.088 lb (39.92 g) |
|

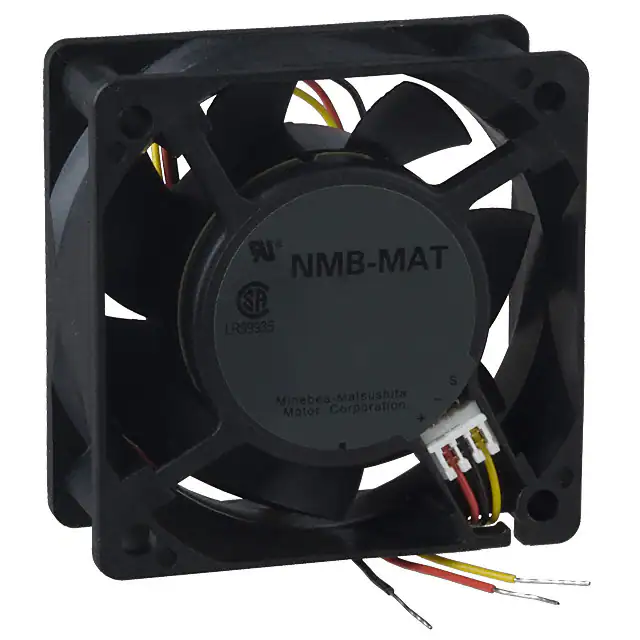

FBA06A12H1BXFAN AXIAL 60X25.5MM 12VDC WIRE |
1,443 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 1.86 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

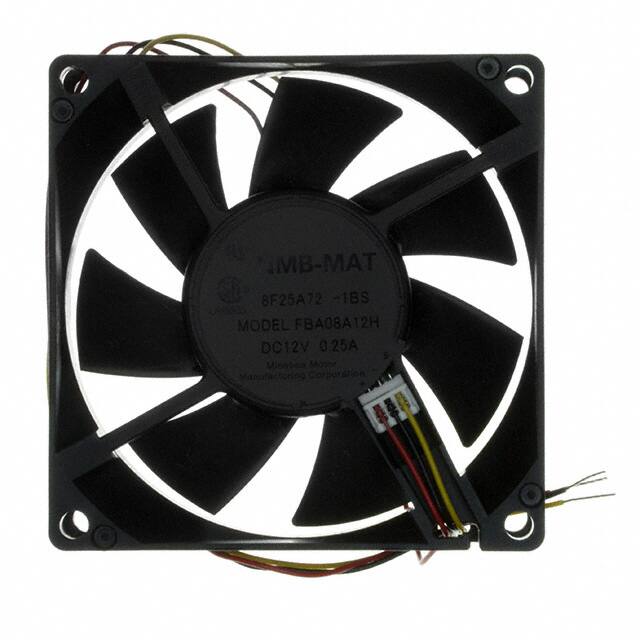

FBA08A12H1BSFAN AXIAL 80X25.5MM 12VDC WIRE |
4,588 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 32.0dB | 2.08 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
