DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FBA09A12L1AFAN AXIAL 92X25.5MM 12VDC WIRE |
2,481 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 27.0dB | 1.32 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A12M1AFAN AXIAL 92X25.5MM 12VDC WIRE |
1,821 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 1.8 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A12H1AFAN AXIAL 92X25.5MM 12VDC WIRE |
4,662 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 2.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

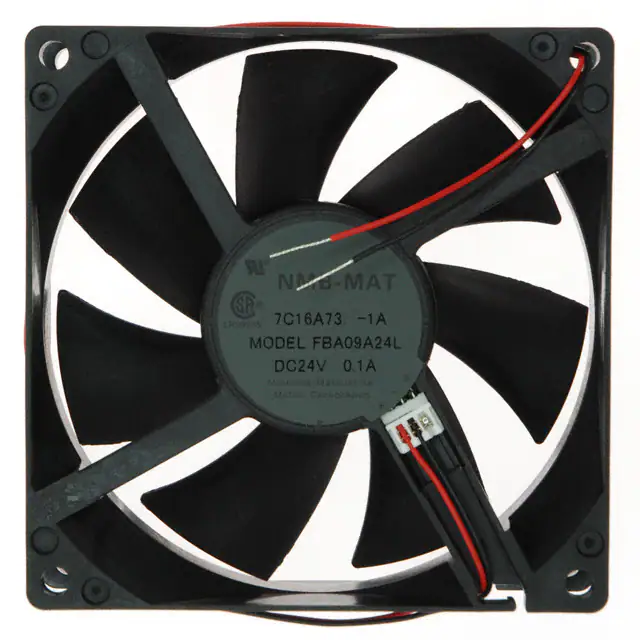

FBA09A24L1AFAN AXIAL 92X25.5MM 24VDC WIRE |
4,848 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 27.0dB | 1.92 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A24M1AFAN AXIAL 92X25.5MM 24VDC WIRE |
1,256 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 48.0 CFM (1.34m³/min) | 0.118 in H2O (29.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.64 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A24H1AFAN AXIAL 92X25.5MM 24VDC WIRE |
2,735 |
|
Datasheet | FBA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 3.36 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12L1AFAN AXIAL 120X38MM 12VDC WIRE |
4,909 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 68.9 CFM (1.93m³/min) | 0.130 in H2O (32.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.04 W | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

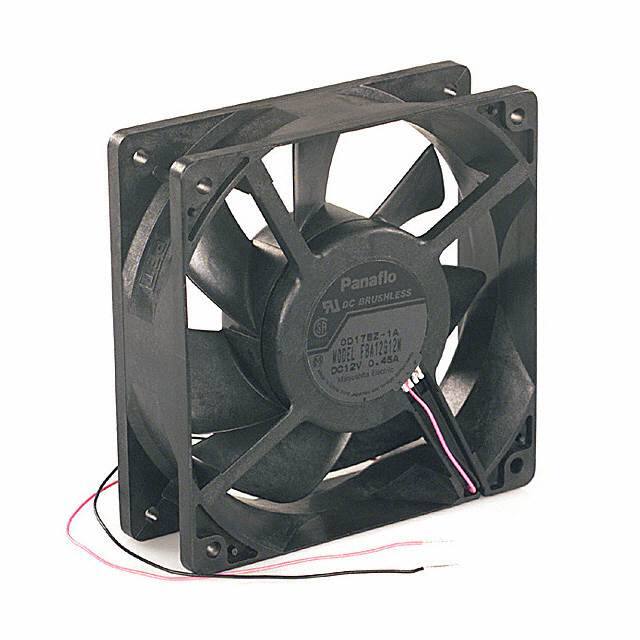

FBA12G12M1AFAN AXIAL 120X38MM 12VDC WIRE |
3,341 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 86.5 CFM (2.42m³/min) | 0.189 in H2O (47.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.5dB | 3.36 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G12H1AFAN AXIAL 120X38MM 12VDC WIRE |
4,977 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 41.5dB | 4.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G24L1AFAN AXIAL 120X38MM 24VDC WIRE |
1,864 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 68.9 CFM (1.93m³/min) | 0.130 in H2O (32.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 30.0dB | 2.3 W | 1700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
