DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FBA09A12H1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
1,615 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 35.0dB | 2.7 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

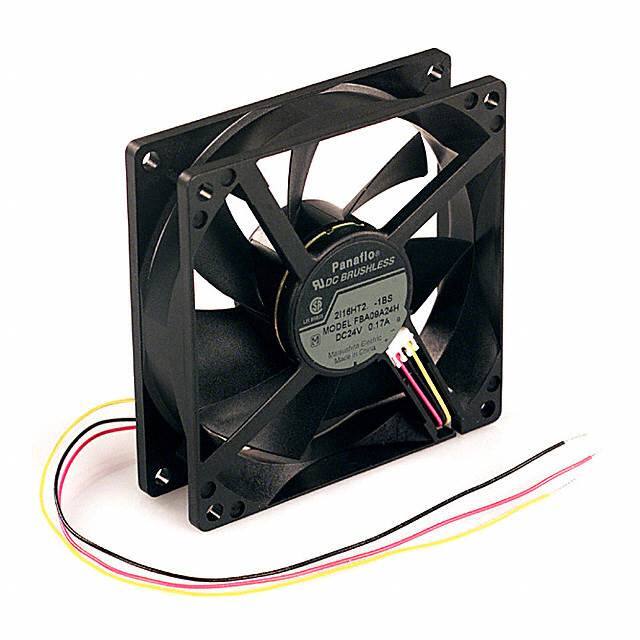

FBA09A24H1BSFAN AXIAL 92X25.5MM 24VDC WIRE |
1,311 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 35.0dB | 3.36 W | 2900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12H1BXFAN AXIAL 120X38MM 12VDC WIRE |
4,709 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 41.5dB | 4.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

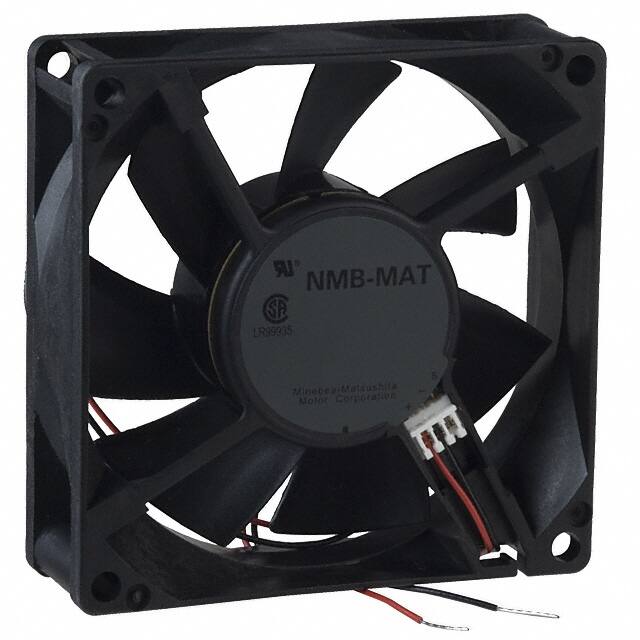

FBA08A12L1AZFAN AXIAL 80X25.5MM 12VDC WIRE |
2,613 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 21.0dB | 820 mW | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA08A12H1AZFAN AXIAL 80X25.5MM 12VDC WIRE |
1,940 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.08 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA09A12H1AZFAN AXIAL 92X25.5MM 12VDC WIRE |
4,861 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 35.0dB | 2.7 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12H1AZFAN AXIAL 120X38MM 12VDC WIRE |
1,485 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 41.5dB | 4.44 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
FBA09A12L1BSFAN AXIAL 92X25.5MM 12VDC WIRE |
3,841 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 27.0dB | 1.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|

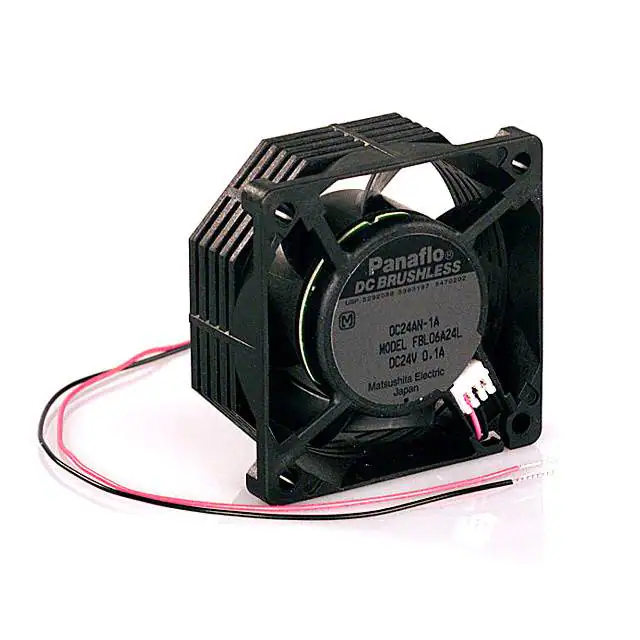

FBL06A24L1AFAN AXIAL 60X25.5MM 24VDC WIRE |
1,752 |
|
Datasheet | FBL | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.132 lb (59.87 g) |
|

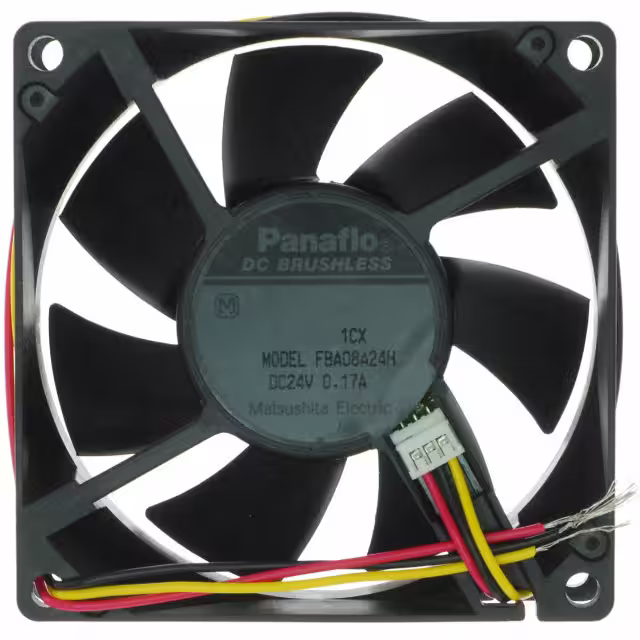

FBA08A24H1CXFAN AXIAL 80X25.5MM 24VDC WIRE |
4,238 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 32.0dB | 2.52 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
