DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAL6F12LHSFAN BLOWER 109X28.1MM 12VDC WIRE |
2,933 |
|
Datasheet | FAL-6F | - | Obsolete | 12VDC | Rectangular/Rounded - 109mm L x 111.4mm H | 28.10mm | 23.0 CFM (0.644m³/min) | 0.453 in H2O (112.8 Pa) | Hydro-wave (HWB) | Blower | Locked Rotor Sensor | 45.0dB | 6 W | 2550 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.551 lb (249.93 g) |
|
FBA06A12L1BXFAN AXIAL 60X25.5MM 12VDC WIRE |
4,950 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 24.0dB | 1.2 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

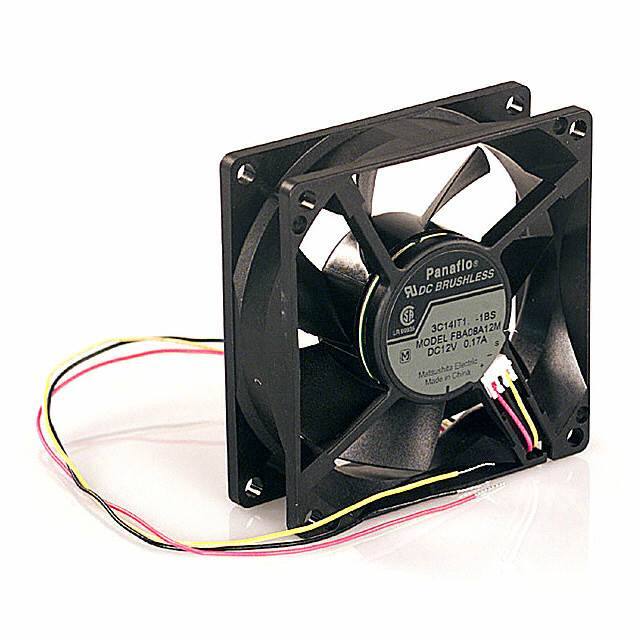

FBA08A12M1BSFAN AXIAL 80X25.5MM 12VDC WIRE |
2,953 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.49 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|

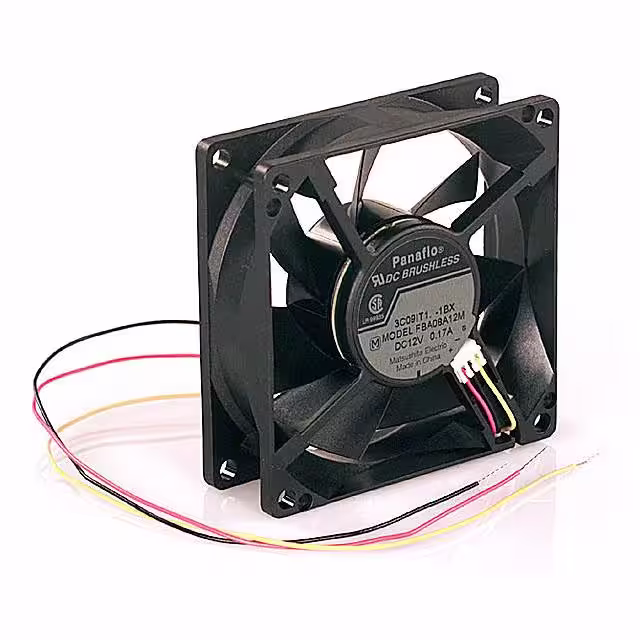

FBA08A12M1BXFAN AXIAL 80X25.5MM 12VDC WIRE |
2,916 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 28.0dB | 1.49 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA09A12H1BOFAN AXIAL 92X25.5MM 12VDC WIRE |
4,722 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 56.8 CFM (1.59m³/min) | 0.169 in H2O (42.1 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 35.0dB | 2.7 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA09A12L1BXFAN AXIAL 92X25.5MM 12VDC WIRE |
1,864 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 42.7 CFM (1.20m³/min) | 0.102 in H2O (25.5 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 27.0dB | 1.32 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
|
FBA09A12U1BOFAN AXIAL 92X25.5MM 12VDC WIRE |
2,152 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.50mm | 68.8 CFM (1.93m³/min) | 0.197 in H2O (49.0 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 43.0dB | 5.16 W | 3450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.243 lb (110.22 g) |
|
FBA12G12H1BSFAN AXIAL 120X38MM 12VDC WIRE |
4,170 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Locked Rotor Sensor | 41.5dB | 4.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|
|
FBA12G24H1BXFAN AXIAL 120X38MM 24VDC WIRE |
1,394 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 103.8 CFM (2.91m³/min) | 0.268 in H2O (66.7 Pa) | Hydro-wave (HWB) | Tubeaxial | Speed Sensor (Tach) | 41.5dB | 4.8 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.595 lb (269.89 g) |
|

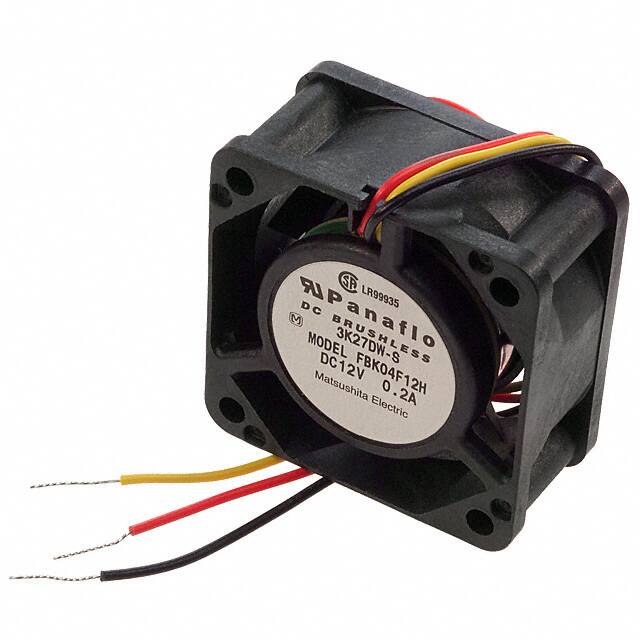

FBK04F12HSFAN AXIAL 40X20MM 12VDC WIRE |
1,463 |
|
Datasheet | FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.7 CFM (0.188m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 1.8 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
