DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

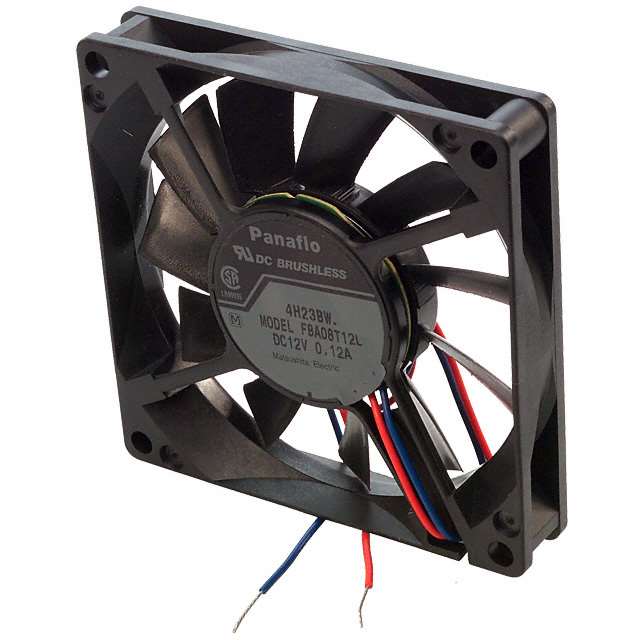

FBA08T12LFAN AXIAL 80X15MM 12VDC WIRE |
1,154 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 21.9 CFM (0.613m³/min) | 0.061 in H2O (15.2 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 23.0dB | 950 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|
FBA08T12HFAN AXIAL 80X15MM 12VDC WIRE |
1,349 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.126 in H2O (31.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 34.0dB | 2.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|

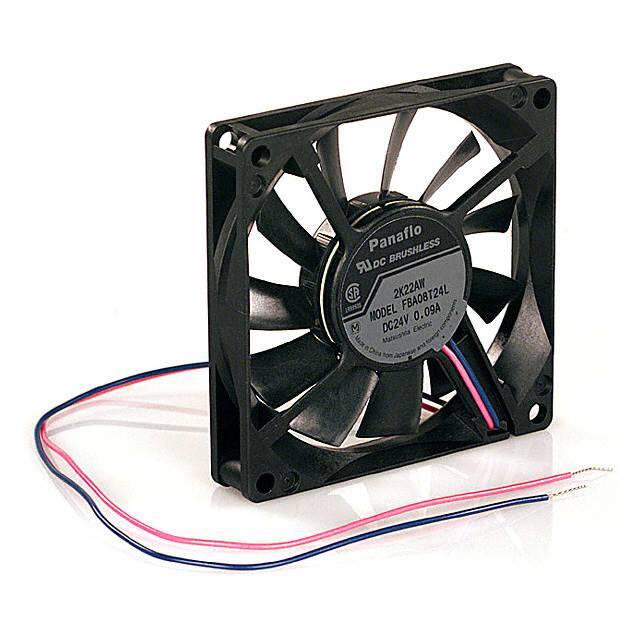

FBA08T24LFAN AXIAL 80X15MM 24VDC WIRE |
2,285 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.9 CFM (0.613m³/min) | 0.061 in H2O (15.2 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 23.0dB | 1.13 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|

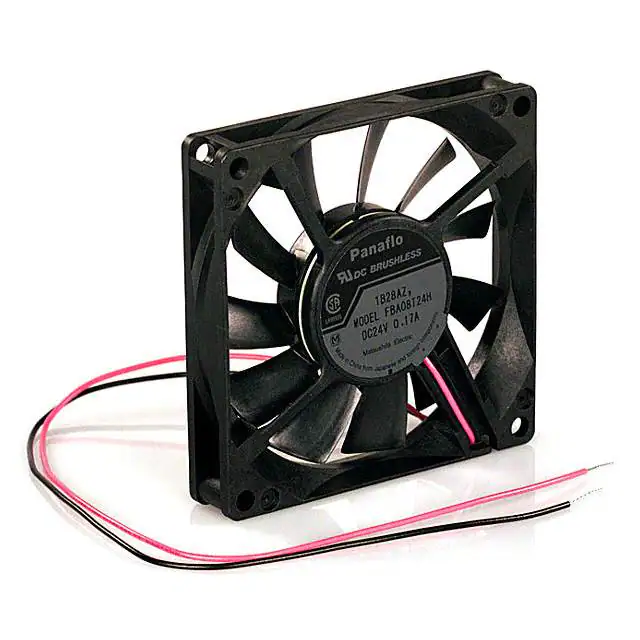

FBA08T24HFAN AXIAL 80X15MM 24VDC WIRE |
2,376 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.126 in H2O (31.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 34.0dB | 2.64 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|
FBA08A12L1AFAN AXIAL 80X25.5MM 12VDC WIRE |
4,028 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 21.0dB | 820 mW | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA08A12M1AFAN AXIAL 80X25.5MM 12VDC WIRE |
4,012 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.49 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA08A12H1AFAN AXIAL 80X25.5MM 12VDC WIRE |
2,975 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.08 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
|
FBA08A24L1AFAN AXIAL 80X25.5MM 24VDC WIRE |
1,840 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 21.0dB | 1.3 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|

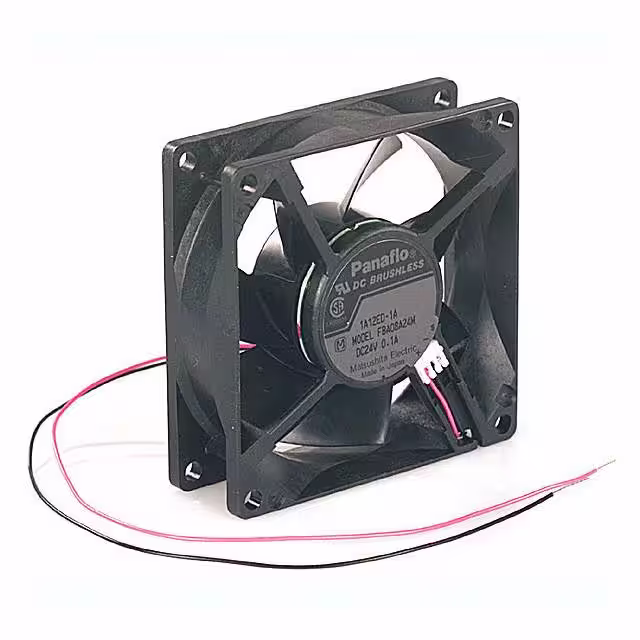

FBA08A24M1AFAN AXIAL 80X25.5MM 24VDC WIRE |
3,276 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.7 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
|
FBA08A24H1AFAN AXIAL 80X25.5MM 24VDC WIRE |
1,862 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.52 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
