DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

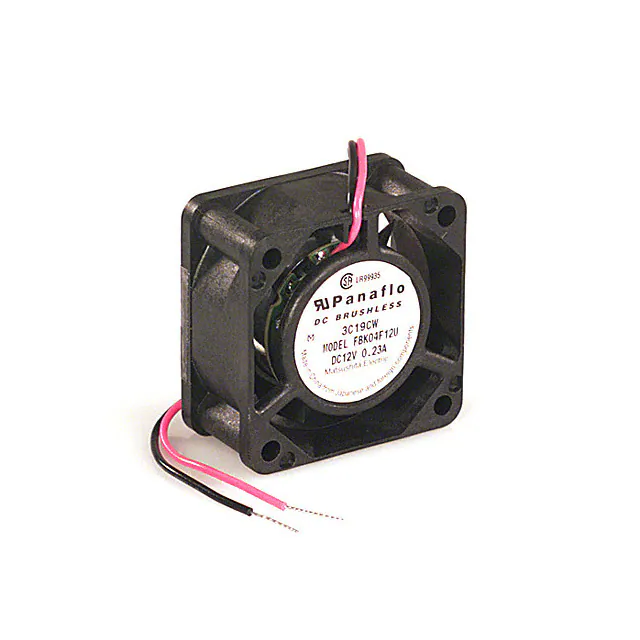

FBK04F12UFAN AXIAL 40X20MM 12VDC WIRE |
2,091 |
|
Datasheet | FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 2.04 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|
FAL5F12LHFAN BLOWER 76X28MM 12VDC WIRE |
3,806 |
|
Datasheet | FAL-5F | - | Obsolete | 12VDC | Square/Rounded - 76mm L x 76mm H | 28.00mm | 10.6 CFM (0.297m³/min) | 0.393 in H2O (98.0 Pa) | Hydro-wave (HWB) | Blower | - | 36.0dB | 2.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA06T12LFAN AXIAL 60X15MM 12VDC WIRE |
3,756 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.110 in H2O (27.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.06 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
|
FBA06T12HFAN AXIAL 60X15MM 12VDC WIRE |
2,363 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 16.6 CFM (0.465m³/min) | 0.187 in H2O (46.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.74 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
|
FBA06T24LFAN AXIAL 60X15MM 24VDC WIRE |
3,546 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.110 in H2O (27.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.34 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
|
FBA06T24HFAN AXIAL 60X15MM 24VDC WIRE |
1,643 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.6 CFM (0.465m³/min) | 0.187 in H2O (46.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.99 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
FBA06A12L1AFAN AXIAL 60X25.5MM 12VDC WIRE |
4,578 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.2 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
FBA06A12H1AFAN AXIAL 60X25.5MM 12VDC WIRE |
4,961 |
|
Datasheet | FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.86 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
FBA06A24L1AFAN AXIAL 60X25.5MM 24VDC WIRE |
2,071 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
|
FBA06A24H1AFAN AXIAL 60X25.5MM 24VDC WIRE |
2,473 |
|
Datasheet | FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.04 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
